1-22
UX-L40R/UX-L30R
Remove the head amplifier & mechanism control P.C.
board.
Remove the main motor assembly.
After turning over the cassette mechanism, remove
the two slit washers and fixing the capstan shafts R
and L, and pull out the flywheel (R) and (L)
respectively from behind the cassette mechanism.
1.
2.
3.

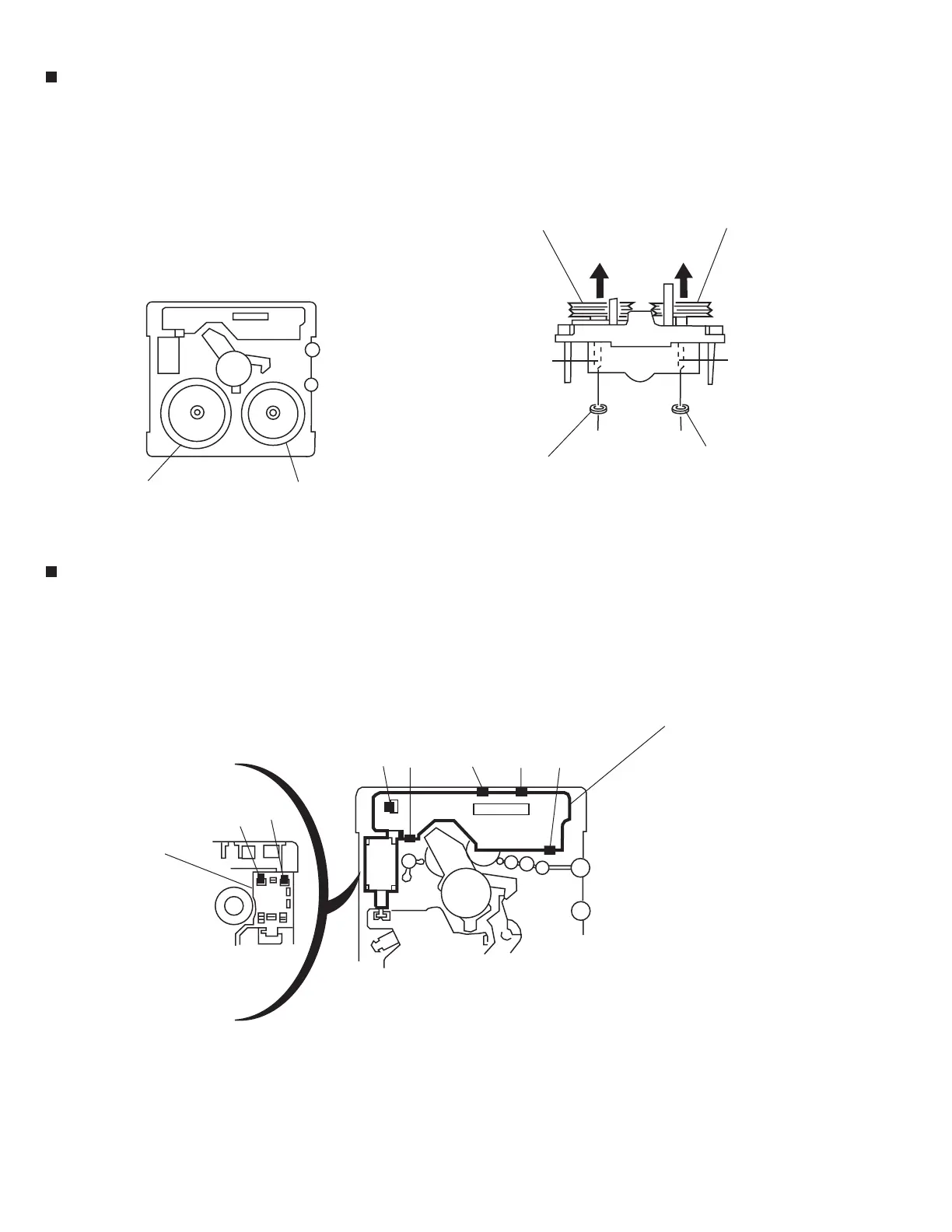

Removing the flywheel (See Fig. 7, 8)
Remove the five pawls a to e reattaining the reel
pulse board.
From the surface of the reel pulse board parts,
remove the two pawls f and g retaining the solenoid.
1.
2.
Removing the reel pulse P.C. board and
solenoid (See Fig. 9)
Flywheel (R) Flywheel (L)
Capstan shaft (R)
Capstan shaft (L)
Slit washer
Slit washer
Fig. 8
Flywheel R Flywheel L
Fig. 9
Reel pulse board
Fig. 7
Solenoid
a b c d e
f
g
