JVC UX-M3R Service Manual

UX-M3R
1-16
Fig.1 Head output signal
Adjustment
Head
max
Azimuth adjustment screw
CASSETTE MOTOR
Tape Speed Adj.
+
-

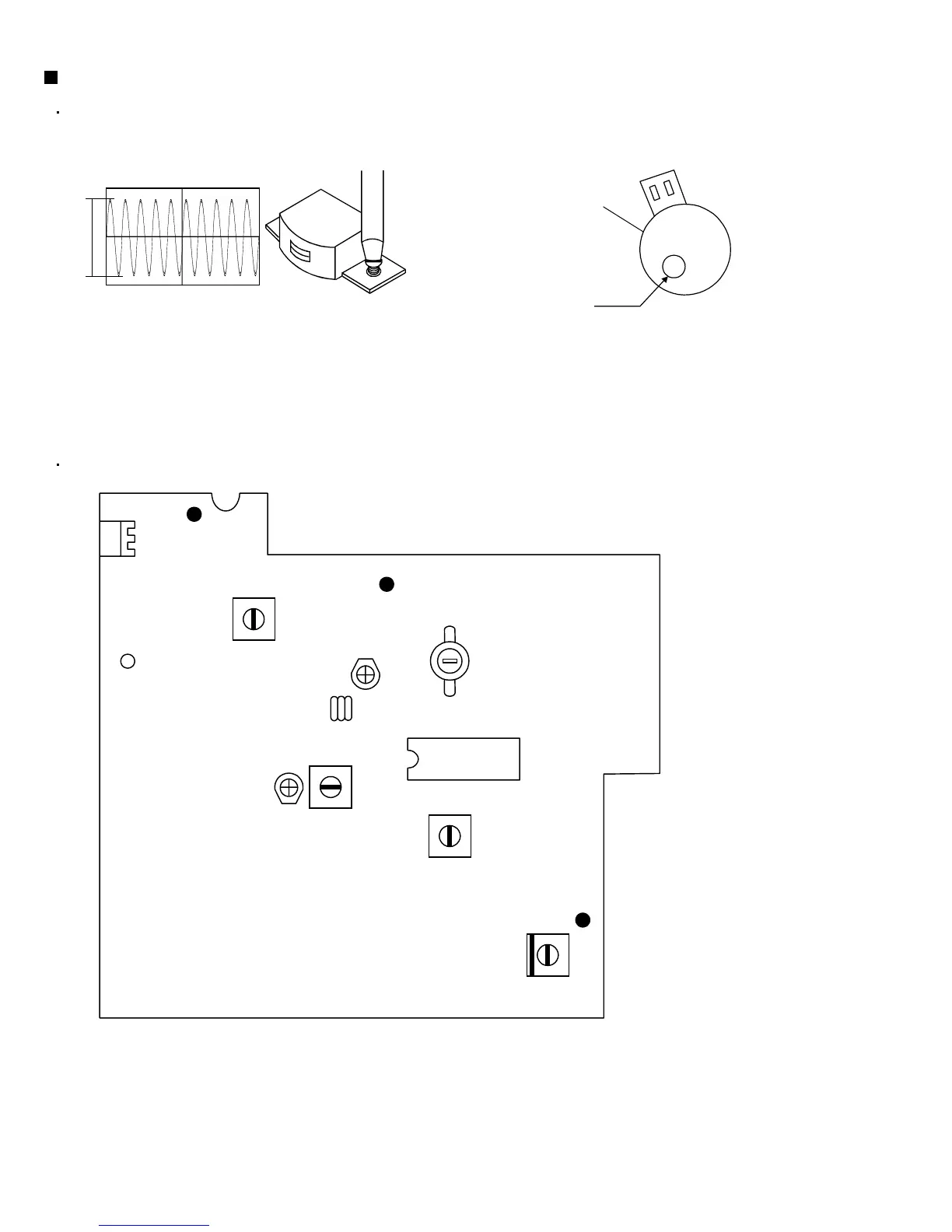

Location of adjusting parts
Cassette mechanism section
Fig.2
Main board
TA2104
(FM OSC)
P102
(FM VT)
(FM RF)
(FM RF)
(AM RF)
(AM RF)
(AM IF)
(BIAS FREQUENCY ADJ.)
P207
(BIAS FREQUENCY)
P101
(AM VT)
FM ANT
(AM ANT)
(AM OSC)
CN101
L101
TC101
L106
L105
IC101
TC102
L102
T101
L203
Fig.3

JVC UX-M3R Specifications

Amplifier Specifications

output power	24 W (12 W + 12 W) at 8 Ω (MAX.)
output power at THD	20 W (10 W + 10 W) at 8 Ω (10% THD)
audio output level	800 mV/32 Ω
speakers impedance	8 Ω - 16 Ω

Tuner Specifications

FM tuning range	87.50 MHz - 108.00 MHz
MW tuning range	522 kHz - 1 629 kHz

CD Player Specifications

dynamic range	60 dB
signal-to-noise ratio	60 dB
wow and flutter	Unmeasurable

Cassette Deck Specifications

frequency response for normal tape	100 Hz - 10 000 Hz
wow and flutter	0.35% (WRMS)

General Specifications

power requirement	AC 240 V, 50 Hz
power consumption (operation mode)	30 W
power consumption (standby mode)	1.5 W
dimensions	160 mm × 269.5 mm × 300 mm
mass	4.3 kg

Speaker Specifications

speaker unit (woofer)	10.2 cm cone × 1
speaker unit (tweeter)	5.1 cm cone × 1
impedance	8 Ω
dimensions	160 mm × 269.5 mm × 192 mm
mass	2 kg/each
