(No.MB049)1-15

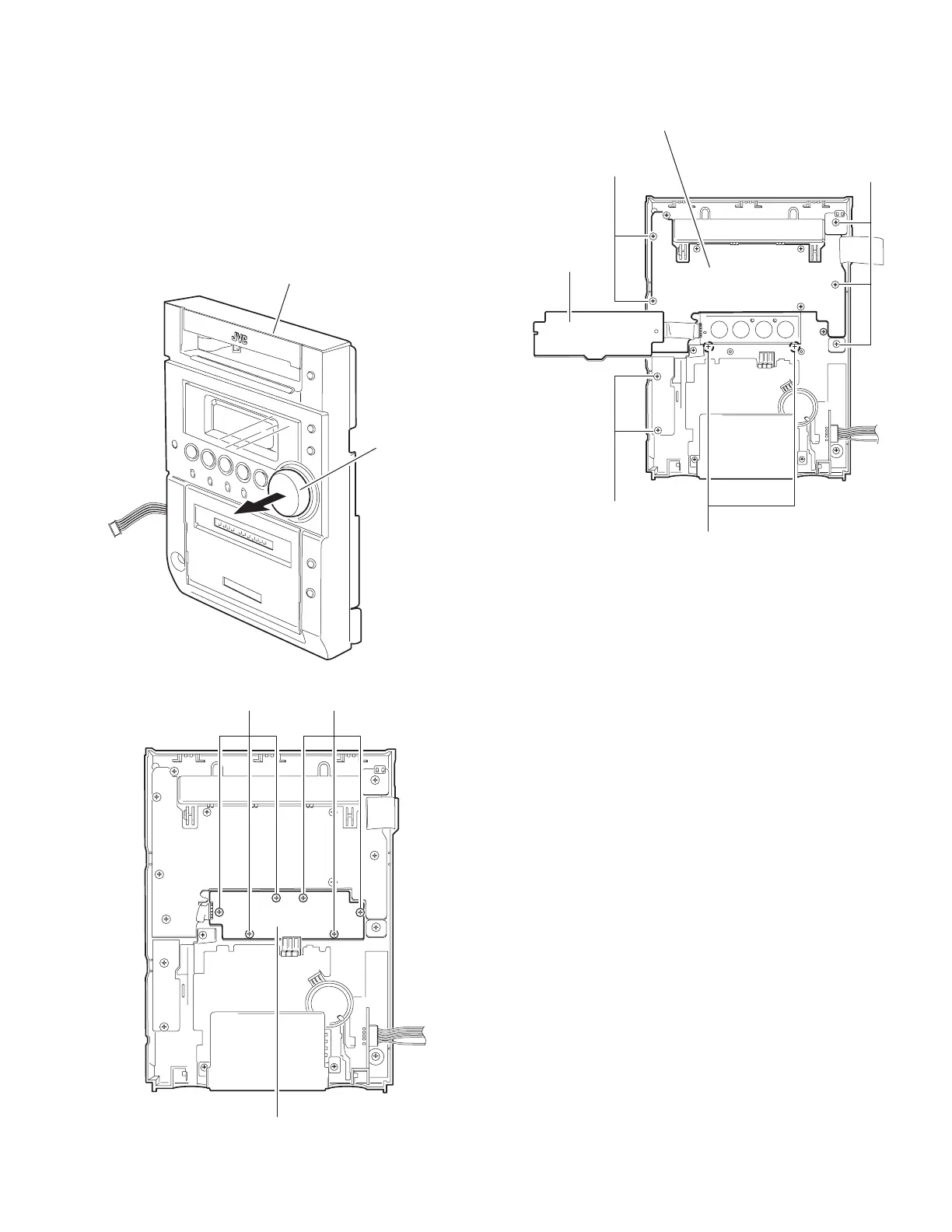

3.1.9 Removing the display board / switch board
(See Fig.18 to 20)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Pull out the VOLUME knob on the front panel.
(2) Remove the six screws M attaching the switch board.
Then, open the switch board in the direction of arrow, and
remove the operation button.
(3) Remove the ten screws N attaching the Display board and
the two screws P of the LCD holder.
Fig.18
Fig.19
Fig.20
Front panel assembly
VOLUME knob
MM
Switch board
N
N
P
N
Display board
Switch board
To Next Page
