1-16 (No.MB262)

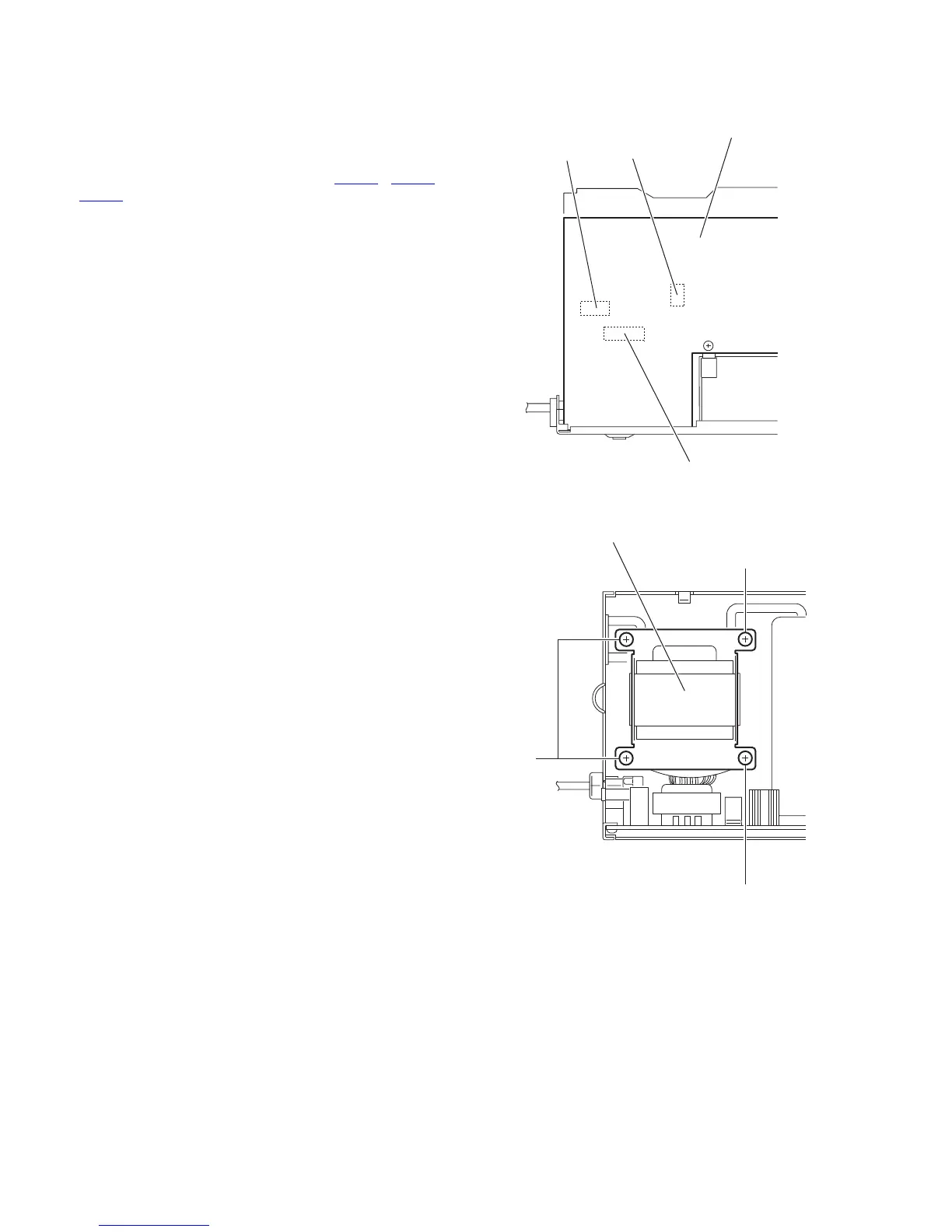

3.1.13 Removing the power transformer
(See Figs.22 and 23)
Prior to performing the following procedures, remove the side
panels L/R, front panel assembly, top cover assembly and rear
panel.
(1) From the forward side of the power supply board, discon-
nect the wires from the connectors (CN102
, CN103,
CN105). (See Fig.22.)
Reference:
Remove the power supply board as required. (See
Fig.17.)
(2) From the top side of the main body, remove the four screws
R attaching the power transformer. (See Fig.23.)
Fig.22
Fig.23
CN102
CN103
Power supply board
CN105
R
R
R
Power transformer
