6
English

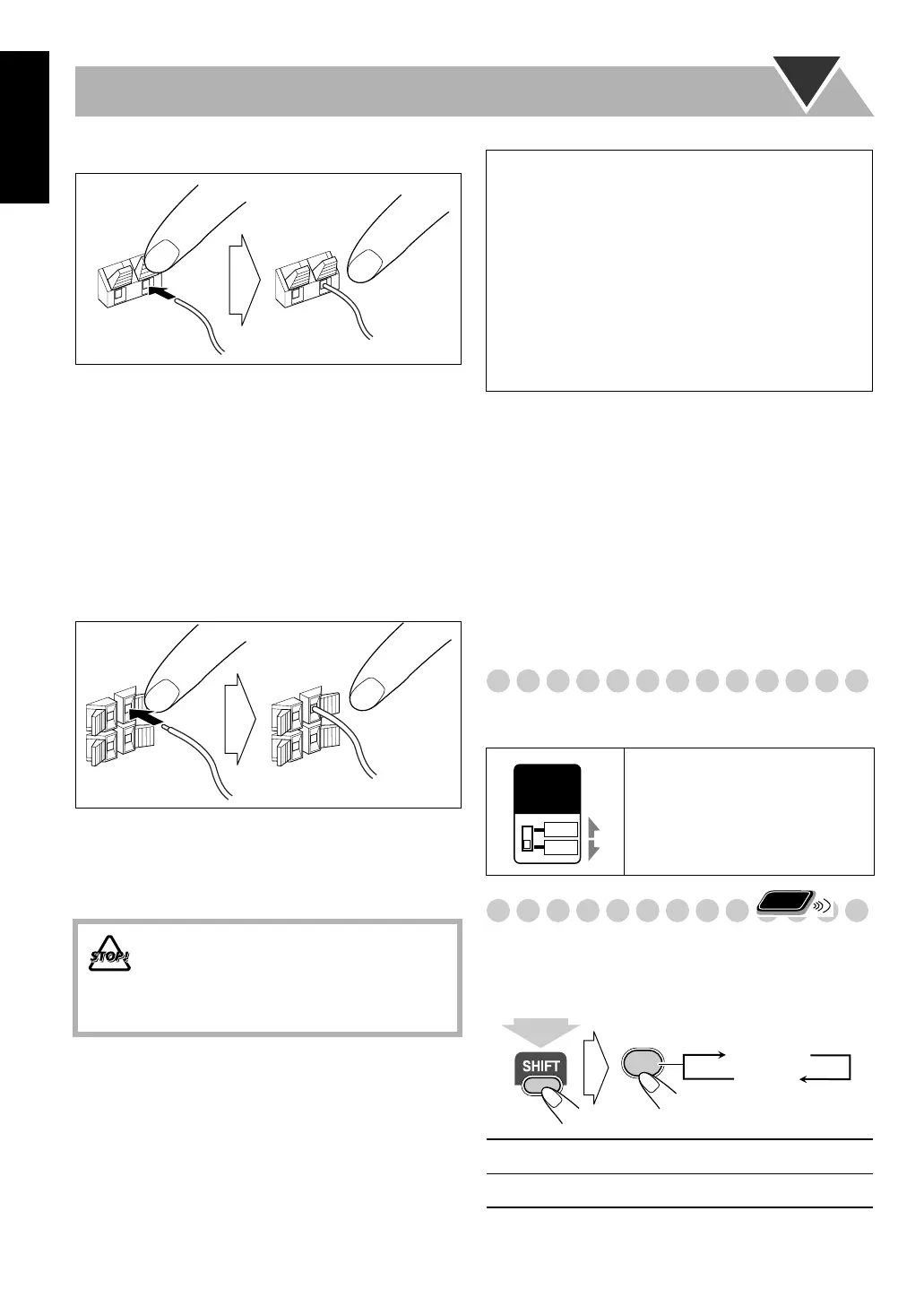

To connect the AM loop antenna
• If the AM loop antenna wire or speaker cords are covered
with vinyl, remove the vinyl to expose the tip of the
antenna by twisting the vinyl.
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. Also, keep the
antennas away from metallic parts of the System,
connecting cords, and the AC power cord. This could cause
poor reception.
To connect the speaker cords
Connect the right speaker to the RIGHT terminals, and the
left speaker to the LEFT terminals.
When connecting the speaker cords, match the polarity of
the speaker terminals:
• For LOW terminals: Red cord to (+) and black cord to (–).
• For HIGH terminals: Grey cord to (+) and blue cord to (–).
AV COMPU LINK remote control system
This system allows you to use JVC’s TV with simple
operations; by starting playing back a disc, the TV
automatically turns on and changes the input mode to the
appropriate position so that you can view the playback
picture.
• To use AV COMPU LINK, you need to connect the
System and the TV by using a cord with monaural mini-
plugs (not supplied) in addition to the video input/output
connection through the COMPONENT jacks, S-VIDEO
jack or VIDEO (composite) jack on the rear.
Setting the Video Output Selector
You can select the video output to match it to the color
system of your TV.
Changing the Scanning Mode
This System supports progressive scanning.
If you connect a progressive TV through the COMPONENT
jacks, you can enjoy a high quality picture from the built-in
DVD player by selecting “PROGRE.”
• DO NOT connect more than one speaker to
each terminal.
• DO NOT allow the conductor of the speaker
cords to be in touch with the metallic parts of
the System.
1 Hold
2 Insert
3 Release
1 Hold
2 Insert
3 Release
IMPORTANT
The speakers are magnetically shielded to avoid color
distortions on TVs. However, if not installed properly, it
may cause color distortions. So, pay attention to the
following when installing the speakers.
• When placing the speakers near a TV set, turn off the
TV’s main power switch or unplug it before installing the
speakers. Then wait at least 30 minutes before turning on
the TV’s main power switch again.
Some TVs may still be affected even though you have
followed the above. If this happens, move the speakers
away from the TV.
NTSC:
For an NTSC TV.
PAL:
For a PAL TV.
• When using a multi-color system
TV, either position will work.
PROGRE
Progressive scanning. For a progressive TV.
INTER
Interlaced scanning. For a conventional TV.
VIDEO
OUT
SELECT
PAL
NTSC
Remote
ONLY
PROGRESSIVE
0
PROGRE
INTER
(at the same time)
Connection.fm Page 6 Wednesday, May 12, 2004 10:07 AM
