Removing the DVD mechanism
assembly(See Fig.10)
1.
2.
While turning the cams R1 and R2 assembly in the
arrow direction h , align the shaft i of the DVD
mechanism assembly to the position shown in Fig.10.
Remove the four screw F retaining the DVD
mechanism assembly.
Removing the DVD mechanism
(See Fig.11 and 12 )
1.
2.
3.
For dismounting only the DVD machanism without
removing the DVD mechanism assembly, align the shaft
j of the DVD mechanism assembly to the position
shown Fig.11 while turning the cam R1 and R2
assembly in the arrow direction k.
Remove the two screws G raising the DVD mechanism
assembly.
Remove the DVD mechanism assembly in the arrow
direction I from the lifter unit (See Fig. 12)

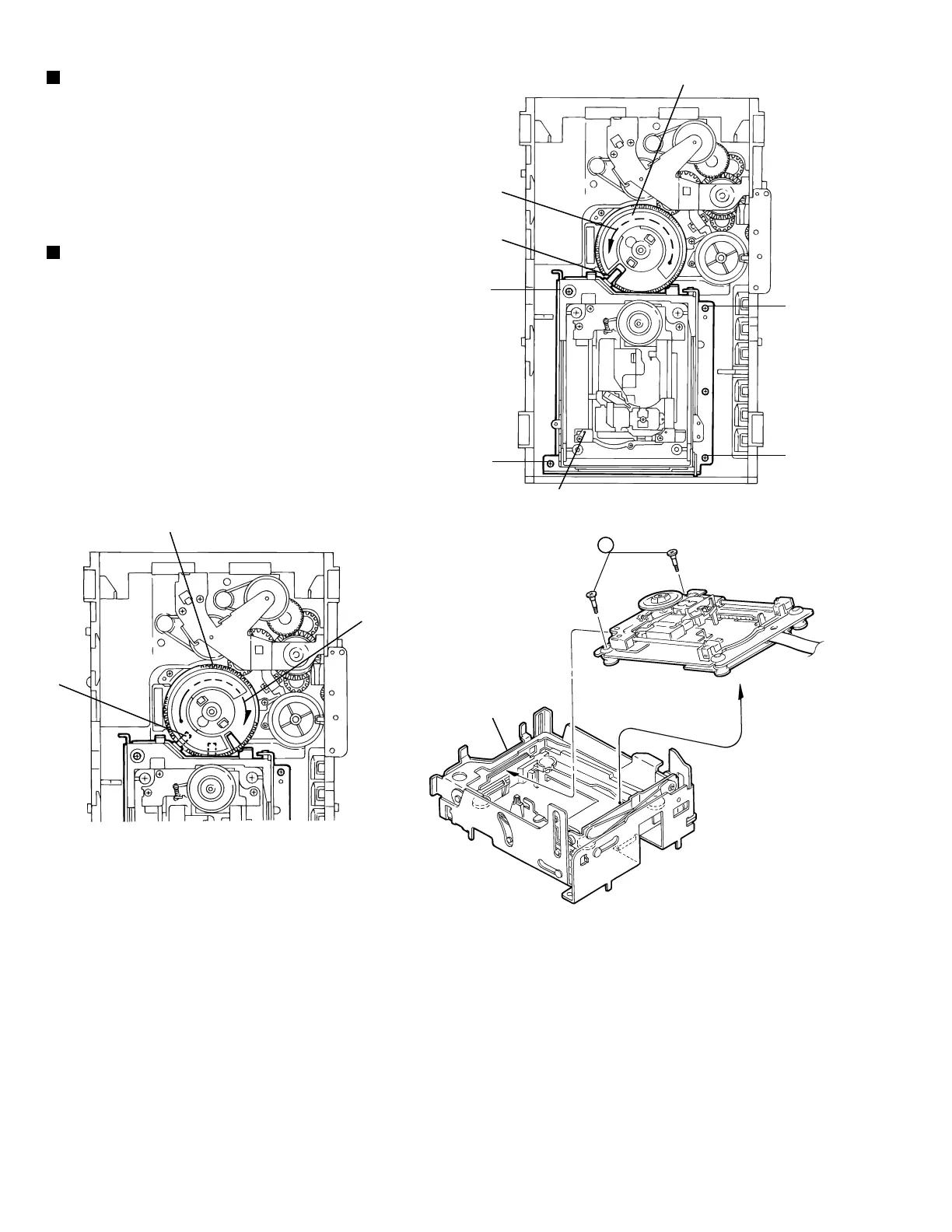

Fig.10
Fig.12
Fig.11
F
Cams R1, R2 assembly
i
DVD mechanism assembly
F
h
Arrow
F
F
Lifter unit
DVD mechanism
assembly
l
Arrow
Cam R1, R2 assembly
k
Arrow
j
G
