JVC XV-M565BK Service Manual

XV-M565BK/M567GD
1-13
11.
12.

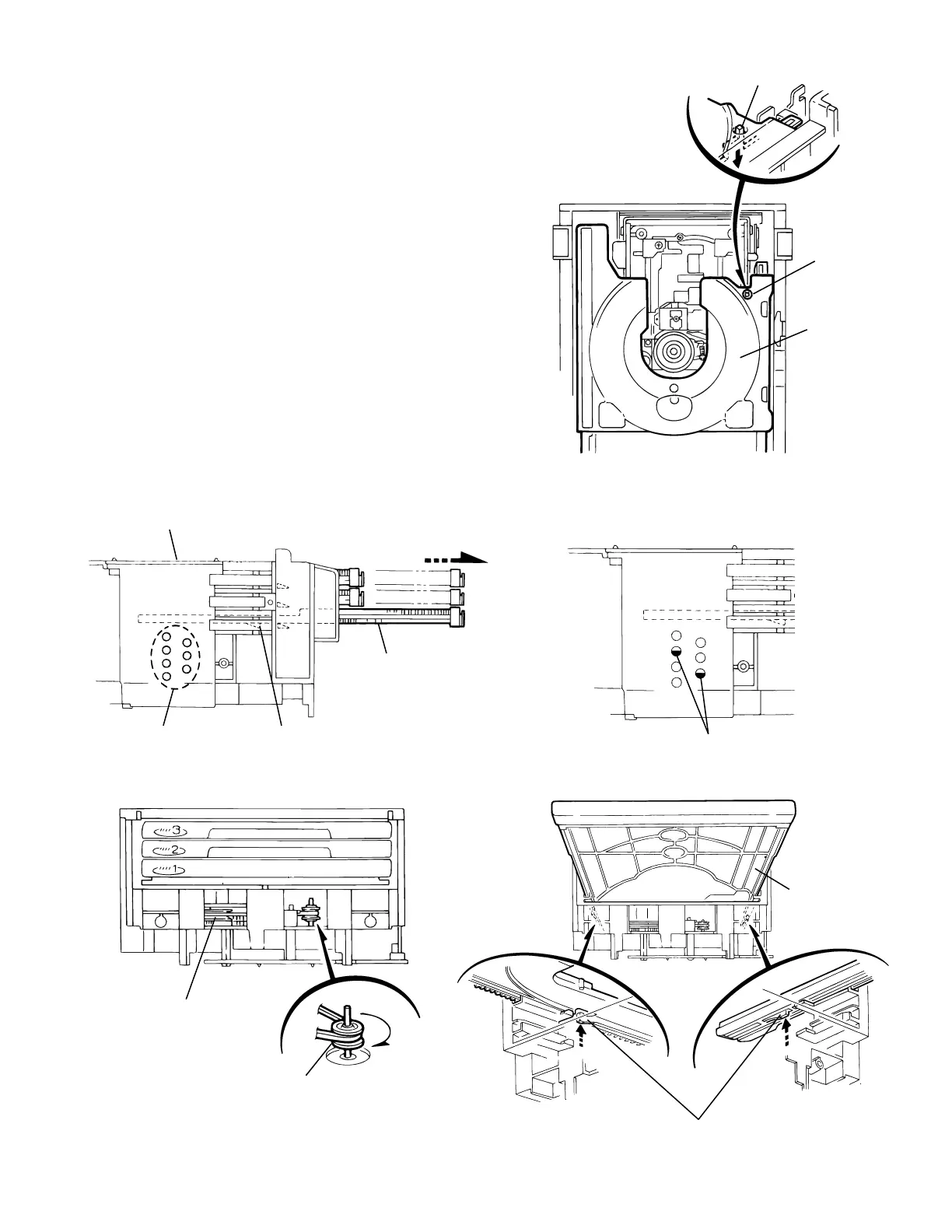

Check whether the lifter unit stopper has been caught
into the hole at the section e of DVD tray assembly as
shown in Fig.5.
Make sure that the driver unit elevator is positioned as
shown in Fig.6 from to the second or fifth hole on the
left side face of the DVD Traverse mechanism
assembly.
Fig.5
Fig.7Fig.6
Fig.8
Fig.9
[Caution]
In case the driver unit elevator is not at above
position, set the elevator to the position as
shown in Fig.7 by manually turning the pulley
gear as shown in Fig.8.
13.
14.
15.
Manually turn the motor pulley in the clockwise
direction until the lifter unit stopper is lowered from the
section e of DVD tray assembly(See Fig.8).
Pull out all of the three stages of DVD tray assembly in
the arrow direction f until these stages stop
(See Fig.6).
At the position where the DVD tray assembly has
stoppend, pull out the DVD tray assembly while
pressing the two pawls g and g' on the back side of
DVD tray assembly(See Fig.9). In this case, it is easy
to pull out the assembly when it is pulled out first from
the stage DVD tray assembly.
DVD tray
assembly
e
Drive unit of elevator
DVD tray assembly
f
Refer to Fig.7
Pawl
Chassis assembly
Pulley gear
Motor pulley
Pawl ,
DVD tray assembly
Stopper
g
g
g'
