JVC XV-M565BK Service Manual

XV-M565BK/M567GD
1-12

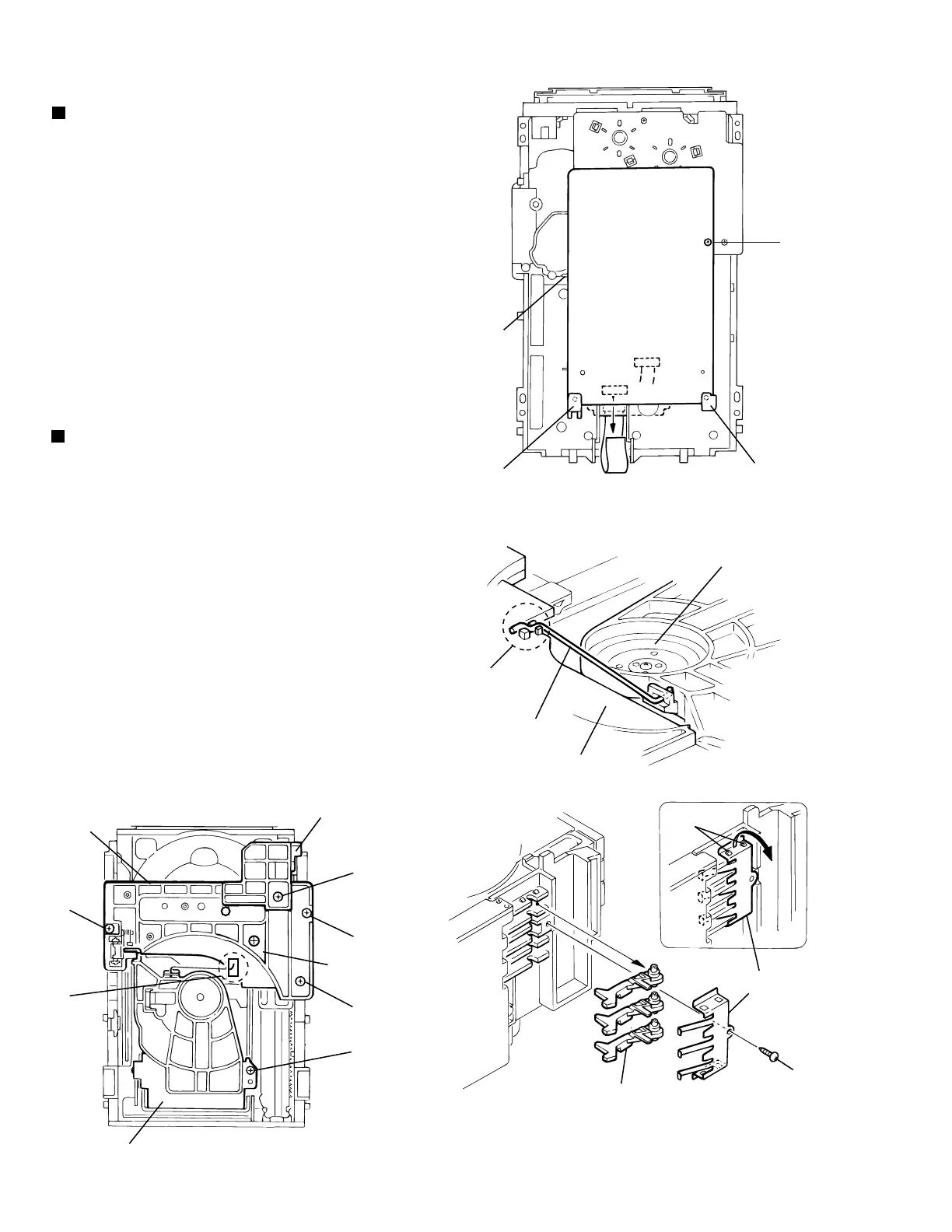

Removing the DVD mechanism board
(See Fig.1)
1.
2.
3.
4.
5.
Remove the DVD mechanism assembly cover.
Remove the DVD changer mechanism assembly.
From bottom side the DVD changer mechanism
assembly, remove the one screw A retaining the DVD
traverse mechanism control board.
Disconnect the card wire from the connectors CN101
and CN102 on the DVD traverse mechanism control
board.
Disengage the one engagement a and two
engagements b , remove the DVD traverse mechanism
control board.
Removing the DVD tray assembly
(See Fig.2~4)
1.
2.
3.
4.
5.
6.
7.
8.
9.
Remove the front panel assembly.
Remove the DVD changer mechanism assembly.
Remove the DVD traverse mechanism control board.
Remove the screw B retaining the Disc stopper
(See Fig.3).
Remove the three screws C retaining the T.bracket
(See Fig.3).
From the clamper base section c, remove both of the
edges fixing the rod(See Fig.2 and 3).
Remove the screw D retaining the clamper assembly
(See Fig.3).
From the left side face of the chassis assembly, remove
the one screw E retaining both of the return spring and
lock lever(See Fig. 4).
By removing the pawl at the section d fixing the return
spring, dismount the return spring(See Fig.4).
Remove the three lock levers(See Fig.4).
10.
Fig.1
Fig.2
Fig.3
Fig.4
< DVD Changer Mechanism Section >
A
DVD traverse
mechanism
control baord
CN102
CN101
bb
a
c
Rod
T.Bracket
Clamper base
B
C
C
D
C
c
T.Bracket
Disc stopper
Lod stopper
(C/J version only)
Clamper ass'y
d
Lock lever
Return spring
E
