JVC XV-S42SL Service Manual

XV-S40BK/XV-S42SL/XV-S45GD
XV-S30BK/XV-E100SL
1-11

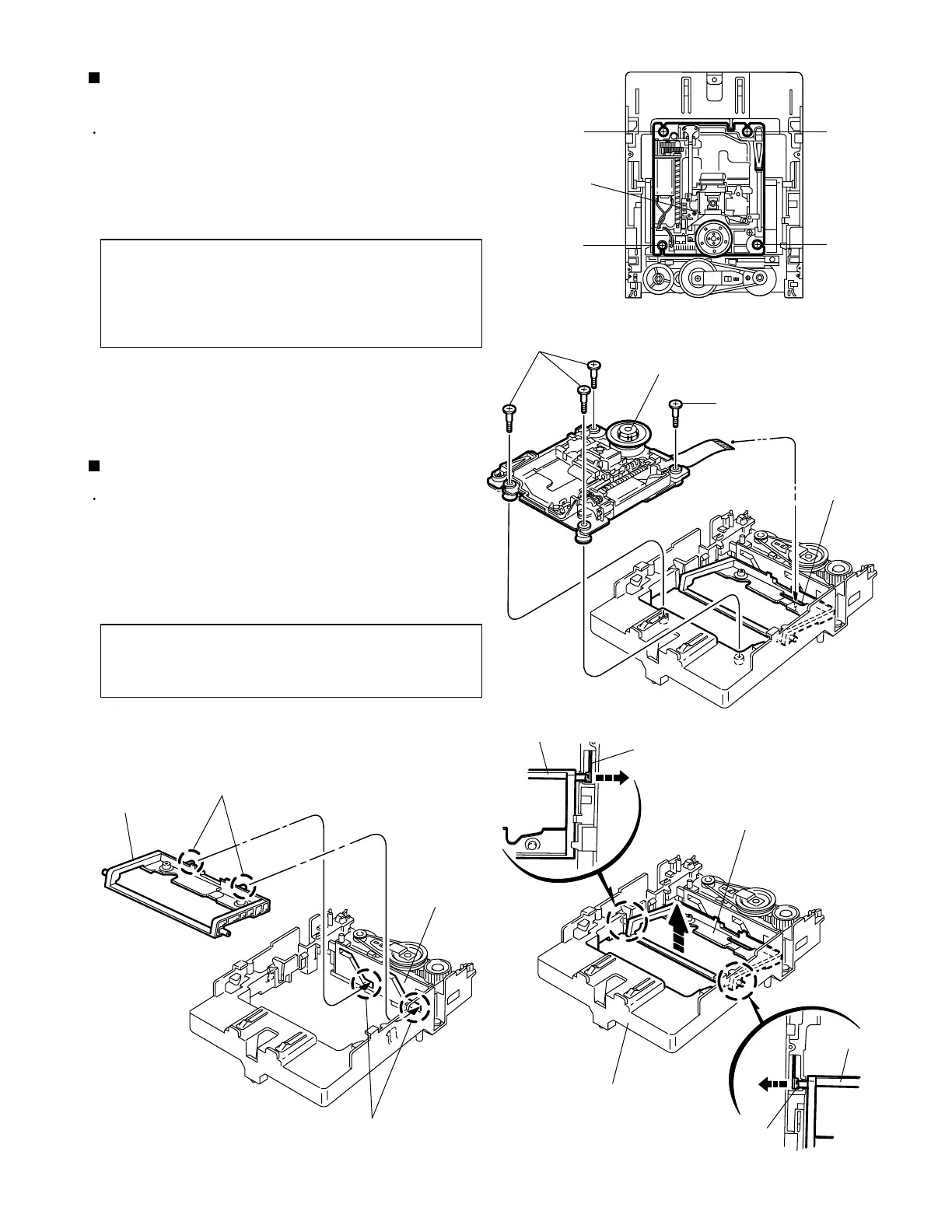

Prior to performing the following procedure, remove
the clamper assembly and the tray.
Remove the four screws B attaching the traverse
mechanism assembly.
1.
Removing the traverse mechanism
assembly (See Fig.4 and 5)
Before reattaching the traverse
mechanism assembly, pass the card
wire extending from the spindle motor
board through the notch d of the
elevator.
ATTENTION:
Prior to performing the following procedure, remove
the clamper assembly, the tray and the traverse
mechanism assembly.
Extend each bar e inside of the loading base
outward and detach the elevator shaft.
1.
Removing the elevator (See Fig.6 and 7)
When reattaching, first fit the two
shafts on the front of the elevator to
the slots f of the slide cam.
ATTENTION:
Fig.4
Fig.5
Fig.6Fig.7
BB
B
BB
B
Traverse mechanism
assembly
B
BB
Traverse mechanism assembly
Elevator
Notch d
Elevator
Elevator
Elevator
e
e
Loading base
Elevator
Shafts
Slide cam
Slots f
