XV-S40BK/XV-S42SL/XV-S45GD
XV-S30BK/XV-E100SL
1-12
Prior to performing the following procedure, remove
the clamper assembly, the tray, the traverse
mechanism assembly and the elevator.
Remove the belt from the pulley.
Remove the screw C attaching the motor assembly.
Turn over the body and remove the screw D
attaching the motor assembly.
Release the two tabs g retaining the motor board.
1.
2.
3.
4.

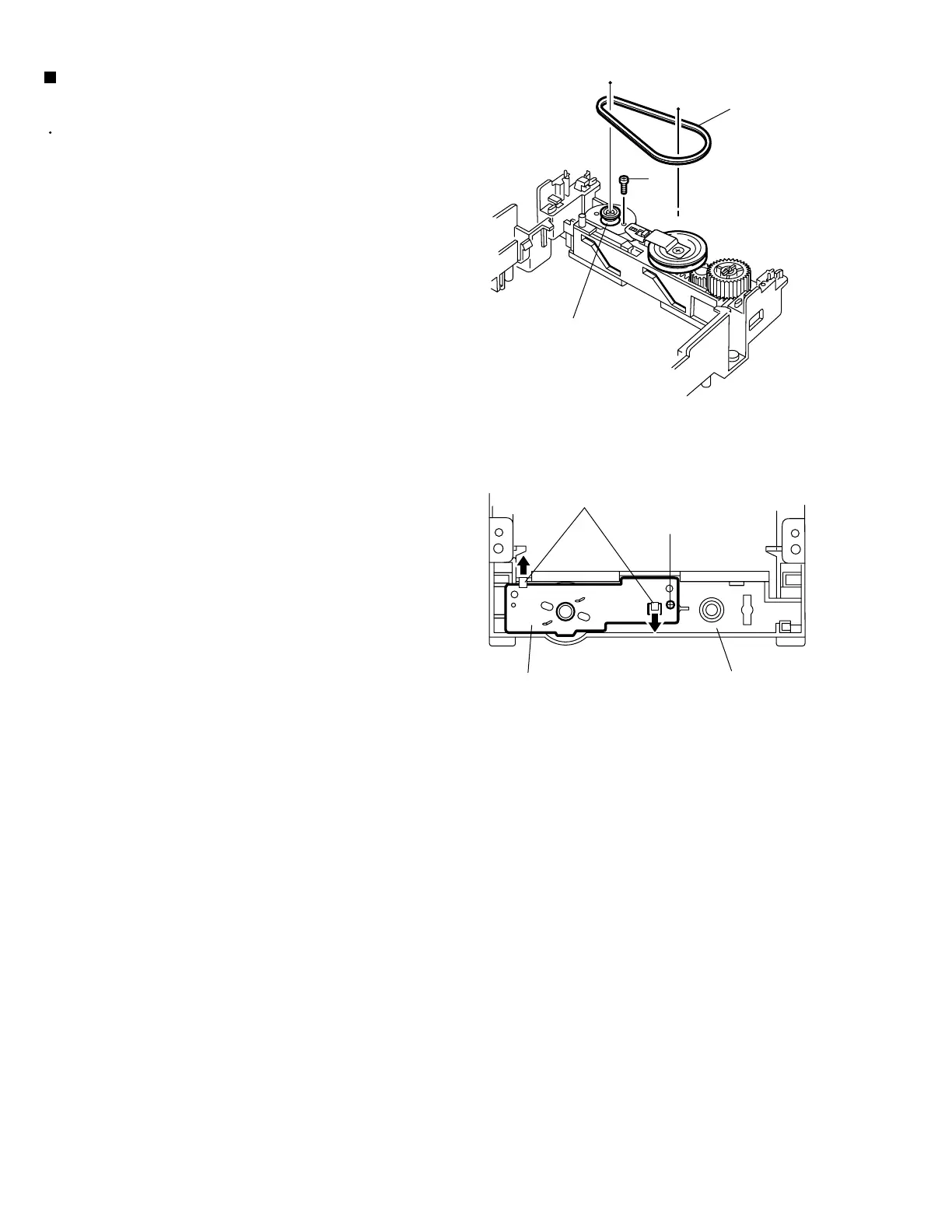

Removing the motor assembly
(See Fig.8 and 9)
Fig.8
Fig.9
C
Motor assembly
Belt
Loading base
Motor assembly
D
Tabs g
To Next Page
