XV-S40BK/XV-S42SL/XV-S45GD
XV-S30BK/XV-E100SL
1-16
Remove the three screws L attaching the spindle
motor on the bottom of the mechanism base.
1.

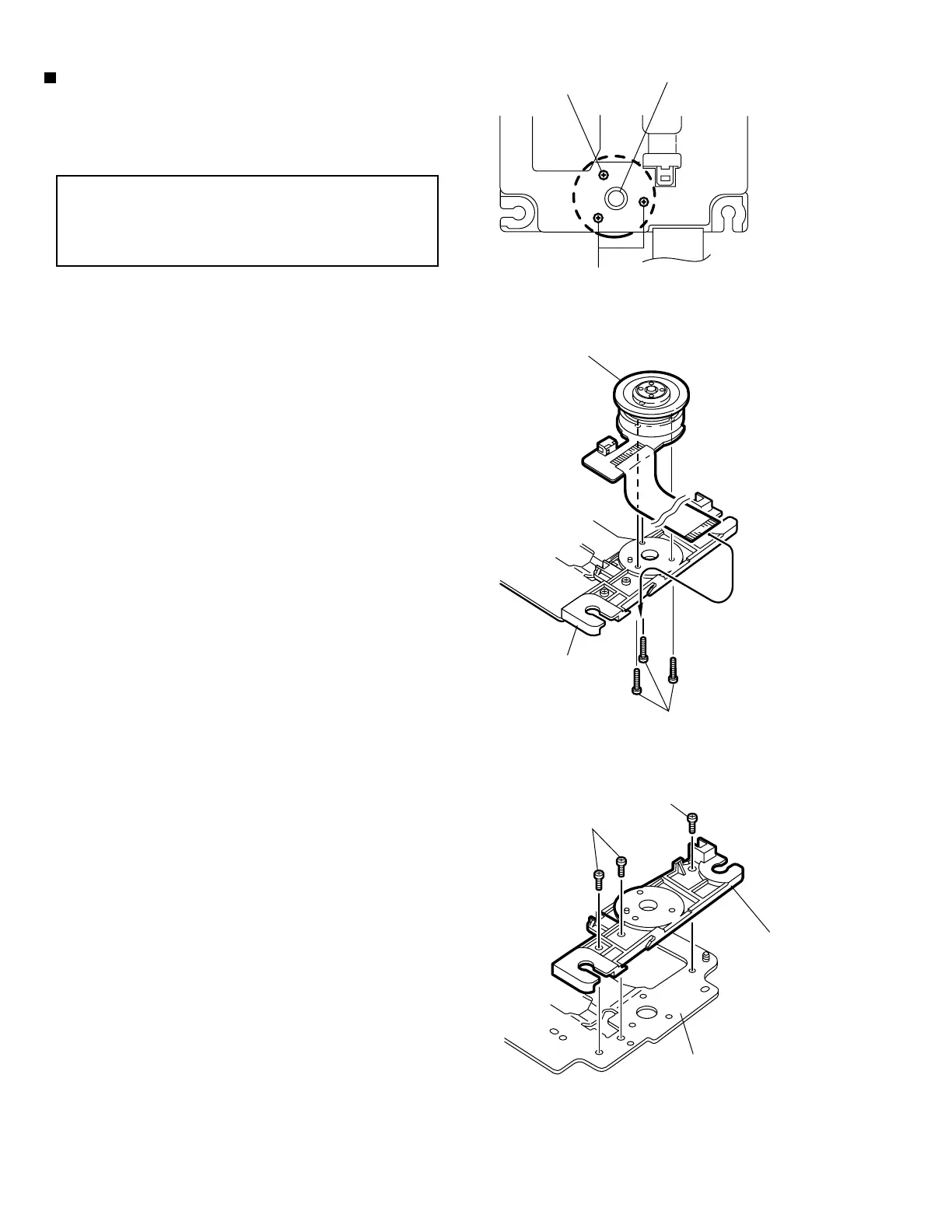

Removing the spindle motor assembly
(See Fig.19 to 21)
When reattaching, pass the card wire
extending from the spindle motor
board through the notch of the spindle
base.
ATTENTION:
Remove the three screws M attaching the spindle
base.
2.
Fig.19
Fig.20
Fig.21
Spindle motor assembly
Spindle base
L
M
M
Spindle base
Mechanism base
L
L
Spindle motor
To Next Page
