JVC XV-S42SL Service Manual

XV-S40BK/XV-S42SL/XV-S45GD
XV-S30BK/XV-E100SL
1-15
Remove the screw I attaching the T spring (S) and
the shaft holder. Remove also the plate.
1.

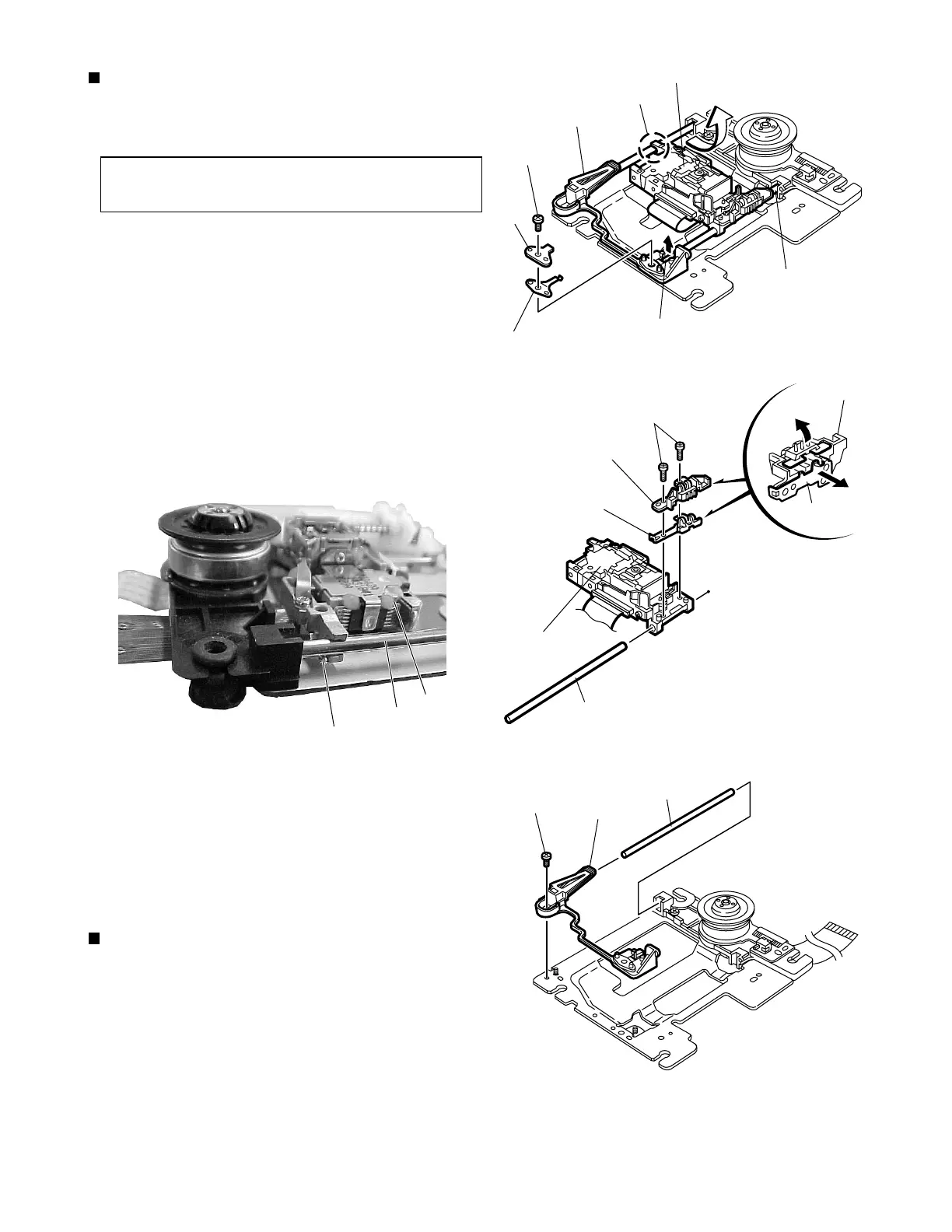

Removing the pickup (See Fig.16 and 17)
Remove the screw K attaching the shaft holder.
Remove the shaft.
1.
2.
Removing the shaft holder / shaft
(See Fig.18)
When reattaching, make sure that the
T spring (S) presses the shaft.
ATTENTION:
Pull out the part l of the shaft upward. Move the part
m in the direction of the arrow and detach from the
spindle base.
Disengage the joint n of the pickup and the shaft in
the direction of the arrow.
Pull out the shaft from the pickup.
Remove the two screws J attaching the actuator.
Disengage the joint of the actuator and the lead
spring. Pull out the lead spring.
2.
3.
4.
5.
6.
The spring must be under the shaft when you
install pick-up.
Fig.16
Fig.17
Fig.18
T spring (S)
Plate
Joint n
Pickup
Part m
Shaft holder
Part l
I
Shaft
Shaft
Spring
Pick-up
Pickup
Lead spring
Actuator
J
Actuator
Lead spring
Shaft
Shaft holder
K
