JVC XV-S42SL Service Manual

XV-S40BK/XV-S42SL/XV-S45GD
XV-S30BK/XV-E100SL
1-14

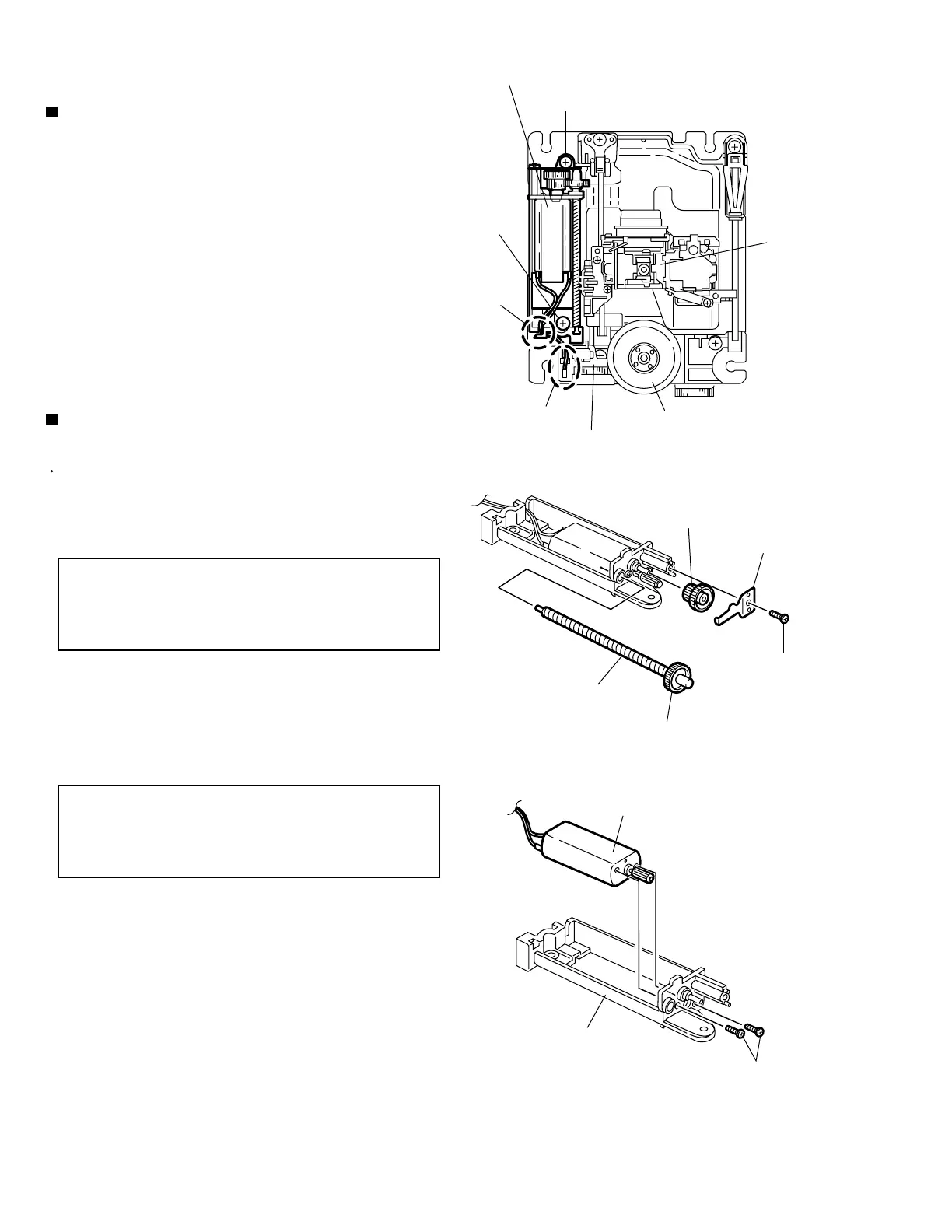

Prior to performing the following procedure, remove
the feed motor assembly.
Remove the screw G attaching the thrust spring.
1.
Removing the feed motor
(See Fig.13 to 15)
Unsolder the two soldering j on the spindle motor
board.
Remove the two screws F attaching the feed motor
assembly.
1.
2.
Removing the feed motor assembly
(See Fig.13)
When reattaching the thrust spring,
make sure that the thrust spring
presses the feed gear (M) and the feed
gear (E) reasonably.
ATTENTION:
Remove the feed gear (M).
Pull out the feed gear (E) and the lead screw.
Remove the two screws H attaching the feed motor.
2.
3.
4.
When reattaching, pass the two cables
extending from the feed motor through
the notch k of the feed holder as
shown in Fig.13.
ATTENTION:
<Traverse mechanism assembly section>
Fig.13
Fig.14
Fig.15
F
Soldering j
Notch k
F
Feed motor assembly
Spindle motor board
Spindle motor
Feed gear (M)
Thrust spring
G
Feed gear (E)
Lead screw
Feed motor
Feed holder
H
Pickup
