MINIMUM CLEARANCES TO COMBUSTIBLES
Description Trendline 1-2-3/ Troja 1-2-3/ Softline/ Cosmo
Zeus/ Athene/ Hera/ Avanti/ Fineline 1-2
Cubic 109/166/215/Wall/W200/Corner

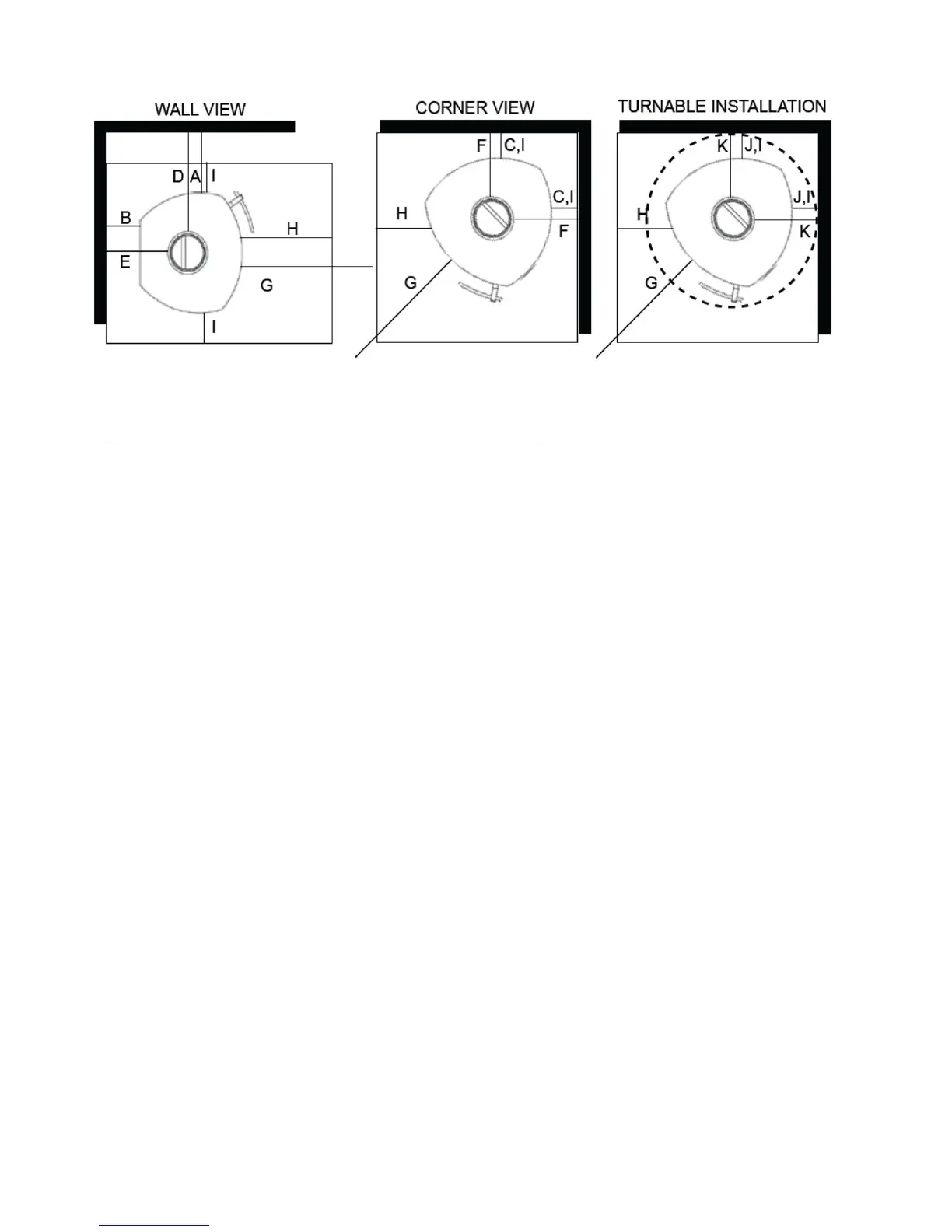

A. DISTANCE TO SIDE WALL US/CANADA 18" (46 cm)
B. DISTANCE TO BACK WALL US/CANADA 10" (25 cm)
C. CORNER DISTANCE TO SIDE WALLS US/CANADA 7" (18 cm)
D. CONNECTOR PIPE TO SIDE WALL US/CANADA 26" (65 cm)
E. CONNECTOR PIPE TO BACK WALL US/CANADA 16" (41 cm)
F. CORNER PIPE TO SIDE WALLS US/CANADA 16" (41 cm)
G. DISTANCE TO FURNITURE US/CANADA 36" (92 cm
H. FRONT FLOOR PROTECTION US 16" (41 cm)
CANADA 18" (46 cm)
I. SIDE FLOOR PROTECTION US 8" (20 cm)
beyond the sides of the fuel loading door
CANADA 8" (20 cm)
beyond the sides of the stove
J. DISTANCE TO WALL (TURNABLE) US/CANADA 40" (100 cm)
K. CONNECTOR PIPE TO WALL (TURNABLE) US/CANADA 48" (120 cm)
CEILING TO TOP OF STOVE US/CANADA 36" (92 cm)
CEILING TO CONNECTOR PIPE US/CANADA 18" (46 cm)
Note: A heat shield or protective wall may be used to reduce clearances if approved by the
regulatory authority. Clearances to noncombustible materials are 2" (5cm), but note that
"noncombustible" must be solid cement or cement block (not brick or tile over combustible
material).
