11. SIGNAL fLow
The KA14 features two independent input processing channels (CH1 and CH2) and four independent
output processing channels (A1, A2, B1, B2).
The physical inputs (XLR 1, XLR 2, RCA L and RCA R) can be assigned to any input processing channel
thanks to the
Input Matrix
. In the
Input Matrix
, it is also possible to assign any physical input to any RCA
output (RCA OUT L or RCA OUT R).
Please note that the three RCA inputs are wired in parallel. If more the one device is connected to the
RCA inputs and play simultaneously, their signals are summed.
Please note also that the two channels of each RCA input are completely independent. They can be
used to connect the Left and Right channels of a stereo source, or two independent mono sources.
RCA OUTPUT L RCA OUTPUT R CH 1 CH 2
XLR INPUT 1
X X
XLR INPUT 2
X X
RCA INPUT L
X X
RCA INPUT R
X X
Physical Inputs
Processing InputsRCA Outputs
Input Matrix - Default settings
LEVEL
INPUT
MATRIX
USER
EQ
OUTPUT
MATRIX
ø
CHANNEL PRESET
XLR IN 1
LEVEL
XLR IN 2
RCA R
RCA L
LEVEL
LEVEL
DELAY
LEVEL
ø
CHANNEL PRESET
DELAY
LEVEL
ø
CHANNEL PRESET
LEVEL
ø
CHANNEL PRESET
LEVEL
A1
A2
B1
B2
RCA OUT R
RCA OUT L

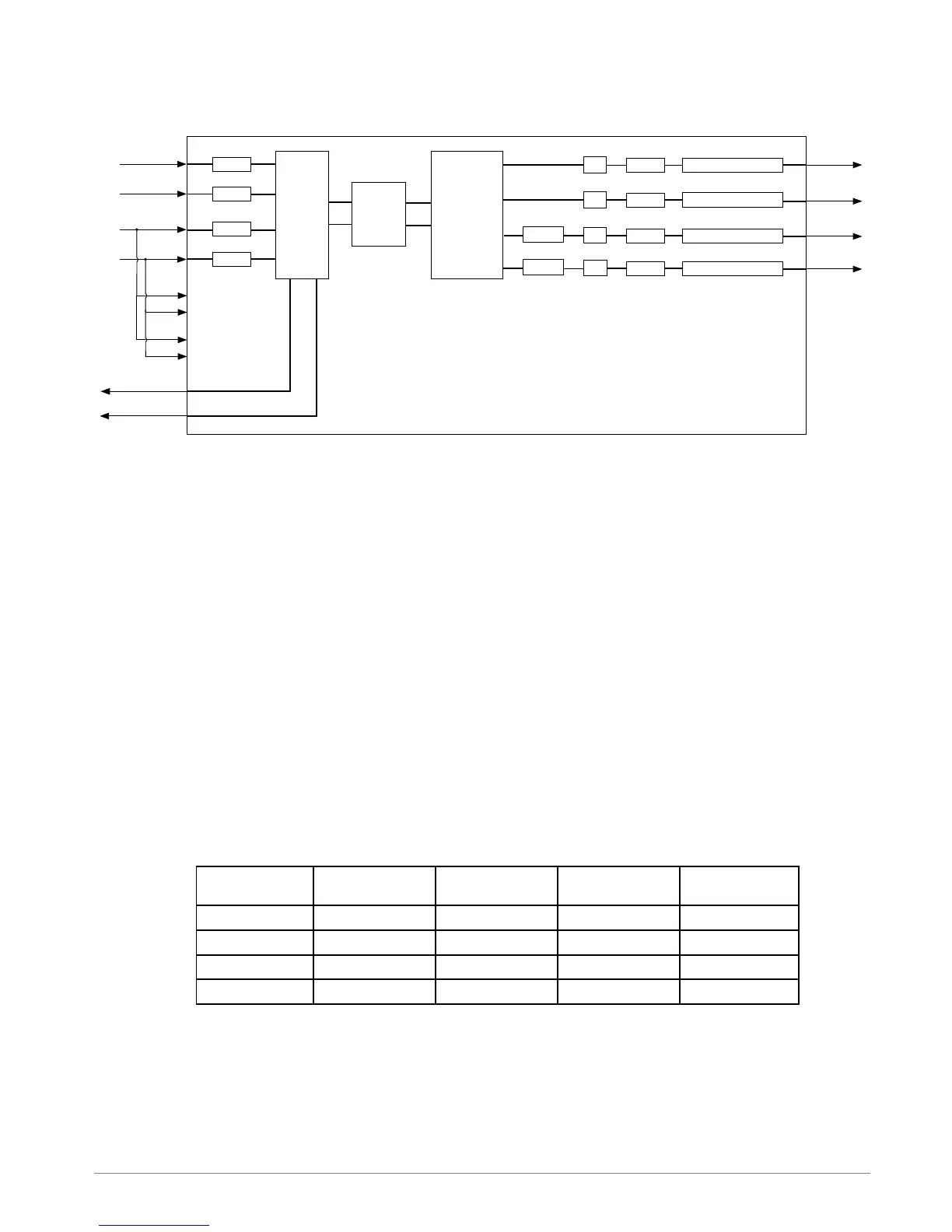

KA14 Signal-flow
