K-array KA24 - KA-POT1 Wiring Diagrams; Wiring Schemes for KA-POT1

KA24/KA84
19
Ver. 1.2

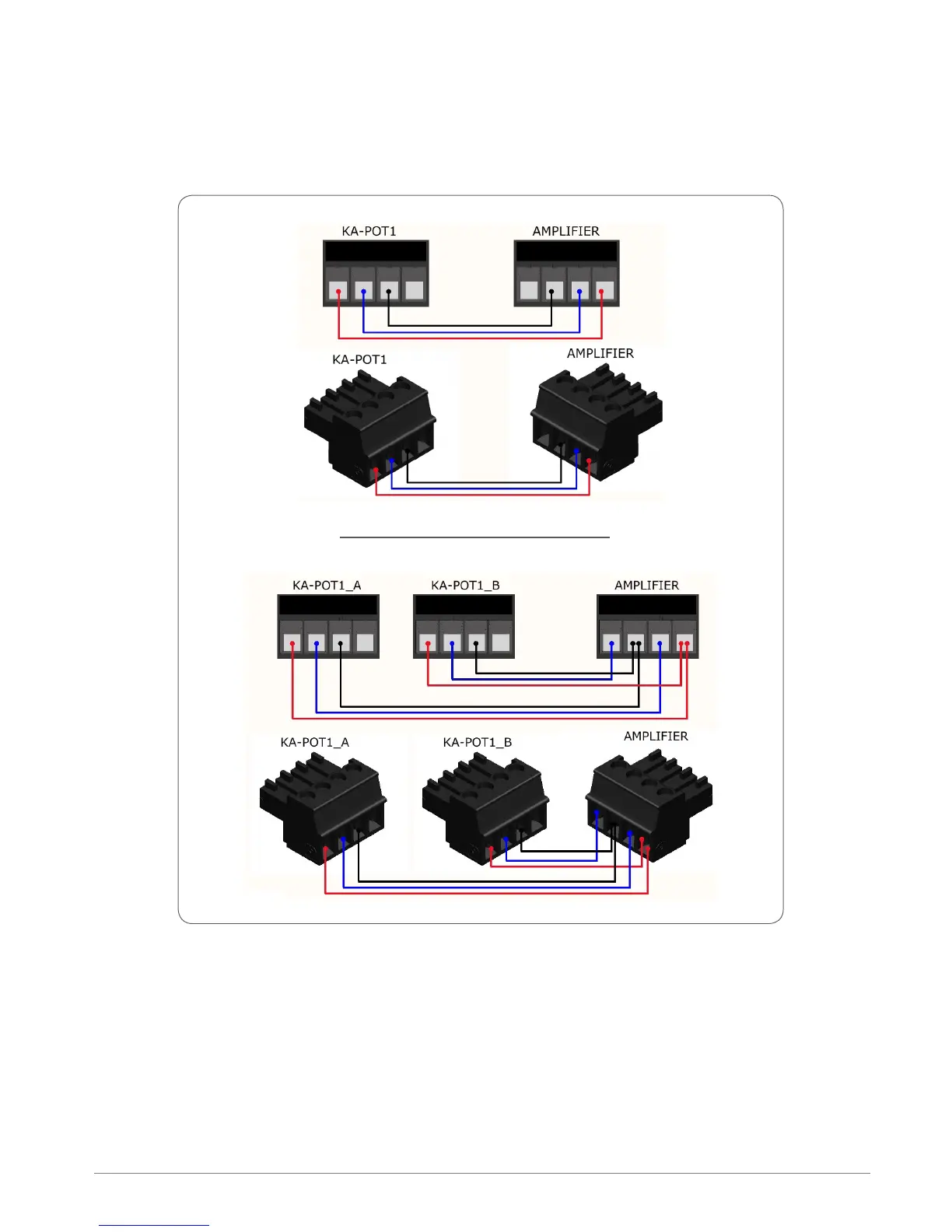

Follow the wiring scheme below to connect the 4-pin connector plugs. Follow the scheme on the top if
you own only one KA-POT1 and the one on the bottom if you own two KA-POT1. Then insert one plug
in the PCB and the other into the GPIO port on the amplifier.
KA-POT1 WIRING
