This document provides installation guides for Kaadas K7, K8, K9, KX, Lambo, and L7 smart door locks, focusing on handle and mortise latch direction adjustments for various door opening configurations (left/right handle, pull out/push in).

Function Description:

The Kaadas smart door locks are designed to provide secure access to properties, featuring adjustable handle and latch orientations to accommodate different door types and opening directions. The installation guides detail how to configure the lock for left-handle pull-out, left-handle push-in, right-handle pull-out, and right-handle push-in door operations. This flexibility ensures compatibility with a wide range of residential and commercial doors. The locks integrate a mechanical key override, and the installation process emphasizes proper alignment of internal components for optimal functionality.

Important Technical Specifications (Inferred from images and text):

Handle Mechanism: Features a square shaft system for handle rotation. The handle direction is adjustable to suit left or right-handed door configurations.
Mortise Latch: The mortise latch bolt direction is adjustable (e.g., for left-hand or right-hand doors) by manipulating a latch bolt switcher and rotating the latch bolt 180 degrees.
Mounting Plate: Requires secure installation with screws, and a specific screw guide must be inserted into the lock case.
Cylinder Key Tailpiece: The tailpiece needs to be adjusted to a vertical position during installation for proper mechanical key operation. For K7, K8, and KX models, there's a specific procedure involving turning the mechanical key 360 degrees to ensure the tailpiece reaches the correct position.
Positional Component (L7 model): A key internal component that needs to be correctly oriented and fastened with screws during handle direction adjustment. It has a "GAP" that must be located at the cable side.
Electrical Wiring: The L7 model shows internal wiring, indicating electronic functionalities (e.g., keypad, fingerprint reader, smart home integration), though specific electrical specifications are not detailed. The cable needs to be pulled to the correct side during handle rotation.
Quality Control (QC) Mark: Visible on the back door components, indicating adherence to quality standards.
Serial Numbers: Some images show serial numbers (e.g., D9A191105A4056517 for K8, W908502008150DA2598602 for Lambo), suggesting traceability and unique identification for each unit.

Usage Features:

Versatile Door Compatibility: The primary usage feature is the ability to adapt to various door opening directions (left/right, pull/push) by adjusting the handle and mortise latch. This makes the locks suitable for diverse architectural designs.
Mechanical Key Override: The presence of a cylinder key tailpiece and instructions for its adjustment confirm that the locks support mechanical key access, providing a backup entry method.
Clear Installation Instructions: The guides use visual aids (arrows, circles, dashed lines) and step-by-step instructions to facilitate DIY installation or professional setup.
Handle Direction Adjustment (L7 specific): The L7 model offers a detailed procedure for changing the lever handle direction, involving removing a square shaft, screws, a positional component, and a shield sleeve, then rotating the handle and reassembling.
Mortise Latch Direction Adjustment (L7 specific): The L7 guide provides a clear sequence for adjusting the mortise latch, including checking the current direction, pushing a switcher, pushing in the latch bolt, turning it 180 degrees, ejecting it, and pushing down the switcher to finalize the change.

Maintenance Features (Inferred):

Installation as a Form of Initial Maintenance/Setup: The detailed installation guides themselves serve as a critical first step in ensuring the long-term functionality and reliability of the lock. Correct initial setup prevents future issues.
Component-Based Adjustments: The modular design, allowing for individual adjustment of the handle and mortise latch components, suggests that specific parts can be serviced or replaced if needed, rather than requiring a full lock replacement for minor issues.
"CAUTION" Warnings: The warnings about installing mounting plate screw guides tightly and straightly, and ensuring the lock works after installation, highlight critical points for preventing malfunctions and ensuring durability.
Pre-Installation Checks: For K7, K8, and KX models, there are instructions to test the mechanical key and cylinder tailpiece before full installation, which acts as a pre-emptive check to ensure proper operation. This can be considered a form of preventative maintenance during setup.
Cable Management (L7): Instructions to "pull the wire to the other side" and "make sure to put the cable stay in one side of the cable hole" during handle adjustment indicate attention to internal cable routing, which is crucial for preventing damage and ensuring electrical continuity over time.

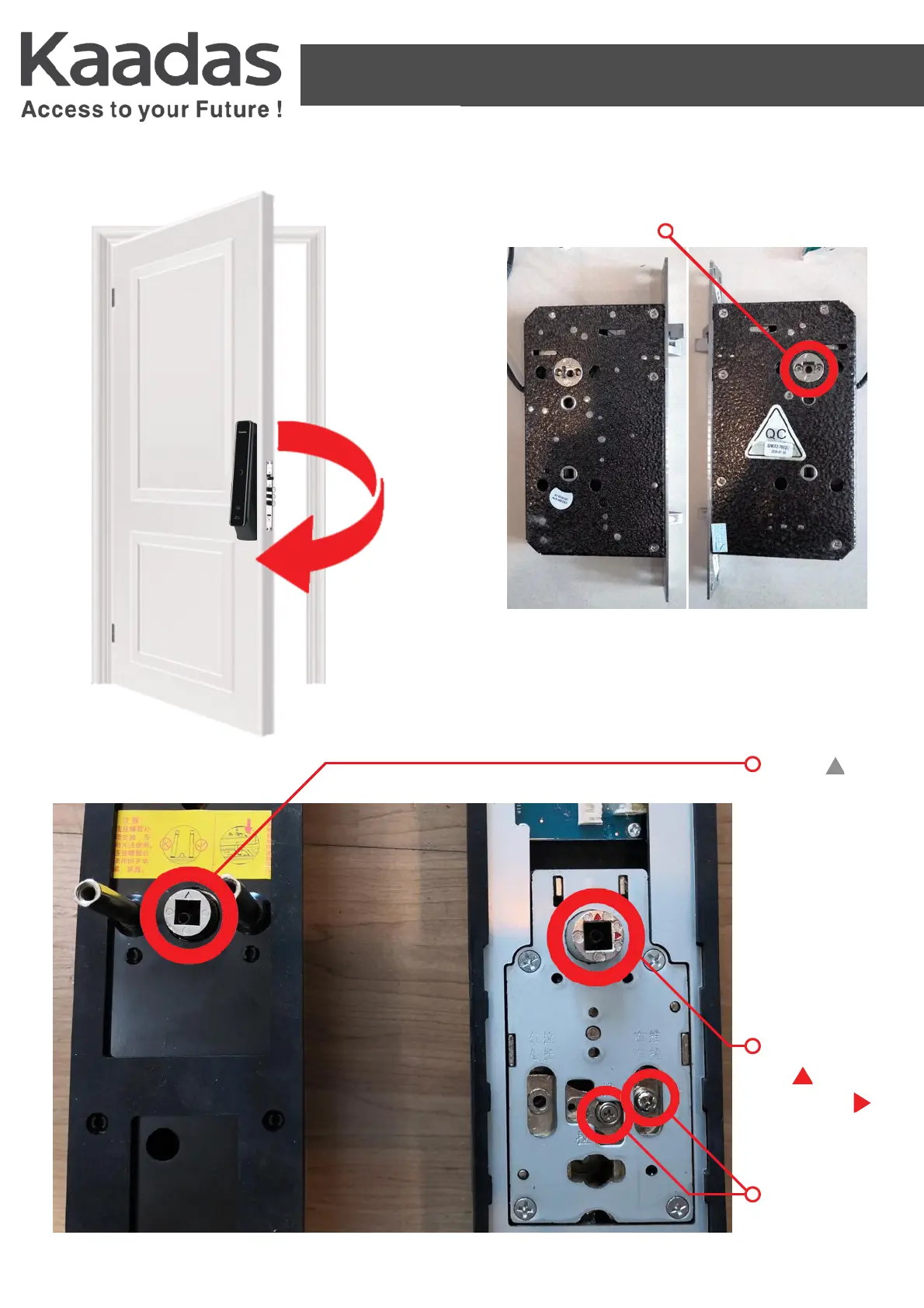

Kaadas K7 - Kaadas KX Installation Guide; Left Handle Door Open, Pull Out
