EF680/EF780 Installation Guide
Connecting the Cables

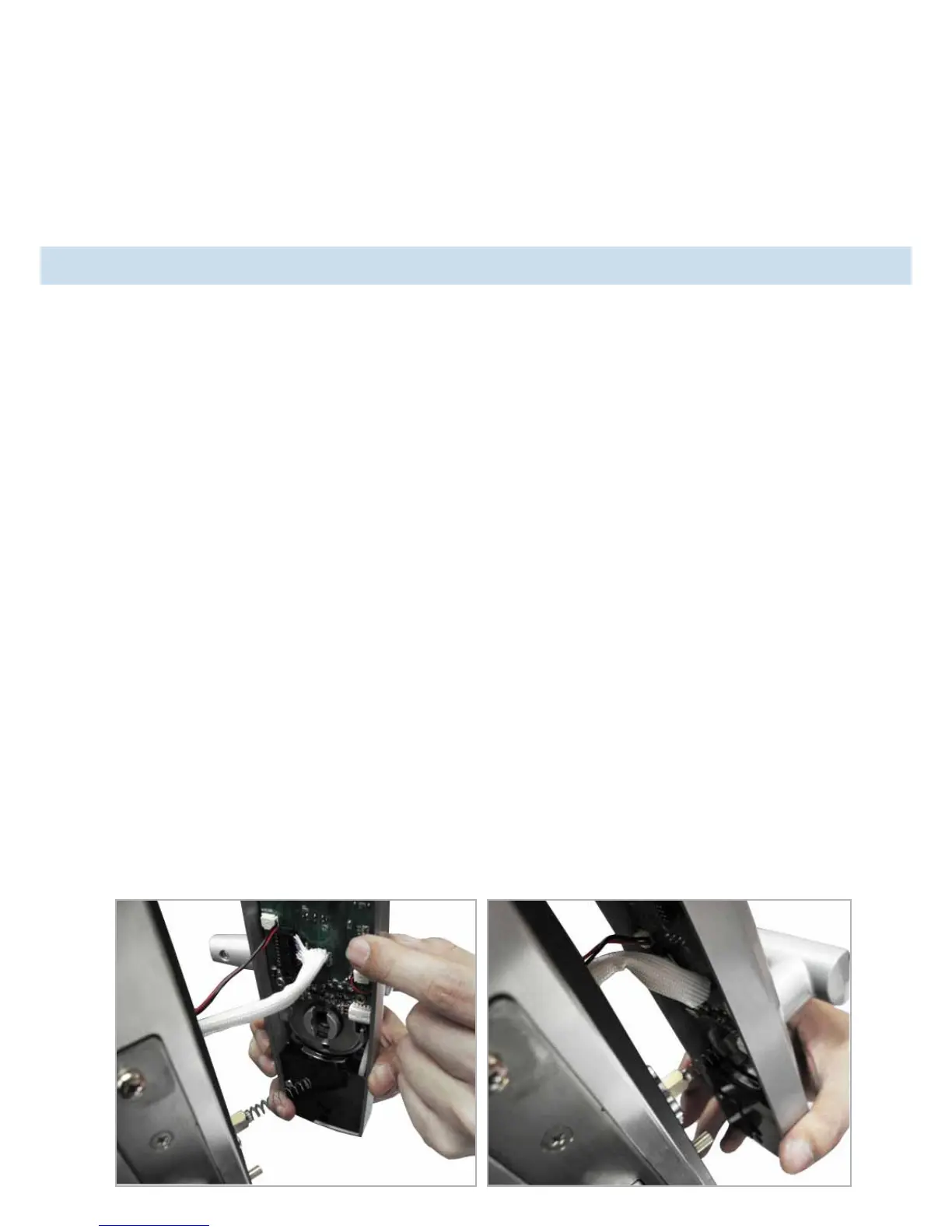

Step 9
Connect the main PCB cable and small power cable
making sure that they are connected securely.
The mortice cable can be fed back slightly into the door
cavity to shorten the cable to make it easier to t the back
main body of the lock.
Notes:
• Ensure the cables are not feeding back inside the
mortice lock.
•
Ensure you do not crimp the cables.
To Next Page
