EF680/EF780 Installation Guide

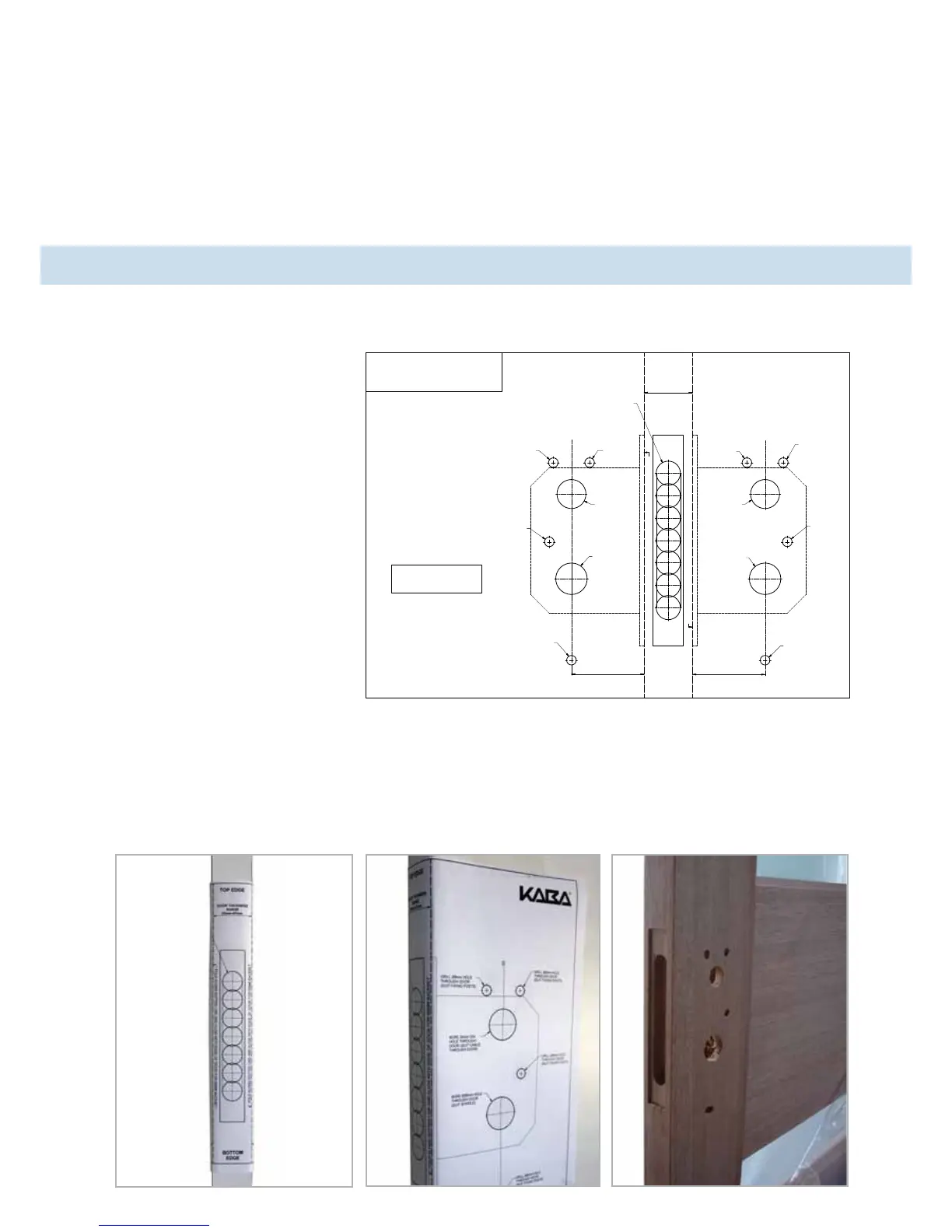

Preparation of the Door
Prepare the door
according to the
template provided.
Door thickness: 32mm
to 67mm.
Step 1
Typical door preparation,
ready for installation.
DRILL HOLES FROM BOTH
SIDES TO PREVENT
DAMAGE TO THE DOOR
60mm BACKSET
60mm BACKSET
DOOR THICKNESS
RANGE
32mm-67mm
BORE 24mm DIA
HOLE THROUGH
DOOR (SUIT CABLE
THROUGH DOOR)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
EF680 MS MORTICE
LOCK TEMPLATE
BOTTOM
EDGE
TOP EDGE
BORE Ø26mm HOLE
THROUGH DOOR
(SUIT SPINDLE)
BORE Ø26mm HOLE
THROUGH DOOR
(SUIT SPINDLE)
FOLD ALONG DOTTED LINE AND ALIGN W
ITH EDGE OF DOOR FOR 60MM BACKSET
FOLD ALONG DOTTED LINE AND ALIGN W
ITH EDGE OF DOOR FOR 60MM BACKSET
BORE 24mm DIA
HOLE THROUGH
DOOR (SUIT CABLE
THROUGH DOOR)
BORE 7 HOLES
Ø20mm x 90mm DEPTH
FOR 60mm BACKSET


