Section 2 - 4
Product Information
3450-00-2002
long double cylinder
lost motion tailpiece
3450-00-2001
short double cylinder
lost motion tailpiece
3450-00-2000
single cylinder lost motion tailpiece
3450-80-2004
timing washer
3450-80-2003
spacing washer
1590-80-2000
SD/3A
4700-80-2001
SA/3B
4700-80-2002
S/3C

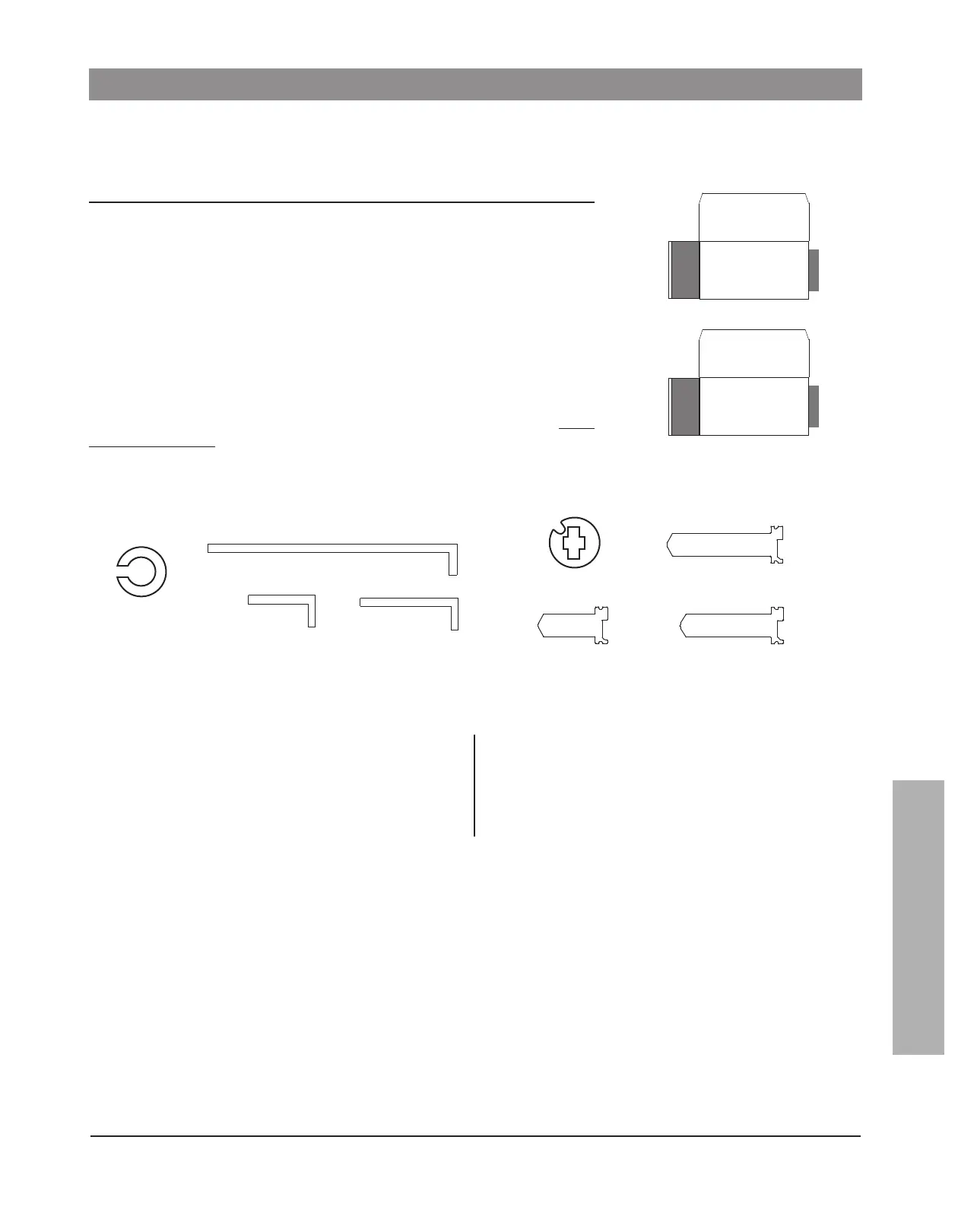

The “95” cylinder kit can be used to make the following. For details, please refer to the specific line drawing of
the product.
Manufacturer Lock Type Model #
Cal-Royal LSD single cyl. deadlock -01
Cal-Royal LSDD double cyl. deadlock -01
Falcon D series deadlocks -01
Falcon X series knobs/unit locks -21
Sargent 6 Line knobs, except Ball -10
Sargent 10 Line levers -10
Manufacturer Lock Type Model #
Sargent 2000 exit device trim -10
Sargent 6500 Line -10
Weiser D 9370/9470 series deadlocks -01
Yale 5300L grade 2 levers -95
Yale 5300LN grade 2 levers -56
Key-In-Knob Cylinders
Large diameter
plug requires
J or K series
bottom pins and
8144-00-3004
patent bottom pin.
Large diameter
plug requires
J or K series
bottom pins and
6140-00-3004
patent bottom pin.
The 8400-xx-1095 and 3400-XX-1095 cylinder kit with small diameter plug face (“95” kit)
8
400-xx-1095 uncombinated
8400-xx-1295-99 factory combinated
3400-xx-1095 uncombinated
3400-xx-1295-99 factory combinated
xx = Finish
Falcon applications require Falcon tailpiece kit, Kaba part number
4700-00-5109.
Falcon, Cal-Royal, LSDA, and Weiser deadlocks require OEM tailpieces.
The “95” cylinder kit is used for selected applications which require a small
diameter plug face.
The “95” kit includes a cylinder assembly and one each of the components
shown:
8400 Series
3400 Series
