Section 3 - 1
Key Cutting & Pinning
Cylinder Stamping, Marking, Lubrication & Tailpiece Installation
Stamping and Marking
Kaba Access Control recommends marking cylinders with an indelible marker. If stamping or engraving of
c
ast cylinders is unavoidable the stamped or engraved area must be coated with a clear acrylic enamel
(Krylon, fingernail polish, etc.). Application by brush is preferable, but spray is acceptable as long as care is
t
aken to reduce overspray. Key-in-knob cylinders should never be stamped
.
Cores should be stamped on
the top half of the shell. Mortise and rim cylinders should be stamped on the back of the shell.
Lubrication
Kaba recommends the use of Poxylube
®
(a dry spray) for all Peaks Preferred cylinders.

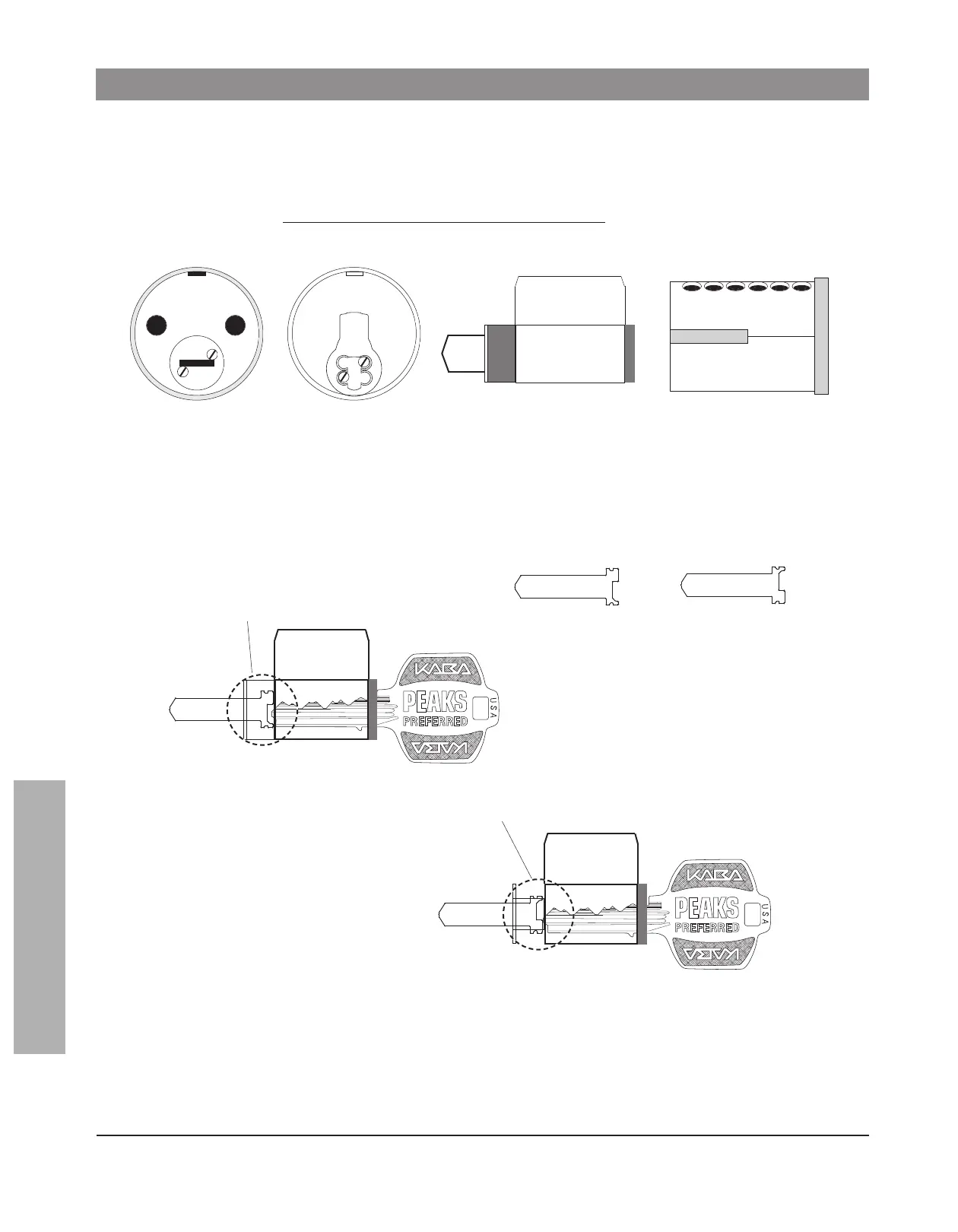

Tailpiece Installation
Interchangeable Core
Stamp here
Rim cylinder
Stamp here
Mortise cylinder
Tailpiece inserted correctly, allowing
tip of key full insertion.
Tailpiece inserted
upside down,
preventing full key
insertion.
When inserting tailpiece horizontally it can be
flipped either way for proper operation.
Do not stamp
anywhere
Key-in-Knob
cylinder
Correct Incorrect
Stamp here
