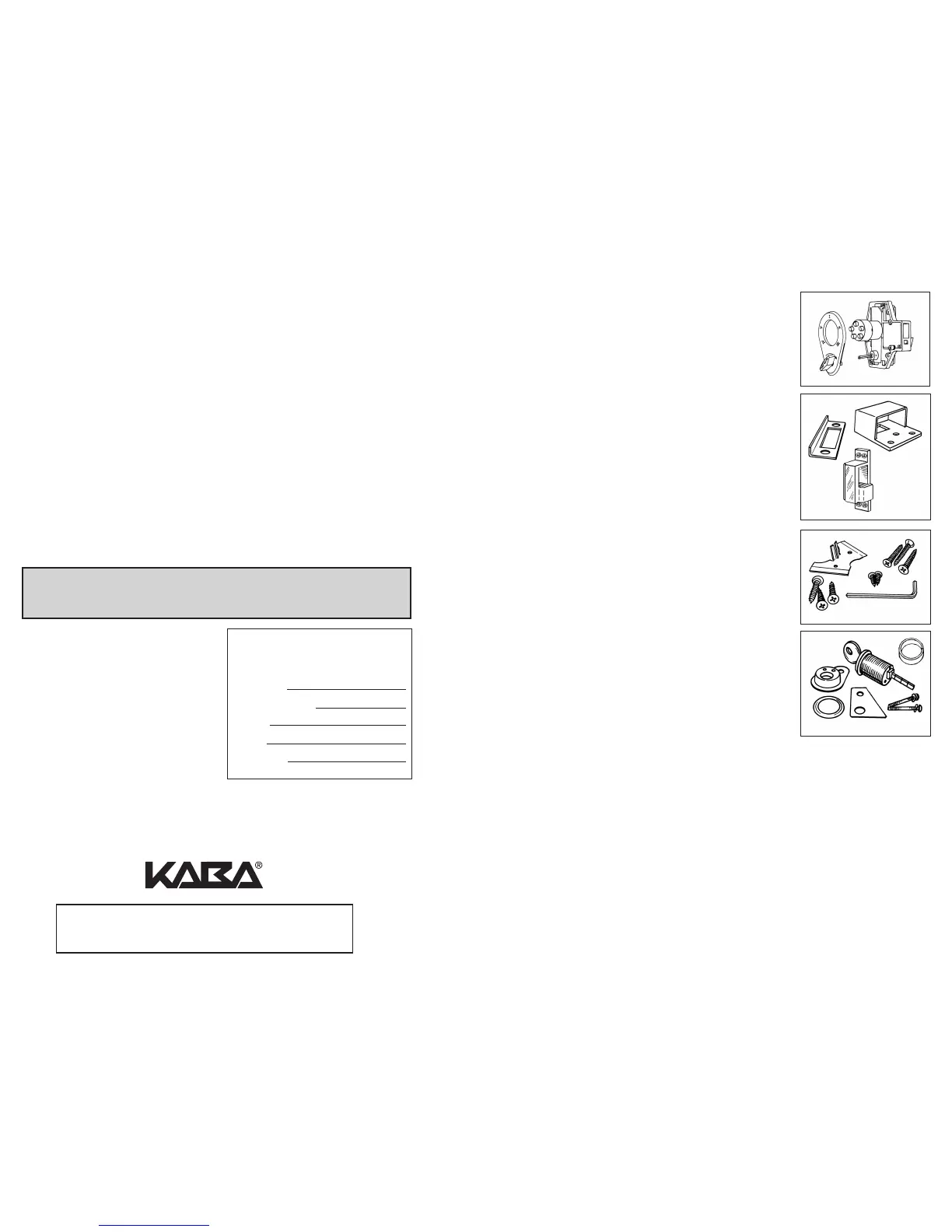

Checklist Each 900 Series lock includes:
A) Lock housing assembly
B) Face plate with outside knob
C) Strike plate (for outswing doors)
D) Strike box (for inswing doors)
E) Screw/accessory pack:
a) holding bracket
b) three 1
1
⁄2" (38 mm) screws
for the lock housing
c) two
1
⁄2" (13 mm) screws for
the holding bracket
d) Allen wrench
e) three 1" (25 mm) screws for
the strike box
F) Key override assembly Only included with
key override models (906, 910, 935, 938).
f) cup flange
g) key cylinder with key
h) two screws and washers
i) thin metal spacer
j) trim ring
k) Spacer ring
G) Surface Mount strike for steel door frames
(purchased separately)
Tools required:
Electric drill (variable speed recommended)
Awl or center punch
1
5
⁄8" (41 mm) Hole saw with pilot drill
7
⁄8" (22 mm) Hole saw with pilot drill
1
⁄8" (3 mm) Drill bit
Hammer
Phillips head screwdriver
Small flat blade screwdriver
1" (25 mm) Chisel
Pliers (2) for key override models only
2 3
For your records
Model No.:
Date Purchased:
Dealer:
Name:
Telephone:
Table of Contents
STEP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PAGE
Checklist/tools required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
A Determining the lock handing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B Marking the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
C Drilling the holes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
D Installing the key cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
E Installing the lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
F Installing the strike . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
G Testing the lock’s operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
H Changing the combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
I Disassembling the lock/reversing the latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
J Instructions for resetting unknown combination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
K Lever handle/panic hardware kits assembly instructions . . . . . . . . . . . . . . . . . . . . . . .13
L Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .center of book
Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back of book
Please read and follow all
directions carefully
Since correct installation is critical,
carefully check windows, frame,
door, etc. to make sure that the
recommended procedures will not
cause any damage.
KABA is not responsible for any
damage caused by installation.
Warning: The combination of this lock has been factory preset: II and IV
depressed together, then III. For your security, the combination must be
changed at time of installation.
For technical assistance please call
1-800-849-TECH (8324) or 336-725-1331
B
A
C
D
G
E
a
c
d
h
b
e
j
f
F
i
h
g
k
