MDM2010 – ILB3210 Installation Guide
16 | Page

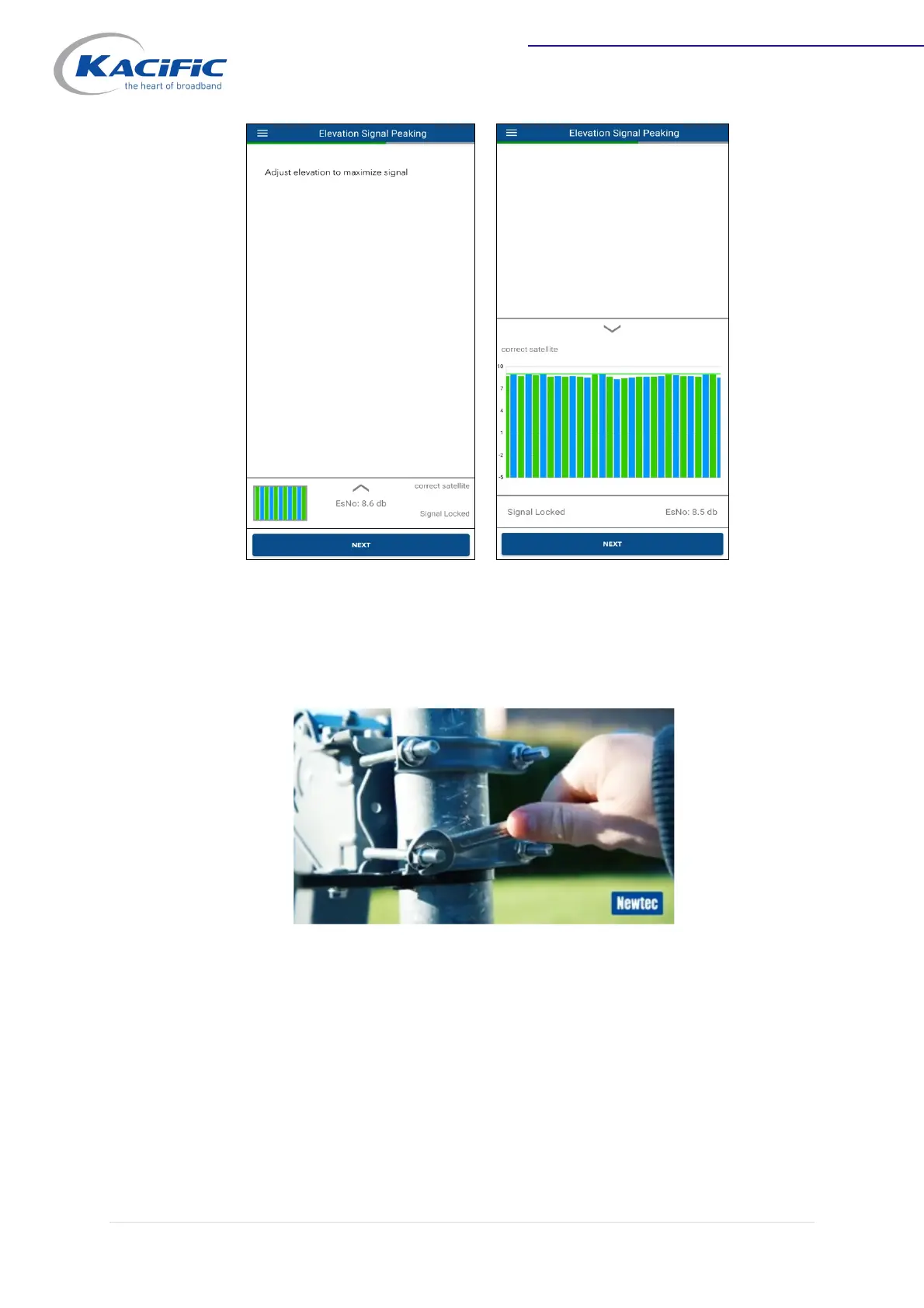

Stop when you hear a high-pitched tone. The satellite signal (EsNo) indicates a correct
signal. Click on "EsNo: xx db" to open the signal chart.
Tighten the rough azimuth screws.
Further adjust the dish azimuth by fine azimuth adjustment using an Allen key, slowly
in small steps, waiting a few seconds at each step to stabilize the received signal while
monitoring the satellite signal level. Stop when it reaches maximum EsNo (Azimuth
peaking signal).
