Kaco Blueplanet Series User Manual

TRACKSO WORKING
1. Insure correct connections as detailed in the installation guide.

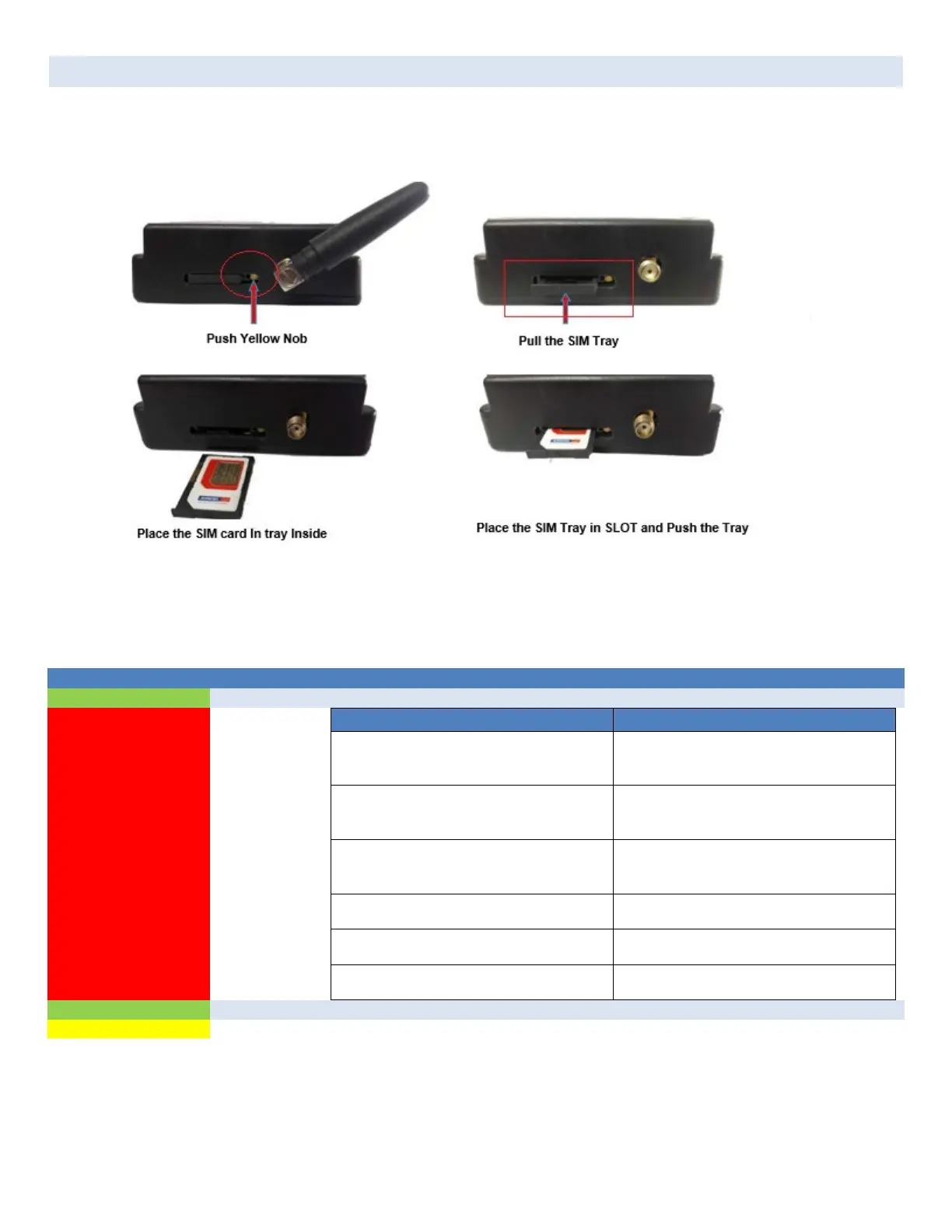

2. Insert the SIM card.
3. Switch on the power to the TrackSo device. (Minimum 12V/1A input is required)
4. Power LED (Red) of TrackSo IoT gateway glows and stays ON.
NOTE: TrackSo IoT Gateway will only be able to send data if the GPRS network is available at the installed location.
LED
NAME
DESCRIPTION
GREEN
POWER
Light when Power on the device
RED GSM
LED Status
Connection State
Flashing (ON for 100ms and OFF for
100ms)
SIM Card not found
Flashing (ON for 500ms and OFF for
500ms)
Searching for GSM Network
Flashing (ON for 0.1s and OFF for 2.9s)
Once at every 3sec
GSM Network Registered
Flashing twice at every 3sec
GPRS IP Connected
Flashing 5times
GPRS IP Sending data
LED OFF
GSM Fault
GREEN
COM TX
Blink on data transmission in RS485 port
YELLOW
COM RX
Blink on data reception in RS485 port

Kaco Blueplanet Series Specifications

General

Model	Blueplanet Series
Category	Inverter
Topology	Transformerless
Communication Interfaces	Wi-Fi
Protection Rating	IP65
Nominal Output Voltage	230 V
Output Frequency	50 Hz / 60 Hz
Operating Temperature Range	-25°C to +60°C
