KAESER TF 171E - Model TF 171 E; Model Tf210 E; Dimensions; Weights

15

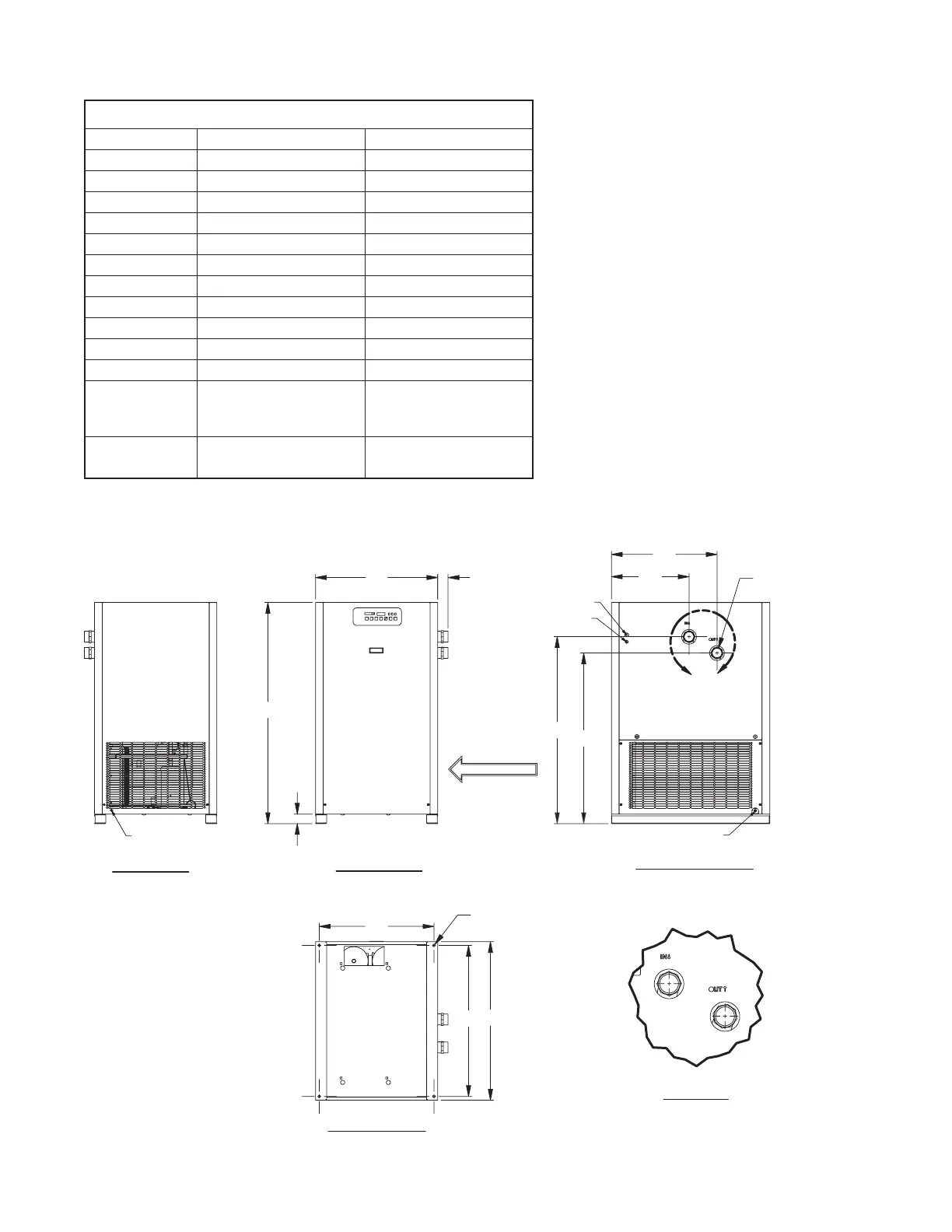

DIMENSIONS / WEIGHTS
NOTE: Dimensions and Weights are for reference only. Request certified drawings for construction purposes.
FRONT VIEW
BOTTOM VIEW
RIGHT SIDE VIEW
BACK VIEW
DETAIL A
A
"B"
"A"
"D"
"E"
"F"
"G"
"H"
"I"
"J"
"C"
Ø"K" MOUNTING HOLE
4-PLACES TYP.
"L” - I/O CONNECTIONS
2.500
CONDENSER AIR FLOW
Ø1.00 (25mm) ELECTRICAL ENTRY
Ø.750 (19mm) RS-232 ACCESS
0.25-NPT DRAIN CONNECTION
MODEL TF171E
0.25-NPT DRAIN CONNECTION
MODEL TF210E
Dimensions, inches (mm)
Model TF 171E TF 210E
A 58.06 (1475) 58.06 (1475)
B 32.15 (817) 32.15 (817)
C 2.77 (70) 2.77 (70)
D 30.15 (766) 30.15 (766)
E 39.62 (1006) 39.62 (1006)
F 41.62 (1057) 41.62 (1057)
G 20.44 (519) 20.44 (519)
H 27.79 (706) 27.79 (706)
I 49.06 (1246) 49.06 (1246)
J 44.78 (1137) 44.78 (1137)
K 0.63 (16) 0.63 (16)
L
Inlet/Outlet
Connections
2.5 MPT 2.5 MPT
Weight
lbs (kg)
691 (313) 734 (333)
