9.3.2 1-phase for 6-10 kW units

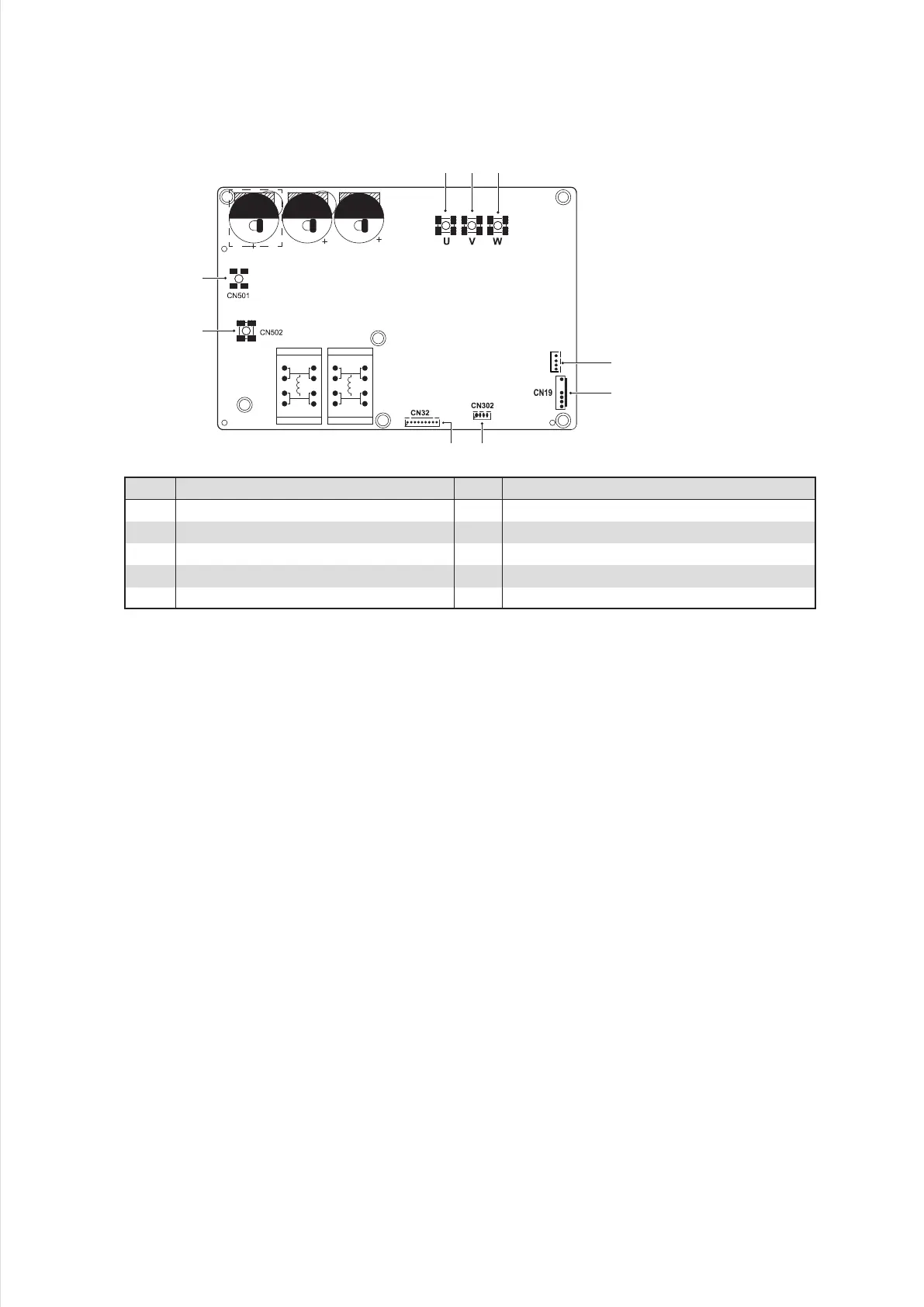

1) PCB A， 6-10kW，Inverter module
8
9
6
4
5
7
123
1
2
3
4
5
Assembly unit Assembly unitCode
Code
6
7
8
9
/ /
Port for fan(CN19)
Output port for +12V/9V(CN20)
Compressor connection port U
Compressor connection port V
Compressor connection port W
Reserved(CN302)
Port for communication with PCB B(CN32)
Input port L for rectifier bridge(CN501)
Input port N for rectifier bridge(CN502)
CN20
Remarks: for 6kw, two capacitors
