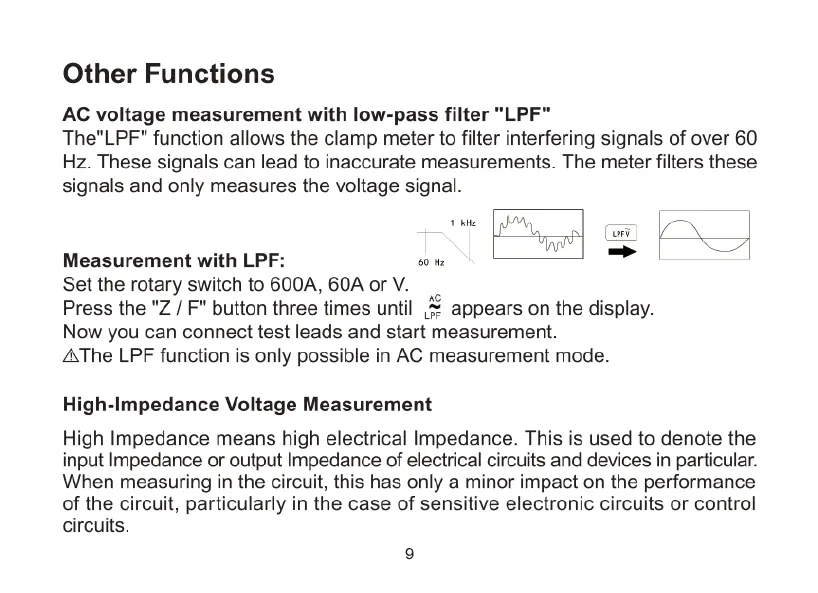

Other Functions
AC voltage measurement with low-pass filter "LPF"
The"LPF" function allows the clamp meter to filter interfering signals of over 60
Hz. These signals can lead to inaccurate measurements. The meter filters these
signals and only measures the voltage signal.
v [Jm
e [
B S
Measurement with LPF: 60 e
Set the rotary switch to 600A, 60A or V. ©
Press the "Z / F" button three times until 7 appears on the display.
Now you can connect test leads and start measurement.
AThe LPF function is only possible in AC measurement mode.
High-Impedance Voltage Measurement
High Impedance means high electrical Impedance. This is used to denote the
input Impedance or output Impedance of electrical circuits and devices in particular.
When measuring in the circuit, this has only a minor impact on the performance
of the circuit, particularly in the case of sensitive electronic circuits or control
circuits.
