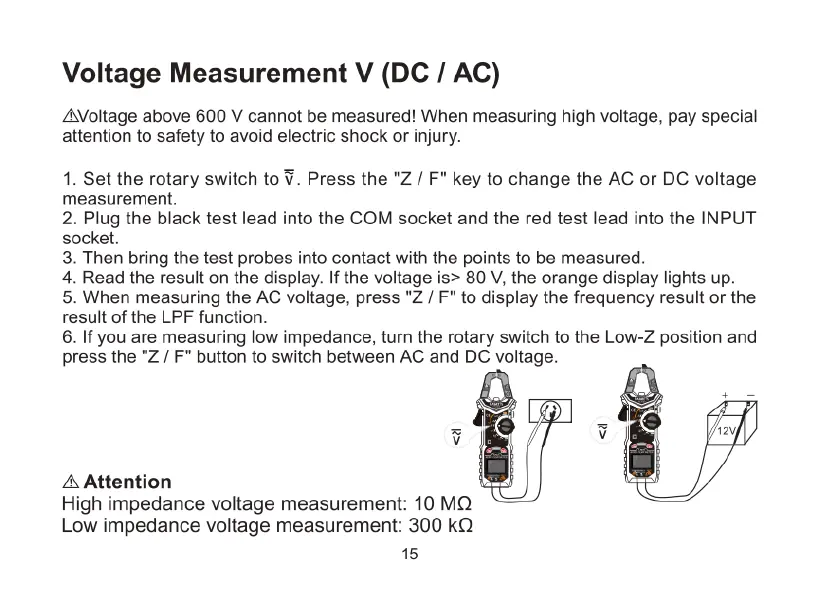

Voltage Measurement V (DC / AC)
AVoltage above 600 V cannot be measured! When measuring high voltage, pay special
attention to safety to avoid electric shock or injury.
1. Set the rotary switch to V. Press the "Z / F" key to change the AC or DC voltage
measurement.
2. Plug the black test lead into the COM socket and the red test lead into the INPUT
socket.
3. Then bring the test probes into contact with the points to be measured.
4. Read the result on the display. If the voltage is> 80 V, the orange display lights up.
5. When measuring the AC voltage, press "Z / F" to display the frequency result or the
result of the LPF function.
6. If you are measuring low impedance, turn the rotary switch to the Low-Z position and
press the "Z / F" button to switch between AC and DC voltage.
<
<
A Attention
High impedance voltage measurement: 10 MQ
Low impedance voltage measurement: 300 kQ
15
