Kaiweets HT206D - Frequency and Duty Cycle Measurements

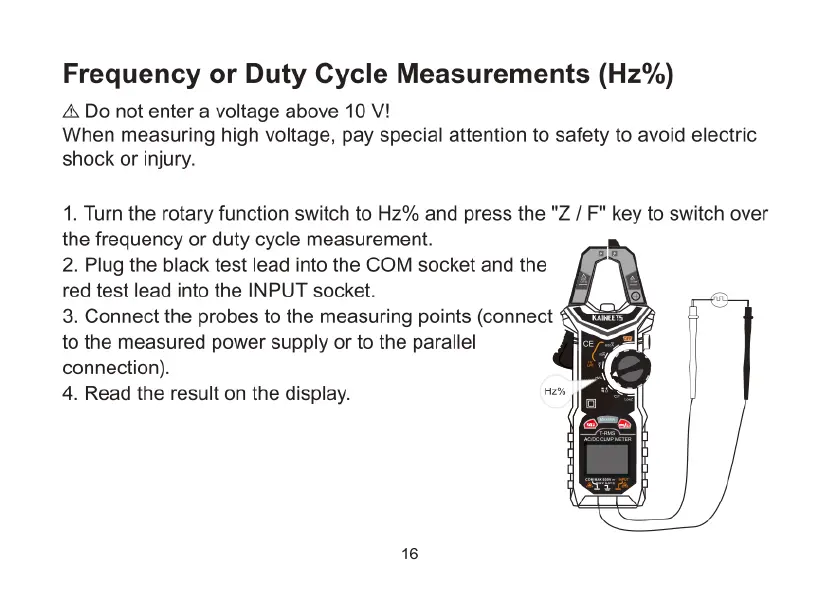

Frequency or Duty Cycle Measurements (Hz%)
A\ Do not enter a voltage above 10 V!
When measuring high voltage, pay special attention to safety to avoid electric
shock or injury.
1. Turn the rotary function switch to Hz% and press the "Z / F" key to switch over
the frequency or duty cycle measurement.
2. Plug the black test lead into the COM socket and the
red test lead into the INPUT socket.
3. Connect the probes to the measuring points (connect §
to the measured power supply or to the parallel
connection).
4. Read the result on the display. Hat
