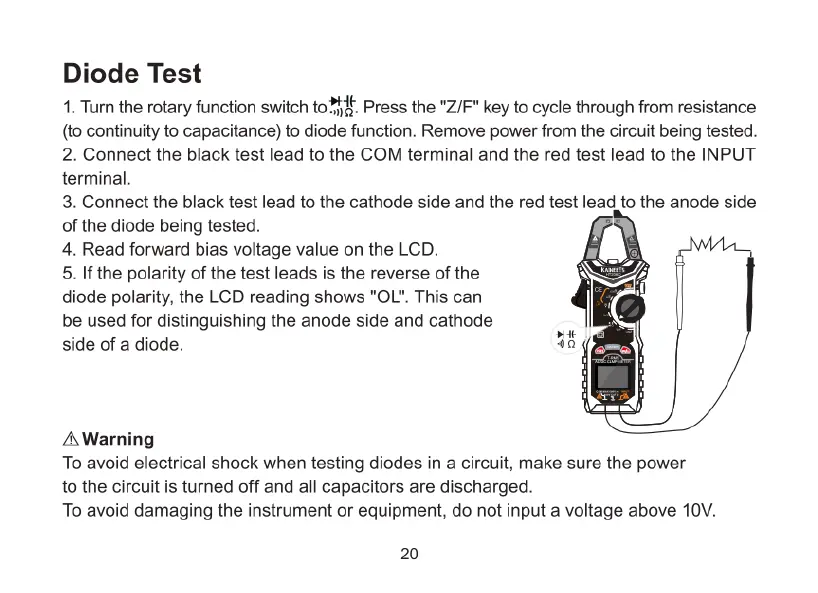

Diode Test
1. Turn the rotary function switch lo:,',}{'. Press the "Z/F" key to cycle through from resistance
(to continuity to capacitance) to diode function. Remove power from the circuit being tested.
2. Connect the black test lead to the COM terminal and the red test lead to the INPUT
terminal.
3. Connect the black test lead to the cathode side and the red test lead to the anode side
of the diode being tested.
4. Read forward bias voltage value on the LCD.
5. If the polarity of the test leads is the reverse of the
diode polarity, the LCD reading shows "OL". This can
be used for distinguishing the anode side and cathode
side of a diode.
AWarning
To avoid electrical shock when testing diodes in a circuit, make sure the power
to the circuit is turned off and all capacitors are discharged.
To avoid damaging the instrument or equipment, do not input a voltage above 10V.
20
