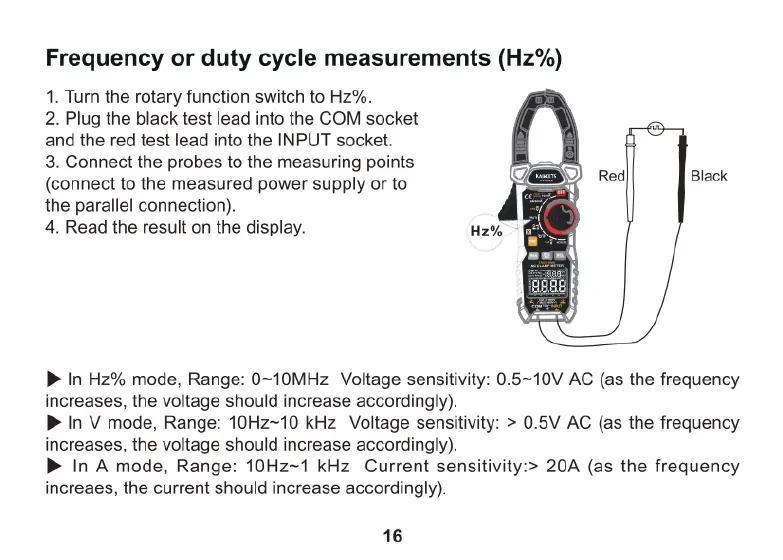

Frequency or duty cycle measurements (Hz%)
1. Turn the rotary function switch to Hz%.
2. Plug the black test lead into the COM socket
and the red test lead into the INPUT socket.
3. Connect the probes to the measuring points
(connect to the measured power supply or to
the parallel connection).
4. Read the result on the display.
Black
» In Hz% mode, Range: 0~10MHz Voltage sensitivity: 0.5~10V AC (as the frequency
increases, the voltage should increase accordingly).
» In V mode, Range: 10Hz~10 kHz Voltage sensitivity: > 0.5V AC (as the frequency
increases, the voltage should increase accordingly).
» In A mode, Range: 10Hz~1 kHz Current sensitivity:> 20A (as the frequency
increaes, the current should increase accordingly).
