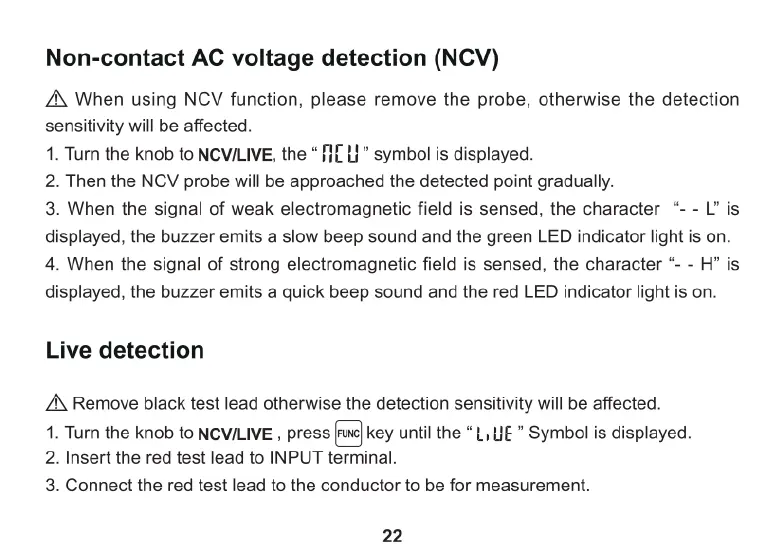

Non-contact AC voltage detection (NCV)
/\ When using NCV function, please remove the probe, otherwise the detection
sensitivity will be affected.
1. Turn the knob to NCVILIVE, the “[J{ L} " symbol is displayed.
2. Then the NCV probe will be approached the detected point gradually.
3. When the signal of weak electromagnetic field is sensed, the character “- - L"is
displayed, the buzzer emits a slow beep sound and the green LED indicator light is on.
4. When the signal of strong electromagnetic field is sensed, the character “- - H" is
displayed, the buzzer emits a quick beep sound and the red LED indicator light is on.
Live detection
A\ Remove black test lead otherwise the detection sensitivity will be affected.
1. Turn the knob to NCVILIVE , press [ruxc| key until the * 1, UE " Symbol is displayed.
2. Insert the red test lead to INPUT terminal.
3. Connect the red test lead to the conductor to be for measurement.
22
