Kaiweets KC601 - Page 15

Note: Overload protection: 250V.

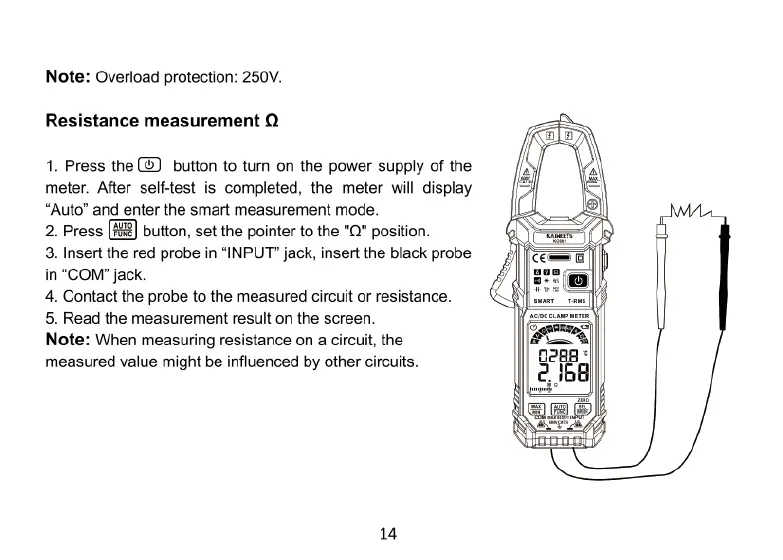

Resistance measurement Q
1. Press th button to turn on the power supply of the
meter. After self-test is completed, the meter will display
“Auto” and enter the smart measurement mode.
2. Press () button, set the pointer to the "Q" position.
3. Insert the red probe in “INPUT” jack, insert the black probe
in “COM" jack.
4. Contact the probe to the measured circuit or resistance.
5. Read the measurement result on the screen.
Note: When measuring resistance on a circuit, the
measured value might be influenced by other circuits.
14
