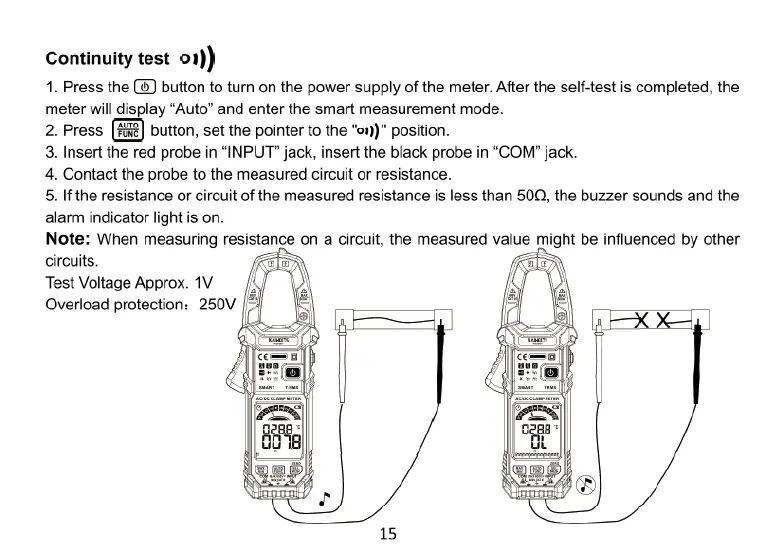

Continuity test ol))
button to turn on the power supply of the meter. After the self-test is completed, the
meter will display “Auto” and enter the smart measurement mode.
2. Press button, set the pointer to the "o1))" position.
3. Insert the red probe in “INPUT" jack, insert the black probe in “COM" jack.
4. Contact the probe to the measured circuit or resistance.
5. If the resistance or circuit of the measured resistance is less than 50Q, the buzzer sounds and the
alarm indicator light is on.
Note: When measuring resistance
circuits. Tlo
Test Voltage Approx. 1V /4 )
Overload protection: 250V [ S|
on a circuit, the measured value might be influenced by other
