Kaiweets KM601s - AC;DC Voltage Measurement

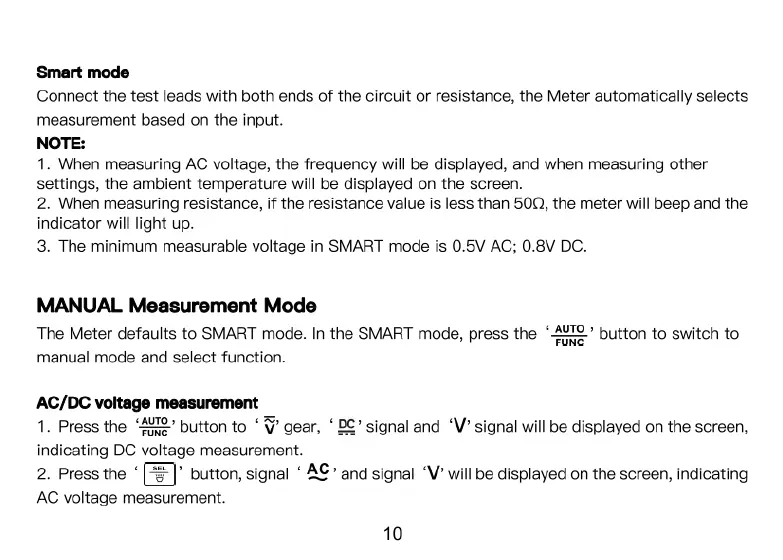

Smart mode
Connect the test leads with both ends of the circuit or resistance, the Meter automatically selects
measurement based on the input.
NOTE:
1. When measuring AC voltage, the frequency will be displayed, and when measuring other
settings, the ambient temperature will be displayed on the screen.
2. When measuring resistance, if the resistance value is less than 500Q, the meter will beep and the
indicator will light up.
3. The minimum measurable voltage in SMART mode is 0.5V AC; 0.8V DC.
MANUAL Measurement Mode
The Meter defaults to SMART mode. In the SMART mode, press the ‘%’ button to switch to
manual mode and select function.
AC/DC voltage measurement
1. Press the ‘A% bytton to * 37 gear, ‘DS signal and ‘V" signal will be displayed on the screen,
indicating DC voltage measurement.
2. Pressthe * button, signal < AC” and signal V"’ will be displayed on the screen, indicating
AC voltage measurement.
10
