The KAIWEETS ST600X & ST600Y Smart Digital Multimeter is a versatile and user-friendly tool designed for electrical measurements, offering both automatic (SMART) and manual measurement modes. It is built to conform to IEC61010-1 CAT.III 600V overvoltage safety standards and pollution level 2, ensuring safe operation in various environments.

Function Description

This multimeter is capable of performing a wide range of electrical tests, making it suitable for professionals and DIY enthusiasts alike. Its core functions include:

AC/DC Voltage Measurement: The device can accurately measure both alternating current (AC) and direct current (DC) voltages. In SMART mode, it automatically detects and selects the appropriate range for voltage measurements. In manual mode, users can specifically select DC or AC voltage settings.
Resistance Measurement: It measures electrical resistance, with the SMART mode automatically selecting the best resolution. A continuity test is integrated into resistance measurement, where the meter beeps and lights up if the resistance is less than 50Ω, indicating a continuous circuit.
Continuity Test: This function checks for the presence of a complete electrical path between two points. If the resistance is below 50Ω, the buzzer sounds, and an indicator light illuminates, displaying the measured resistance value.
Frequency/Duty Measurement: The multimeter can measure the frequency and duty cycle of AC signals, displaying both "Hz" and "%" signals on the screen.
Diode Test: This function allows for testing diodes to determine their forward and reverse bias characteristics. It displays the diode voltage drop, and an "OL" (Overload) signal is shown if the test leads are connected in reverse polarity.
Capacitance Measurement: It measures the capacitance of capacitors. Users are advised to discharge capacitors before measurement to prevent damage to the meter, and large capacitances may take longer to stabilize readings.
Temperature Measurement: With a K-type thermocouple probe, the device can measure temperature in both Celsius (°C) and Fahrenheit (°F).
Non-contact AC Voltage Detection (NCV): This safety feature allows users to detect the presence of AC voltage without direct contact. The meter indicates weak signals with a green light and a slow beep, and strong signals with a red light and a fast beep, displaying "---L" for weak and "---H" for strong signals.
Live Wire Detection: This function helps identify live wires. When the red probe is inserted into the appropriate jack and touches a live object, an indicator light illuminates, signaling a live connection.
AC/DC Current Measurement: The multimeter can measure both AC and DC currents. It automatically adjusts to the appropriate range when the leads are inserted into the "A" and "COM" jacks. For AC current, the frequency is displayed, and for DC current, the ambient temperature is shown. An "LEAD" signal appears if the test leads are connected incorrectly.

Usage Features

The KAIWEETS multimeter is designed for ease of use with several intuitive features:

SMART (AUTO) Measurement Mode: This is the default power-on mode, automatically detecting and measuring DC voltage, AC voltage, resistance, and continuity, and selecting the optimal range for the best resolution. This simplifies operation for general measurements.
Function Buttons: The device features dedicated buttons for navigation and control:
- Power Button: A long press (about 2 seconds) turns the meter on or off.
- Function Navigation Buttons (Left/Right Arrows): These allow users to select different functions in manual mode. A long press (about 2 seconds) on either of these buttons returns the meter to SMART mode.
- Data Hold Button (H): Toggles data holding on or off, allowing users to freeze the current reading on the display.
- Backlight Button (ST600X only): A long press (about 2 seconds) turns the backlight on or off, improving visibility in low-light conditions.
- Selection Button (SEL): Used to select specific functions within a measurement category (e.g., AC voltage vs. DC voltage, NCV vs. Live).
- Flashlight Button: A long press (about 2 seconds) turns the built-in flashlight on or off, providing illumination for the work area.
Auto Power Off: To conserve battery life, the meter automatically turns off after approximately 15 minutes of inactivity. A "beep" sound will be heard 1 minute before shutdown. This feature can be canceled by pressing and holding both the "SEL" and Power buttons simultaneously upon startup.
Jack Indication Lights: When switching to different functions, indicator lights above the corresponding input jacks flash, guiding users to insert the test leads correctly.
Clear LCD Screen: The LCD screen displays measurement results, symbols for selected functions (e.g., DC, AC, Ω, Hz, %), and warnings (e.g., FUSE, OL, LEAD).
Safety Warnings: The manual emphasizes critical safety precautions, such as not measuring voltages higher than 600V, paying attention to high voltage, and testing with a known voltage/current before use to confirm proper operation. It also advises connecting the common (COM) lead first and disconnecting the live lead first.

Maintenance Features

Proper maintenance ensures the longevity and accuracy of the multimeter:

Cleaning: The meter should be cleaned by turning off the power, removing test leads, and wiping the case with a damp cloth and mild detergent. It is crucial to keep the inside of the meter clean and dry to prevent electric shock or damage.
Battery Installation/Replacement: The device uses 4x1.5V AAA batteries. When the battery is low, a battery symbol appears on the screen, indicating the need for replacement. Users must remove test leads, unscrew and remove the battery door, install new batteries (paying attention to polarity), and then reattach the battery door.
- Battery Safety: Important warnings include replacing low batteries immediately to avoid inaccurate readings, not shorting or reversing battery polarity, and removing batteries during long periods of non-use to prevent leakage and damage.
Fuse Replacement: If the fuse is blown, a "FUSE" symbol will be displayed, and current testing will not work. To replace the fuse (F10A/250V), users must turn off the meter, remove probes, unscrew the back cover, replace the burnt-out fuse with a new one of the specified rating, ensure it's securely clamped, and then reattach the back cover.
- Fuse Safety: Only fuses with the specified amperage, interrupt voltage, and speed ratings should be used. The meter should not be operated with the back cover open.
Probe Maintenance: Users are advised not to use damaged test leads and to check for damaged insulation, exposed metal, or wear indicators. If the probe is damaged, it must be replaced with one of the same model and electrical specification to meet safety standards.

The KAIWEETS ST600X & ST600Y is a robust and reliable digital multimeter, offering comprehensive measurement capabilities with a focus on user safety and convenience through its smart features and clear operational guidelines.

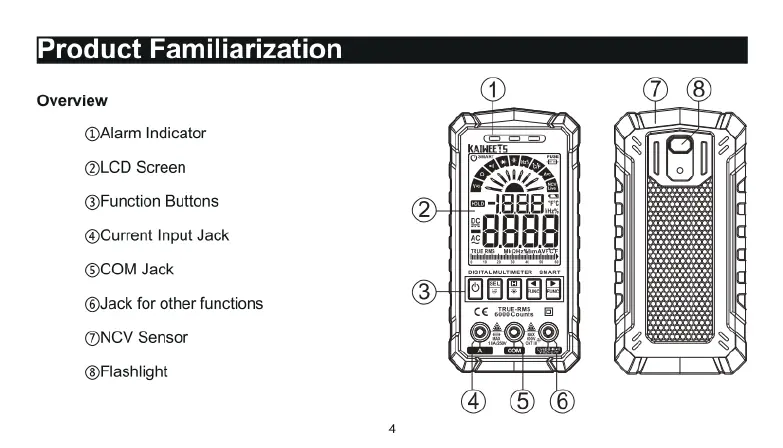

Kaiweets ST600X - Product Familiarization; Multimeter Overview
