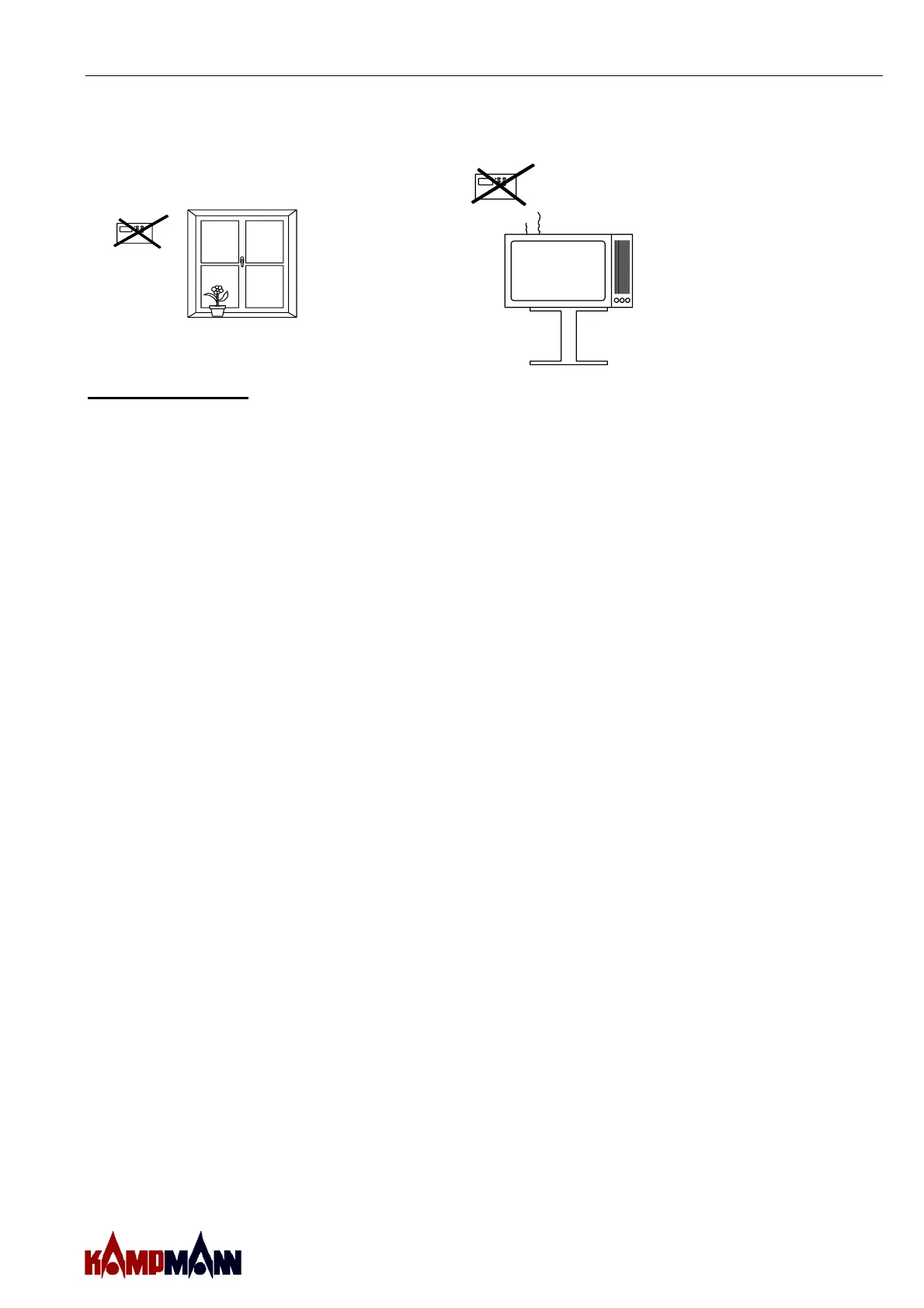

Please mount the thermostat correctly so that the average room temperature can be
measured. (Avoid air inlet or installation near windows and doors). The thermostat should be
placed in inner walls in an approximate height of 1.5 m.
10. Technical data
Type 30056/146910
Temperature range +5...+ 40°C
Temperature setback 2 ... 10K, adjustable
Temperature sensor KTY (internal)
or KTY (remote, please order separately)
Tolerance of sensor ±1K
Operating differential ±0,1...±3,0K adjustable
Proportional band 1...10K, adjustable
Width of pulse 1...15min, adjustable
Frost protection +5…+15°C, adjustable
Temperature resolution Nominal value 0,5K,
actual value 0,1K
Nominal temperature setting rotary knobs, menu
Programme positions 16
Timer Electronic 7-day timer
Battery storage reserve
1
approx. 4 hours
Visual indication LC-display
Operating voltage 230V AC (±10%)
Power consumption ca. 2VA
Relay contact 1 floating double-throw contact
Maximum permissible current 10(4)A, 230V AC
Electrical connections screw terminals
Electrical lifetime 0,5 x 10
5
switching operations
Max. permissible ambient temperature 0...+ 50°C
Storage temperature -10...+70°C
Enclosure: Material plastic
Protective kind IP 20
Protective class II in accordance with EN 60730
Dimensions 132 x 82 x 32mm (W x H x D)
Mounting Wall mounting or on flush box
Cable entry for surface wiring or rendering
Weight approx. 250 grams
1
The battery storage reserve only refers to time.
Any other parameter remain stored fix.
