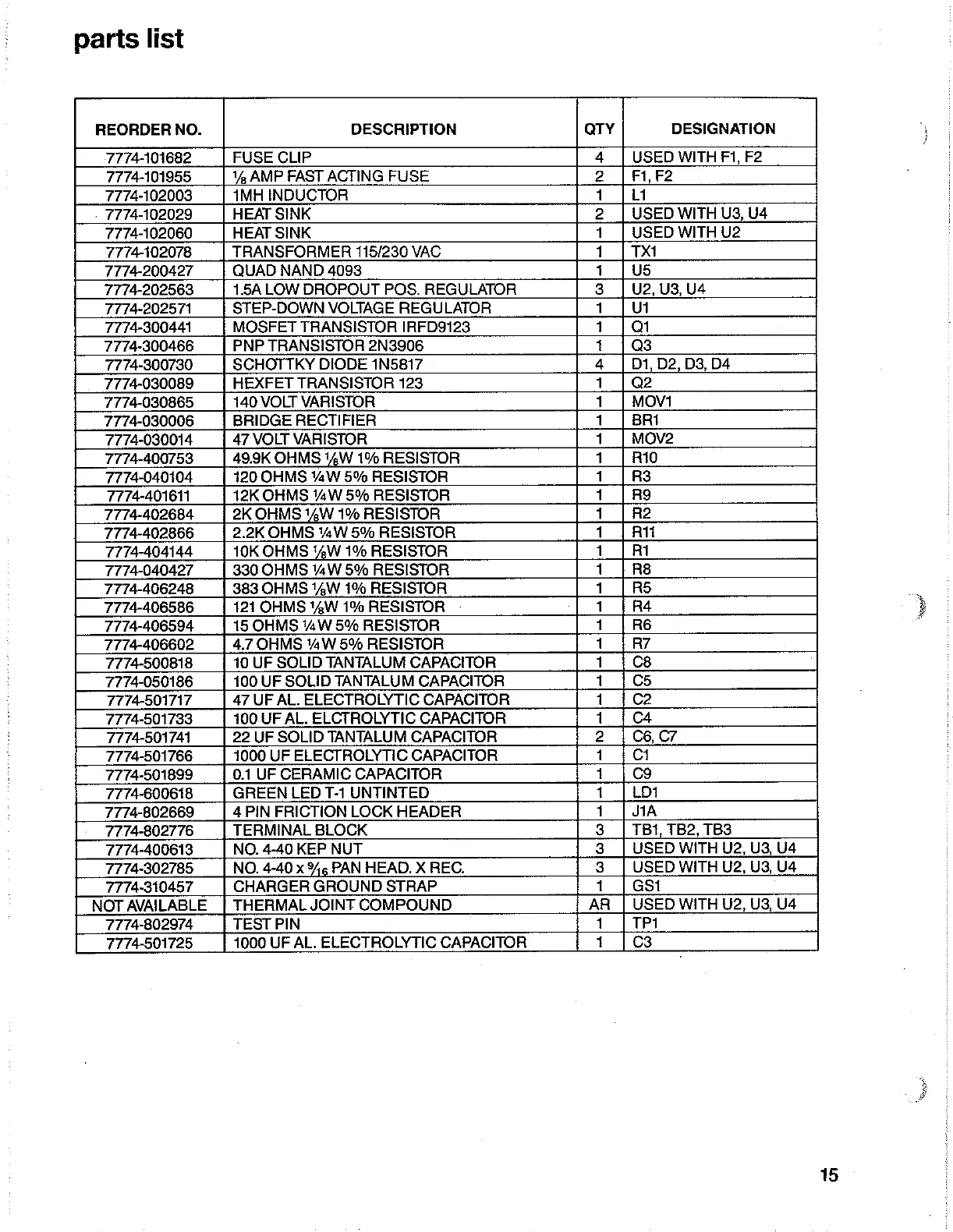

parts list
REORDER NO. DESCRIPTION QTY DESIGNATION
7774101682 FUSE CLIP 4 __| USED WITH F1, F2
7774-101955 18 AMP FAST ACTING FUSE 2 | Fi, F2
7774102003 1MH INDUCTOR 1 11
- 7714102029 HEAT SINK 2 | USEDWITMU3,U4
7774102060 HEAT SINK 1 USED WITH U2
7774102078 TRANSFORMER 115/230 VAC 1 (TX
7774-200427 QUAD NAND 4093 1 US
7774-202563 1.5A LOW DROPOUT POS. REGULATOR 3 | U2, U3, U4
7774-202571 STEP-DOWN VOLTAGE REGULATOR 1 ui
7774-300441 MOSFET TRANSISTOR IRFD9123 1 οἱ
7774-300466 PNP TRANSISTOR 2N3906 1 |Q3
7774-300730 SCHOTTKY DIODE 1N5817 4 | Di, D2, D3, D4
7774-030089 HEXFET TRANSISTOR 123 1 02
7774-030865 140 VOLT VARISTOR 1 MOVI
7774-030006 BRIDGE RECTIFIER 1 BRI
7714-030014 47 VOLT VARISTOR 1 MOV2
7774-400753 49.9K OHMS 4W 1% RESISTOR 1 Rio
7774-040104 120 OHMS %W 5% RESISTOR 1 АЗ
7774-401611 12K OHMS %4W 5% RESISTOR 1 Rg
7774-402684 2K OHMS WW 1% RESISTOR 1 R2
7774-402866 2.2K OHMS Ya W 5% RESISTOR 1 ATİ
7774-404144 10K OHMS 74W 1% RESISTOR 1 RI
7774-040427 330 OHMS WW 5% RESISTOR 1 R8
7774-406248 383 OHMS 14W 1% RESISTOR 1 RS
7774-406586 121 OHMS 14W 1% RESISTOR 1 R4
7774-406594 15 OHMS %4W 5% RESISTOR 1 R6
7774-406602 4.7 OHMS %4W 5% RESISTOR 1 R7
7774-500818 10 UF SOLID TANTALUM CAPACITOR 1 C8
7774-050186 100 UF SOLID TANTALUM CAPACITOR i C5
7774-501717 47 UF AL. ELECTROLYTIC CAPACITOR 1 C2
7774-501733 100 UF AL. ELCTROLYTIC CAPACITOR 1 C4
7774-501741 22 UF SOLID TANTALUM CAPACITOR 2 | С6, С7
7774-501766 1000 UF ELECTROLYTIC CAPACITOR 1 C1
7774-501899 0.1 UF CERAMIC CAPACITOR 1 C9
7774-600618 GREEN LED T-1 UNTINTED 1 LDI
7774-802669 4 PIN FRICTION LOCK HEADER 1 | JIA
7774-802776 TERMINAL BLOCK 3 | TB1,TB2, TB3
7774-400613 NO. 4-40 KEP NUT 3_ | USED WITH U2, U3, U4
7774-302785 NO. 4-40 x % PAN HEAD. X REC. 3. | USED WITH U2, U3, U4
7774-310457 CHARGER GROUND STRAP 1 GS1
NOT AVAILABLE | THERMAL JOINT COMPOUND AR | USED WITH U2, U3, U4
7774-802974 TEST PIN 1 TP1
7774-501725 1000 UF AL. ELECTROLYTIC CAPACITOR C3
