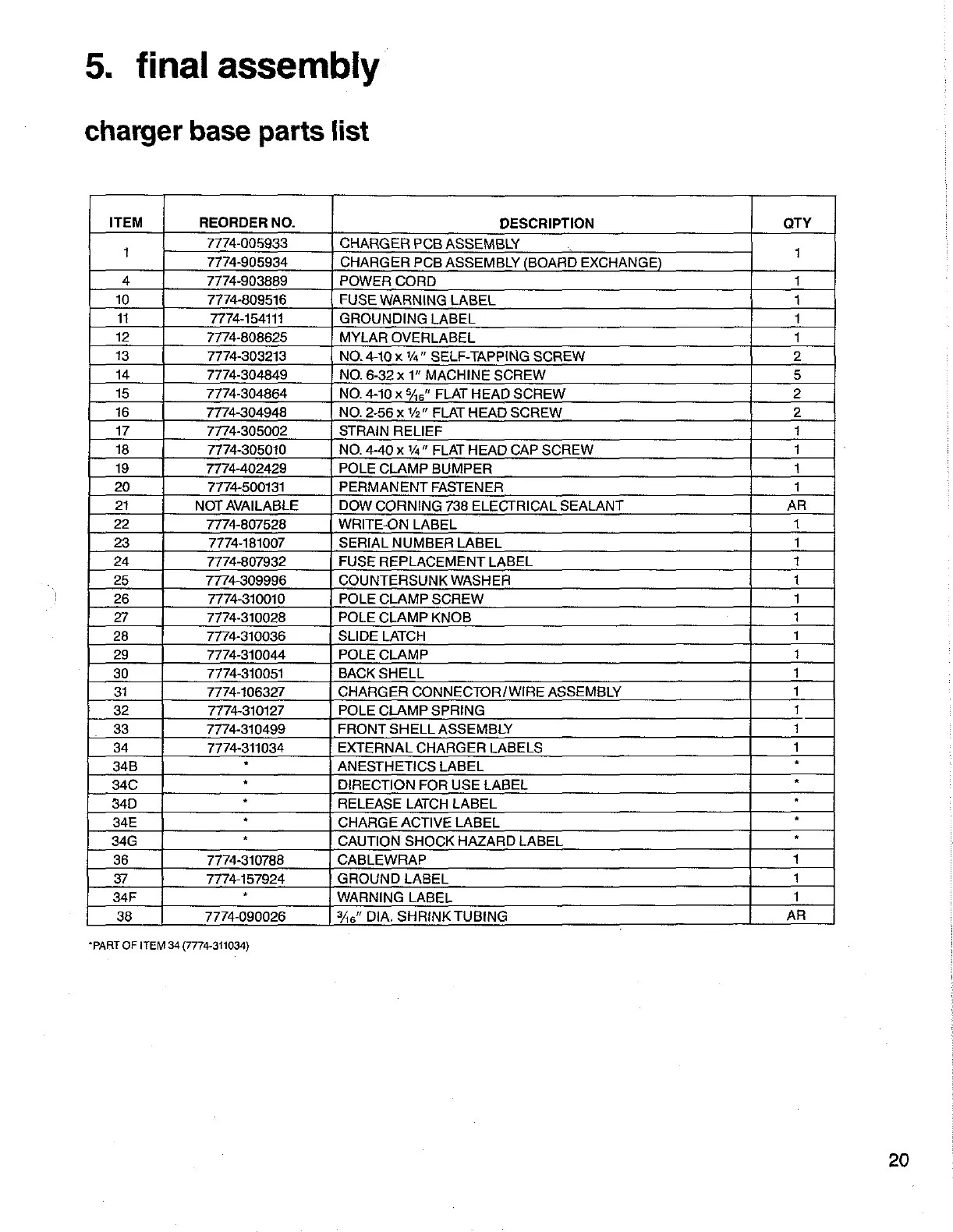

5. final assembly
charger base parts list
ITEM REORDER NO. DESCRIPTION QTY
1 7774-005933 CHARGER PCB ASSEMBLY 1
7774-905934 CHARGER PCB ASSEMBLY (BOARD EXCHANGE)
4 7774-903889 POWER CORD 1
10 7774-809516 FUSE WARNING LABEL 1
11 7774-154111 GROUNDING LABEL 1
12 7774-808625 MYLAR OVERLABEL 1
13 7774-303213 NO. 4-10 x 4" SELF-TAPPING SCREW 2
14 7774-304849 NO. 6-32 x 1” MACHINE SCREW 5
15 7774-304864 NO. 4-10 x 46” FLAT HEAD SCREW, 2
16 7774-304948 NO. 2-56 x 2" ELAT HEAD SCREW 2
17 7774-305002 STRAIN RELIEF 1
18 7774-305010 NO. 4-40 x 4%" FLAT HEAD CAP SCREW 1
19 7774-402429 POLE CLAMP BUMPER 1
20 7774-500131 PERMANENT EASTENER 1
21 NOT AVAILABLE DOW CORNING 738 ELECTRICAL SEALANT AR
22 7774-807528 WRITE-ON LABEL 1
23 7774-181007 SERIAL NUMBER LABEL 1
24 7774-807932 FUSE REPLACEMENT LABEL 1
25 7774-309996 COUNTERSUNK WASHER 1
26 7774-310010 POLE CLAMP SCREW 1
27 7774-310028 POLE CLAMP KNOB 1
28 7774-310036 SLIDELATCH 1
29 7774-310044 POLE CLAMP 1
30 7774-310051 BACK SHELL 1
31 7774406327 CHARGER CONNECTOR/WIRE ASSEMBLY 1
32 7774-310127 POLE CLAMP SPRING 1
33 7774-310499 FRONT SHELL ASSEMBLY 1
34 7774-311034 EXTERNAL CHARGER LABELS 1
34B * ANESTHETICS LABEL *
34C * DIRECTION FOR USE LABEL *
34D * RELEASE LATCH LABEL *
ЗАЕ 3 CHARGE ACTIVE LABEL *
34G * CAUTION SHOCK HAZARD LABEL È
36 7774-310788 CABLEWRAP 1
37 7774157924 GROUND LABEL 1
34F * WARNING LABEL 1
38 7774-090026 Ys” DIA, SHRINK TUBING AR
*PART OF ITEM 34 (7774-311034)
