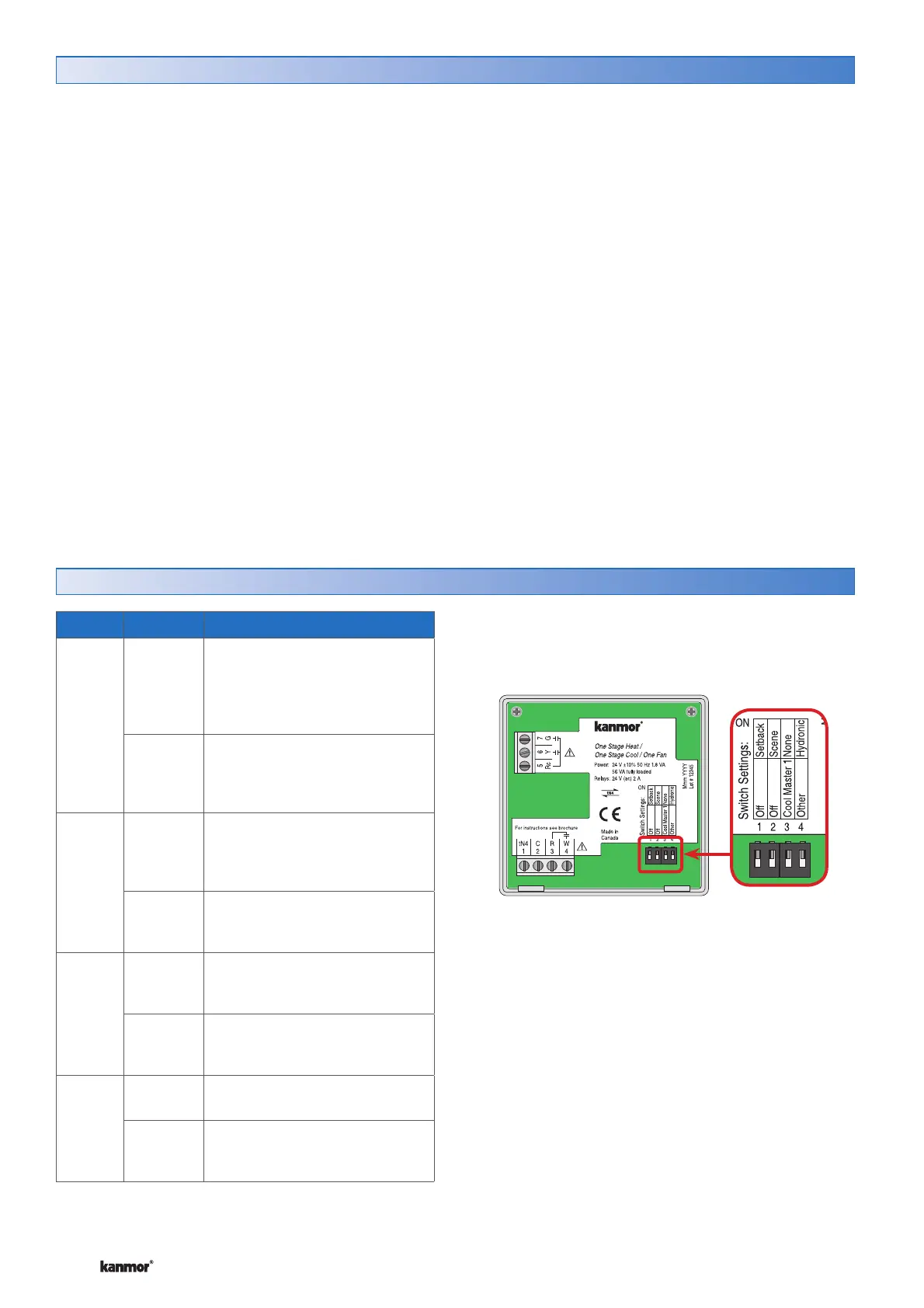

Display and Switch Settings
Switch Settings
12 34
tNt 540e
540e
1001-07
12 34
Switch Position Action
1
ON
Setback
The thermostat follows a
programmable setback
schedule as a schedule
member if available.
OFF
OFF
The thermostat does not follow
a programmable setback
schedule.
2
ON
Scene
The thermostat responds to
changes in the scene (system
wide manual overrides).
OFF
OFF
The thermostat does not
respond to scenes.
3
ON
None
The thermostat is not part of a
cooling group.
OFF
Cool Master 1
The thermostat is a master of
cooling group number 1.
4
ON
Hydronic
Hydronic heat source.
OFF
Other
Other heat source (Furnace,
Electric).
*Read the Sequence of Operation for detailed information on
each of the switch setting features.
