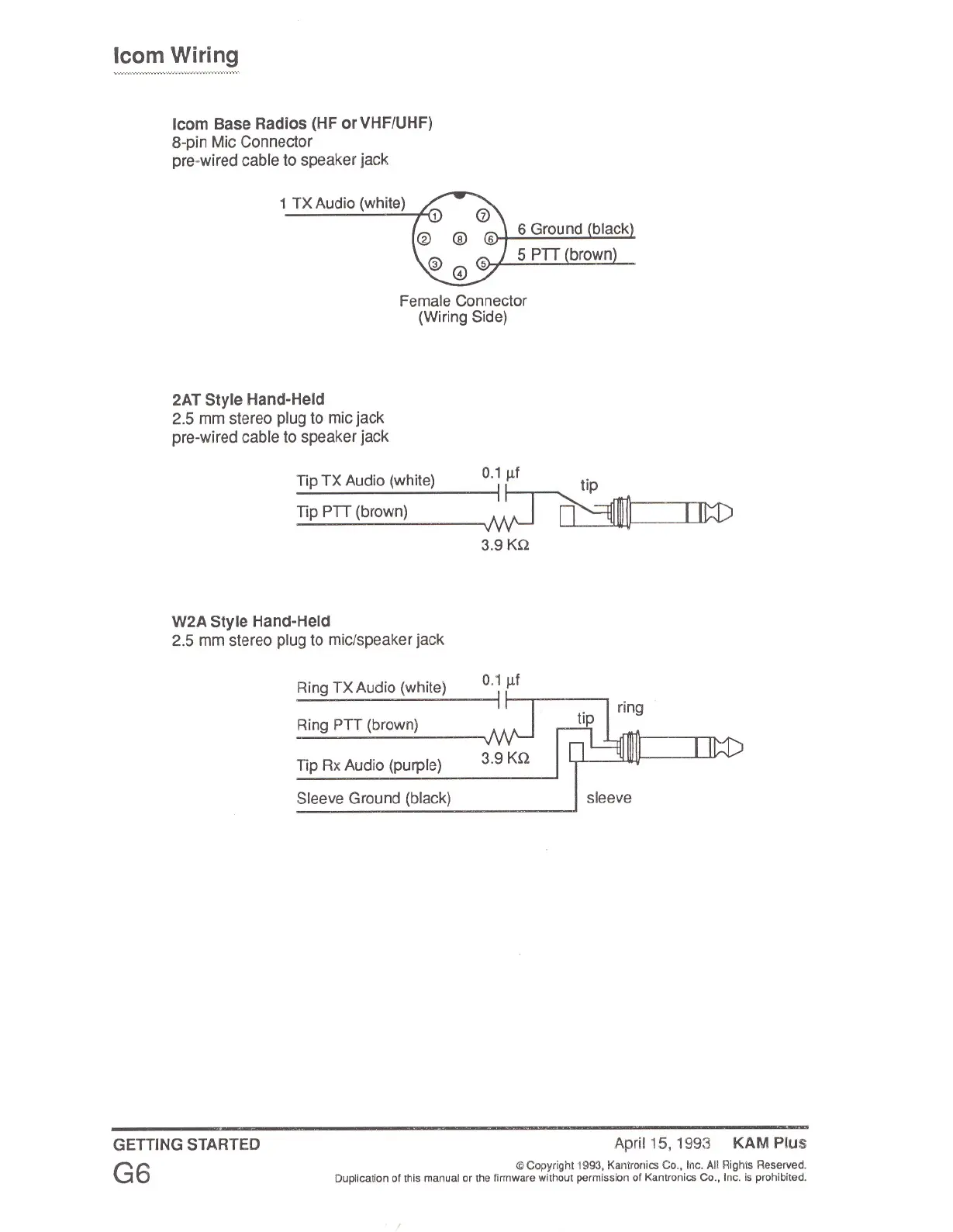

leom Wiring
Icom Base Radios (HF or VHF/UHF)
8-pin Mic Connector
pre-wired cable to speaker jack
1 TX Audio (white)
Female Connector
(Wiring Side)
2AT Style Hand-Held
2.5 mm stereo plug to mic jack
pre-wired cable to speaker jack
Tip TX Audio (white)
Tip PTT (brown)
3.9Kn
W2A Style Hand-Held
2.5 mm stereo plug to mic/speaker jack
Ring TX Audio (white)
Ring PTT (brown)
Tip Rx Audio (purple)
Sleeve Ground (black)
sleeve
GETTING STARTED
G6
April15, 1993 KAM Plus
© Copyright 1993, Kantronics Co., Inc. All Rights Reserved.
Duplication of this manual or the firmware without permission of Kantronics Co., Inc. is prohibited.
