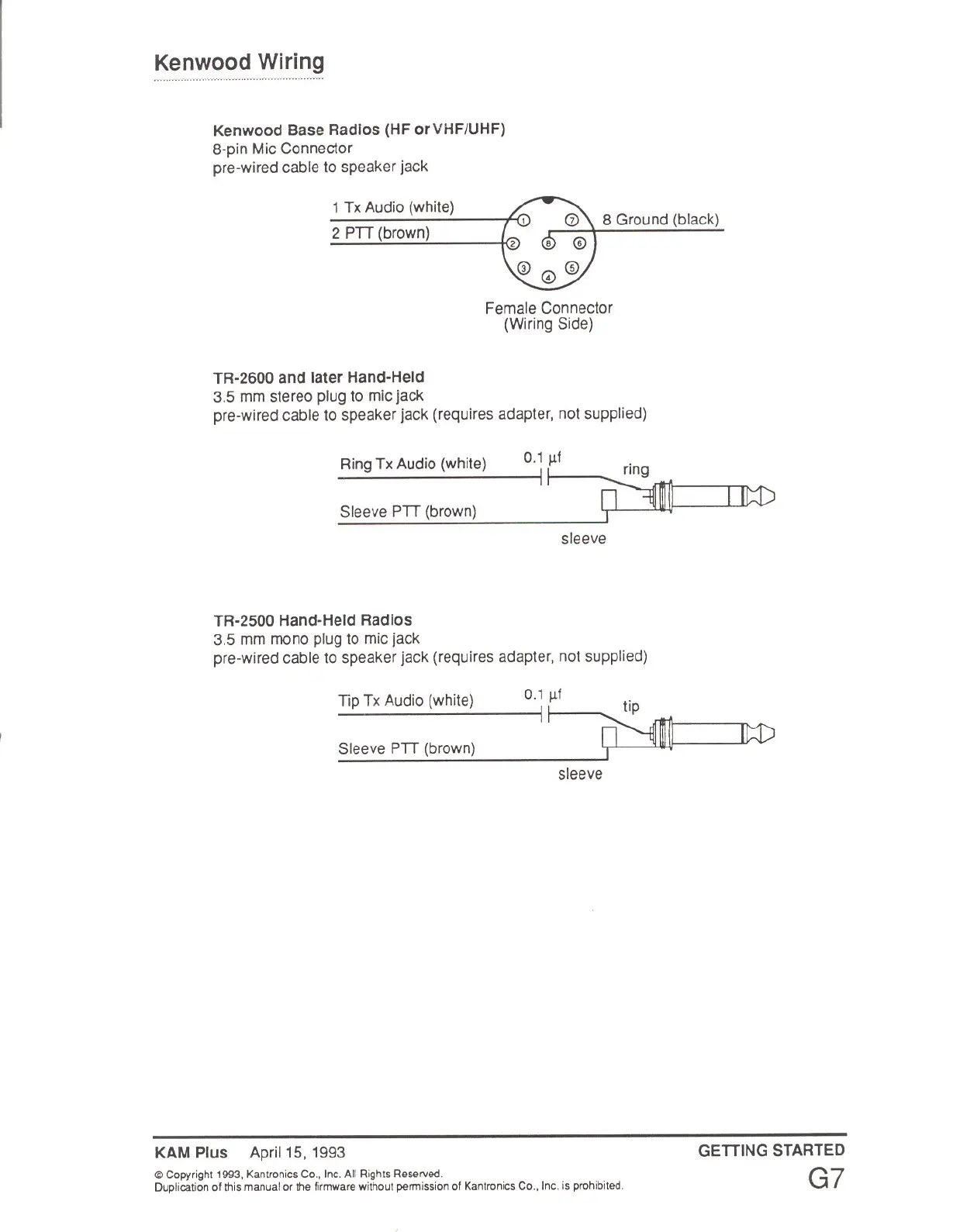

Kenwood Wiring
Kenwood Base Radios (HF orVHF/UHF)
8-pin Mic Connector
pre-wired cable to speaker jack
1 Tx Audio (white)
2 PTT (brown)
8 Ground (black)
Sleeve PTT (brown)
Sleeve PTT (brown)
Female Connector
(Wiring Side)
TR-2600 and later Hand-Held
3.5 mm stereo plug to mic jack
pre-wired cable to speaker jack (requires adapter. not supplied)
Ring Tx Audio (white)
0., rf ring
~ I
sleeve
TR-2500 Hand-Held Radios
3.5 mm mono plug to mic jack
pre-wired cable to speaker jack (requires adapter, not supplied)
Tip Tx Audio (white) 0.1
I1f .
--------11 tip
~I--- _W
sleeve
KAM Plus April 15, 1993
© Copyright 1993, Kantronics Co., Inc. All Rights Reserved.
Duplication of this manual or the firmware without permission of Kantronics Co., Inc. is prohibited.
GETTING STARTED
G7
