ROiK-10
OR

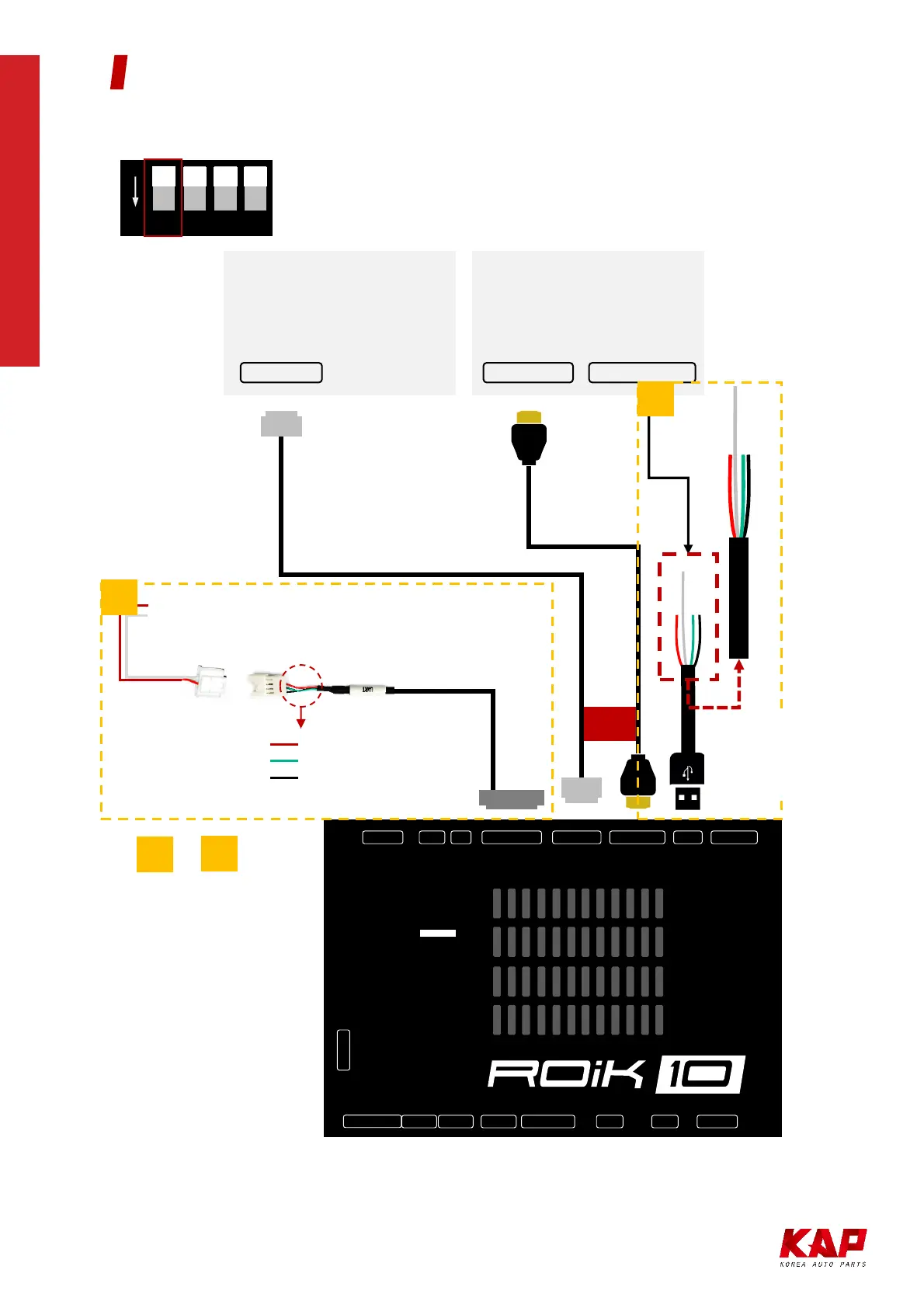

CABLE CONNECTION – Interface UART Touch
ANDROID
NAVIGATION
POWER UART LVDS OUT RGB OUT AV IN/OUT SW GPS WIFI/BT
DEBUG
MODE SW
R-KEY USB3.0 T-KEY HDMI OUT USB2 USB1 MicroSD
ROiK UART RX connect with UART TX
ROiK UART TX connect with UART RX
TX
RX
UART TX
UART RX
GND
Use UART Touch
※ UART Touch
DIP S/W 1 = OFF
1 2
ON
3 4
DIGITAL LVDS
INTERFACE
LVDS IN UART TX
RGB
INTERFACE
RGB IN
Cut the USB-Cable
Connect white-cable
of USB-Cable to the
interface.
1
2
Use one or two methods
depend on protocol
1
2
