Mrcher
570
Oil leakage

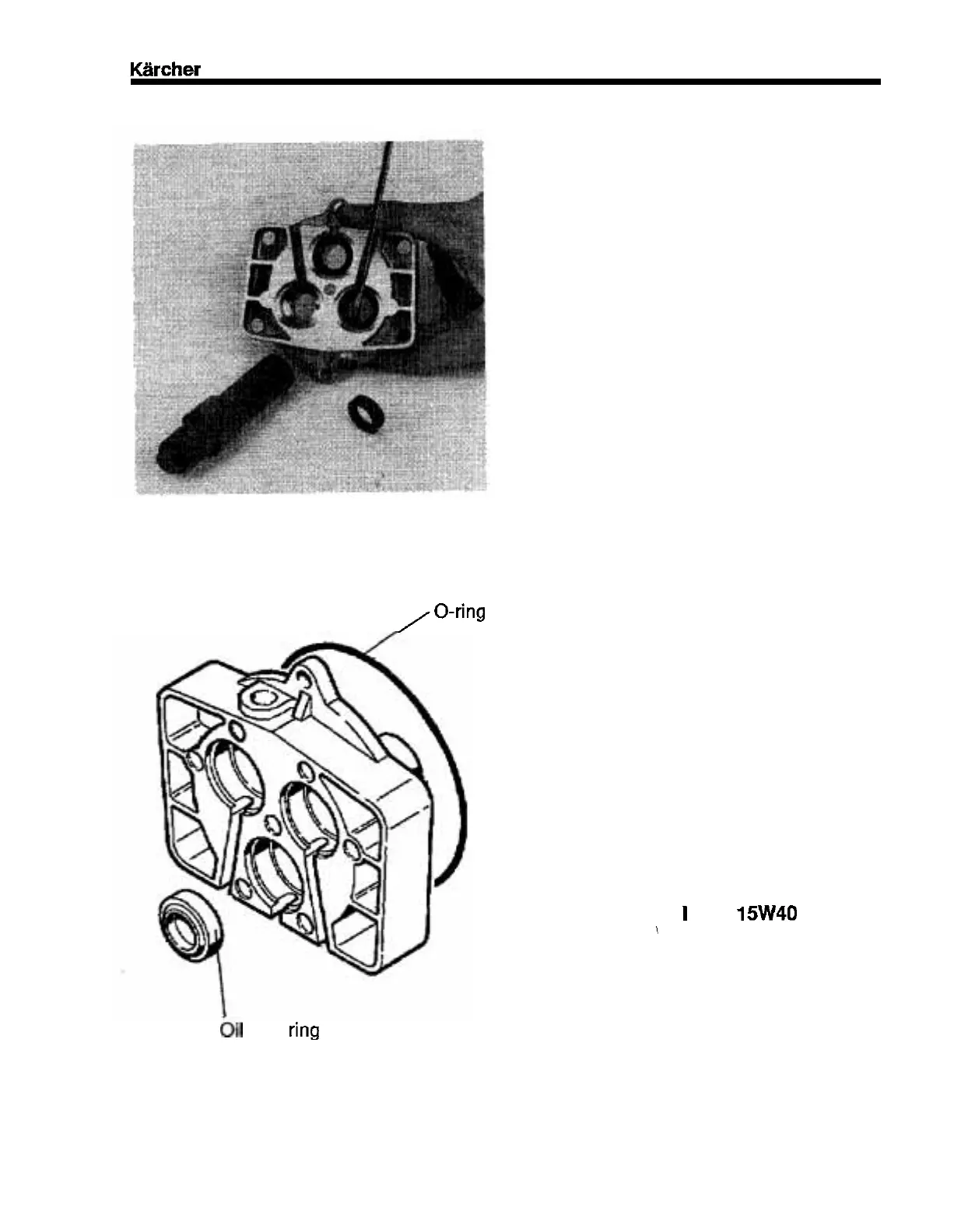

Pass a screwdriver through the leakage
grooves and lever out the oil seal rings.
Caution: Take care not to damage the
sealing surfaces in the guide.
Remove the O
-
ring.
Clean the housing.
Note: The new oil seal rings should be
soaked in water for some time before
/O-ring they are fitted.
Without applying any grease, fit the oil
seal rings in the housing using the
special tool.
Coat the O
-
ring with silicon grease and
place it in the groove of the housing.
Insert the pistons and springs in the
housing.
Pull the housing evenly into place by
means of the assembly screws.
Fill
with app.
0.2
1
SAE
15W40
(6.288
-
050).
1
Refit oil drain plug.
oil
seal ring
