BR/BD 55/60 WP Machine functions
Service Information International 02.2003

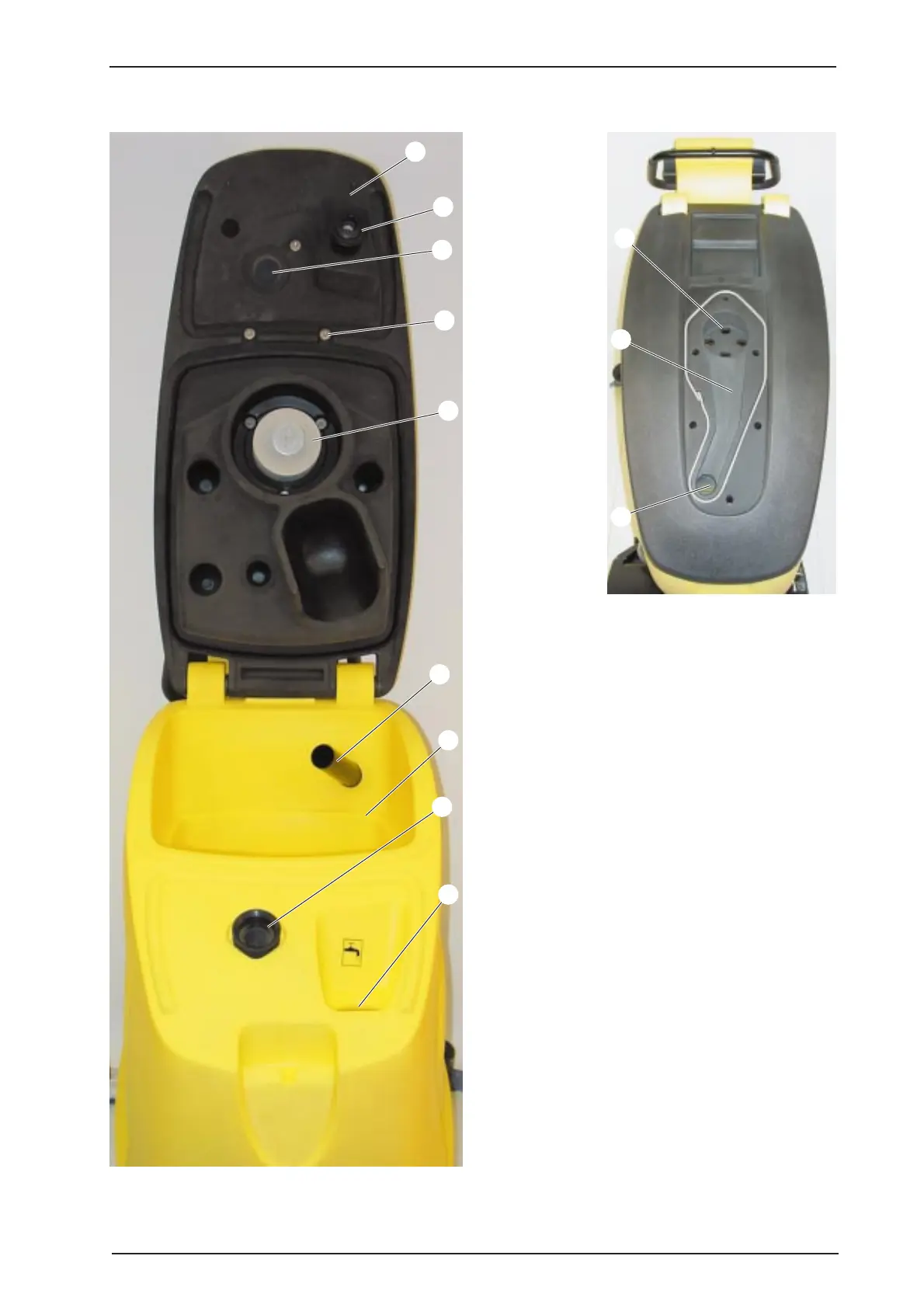

Waste water tank
1 Cover, waste water tank
2 Seal, fresh water tank inlet
3 Suction channel, air outlet
4 Fastening screws, suction channel cover
5 Float, mechanical
6 Suction tube, waste water from suction beam
7 Waste water tank
8 Air intake with fluff strainer, suction motor
9 Tank inlet, fresh water
10 Suction channel, air inlet
11 Suction channel
Cover lifted
View from above, after removing
the suction channel cover
1
2
4
5
6
7
3
9
8
10
11
3
