BR/BD 55/60 WP Machine functions
Service Information International 02.2003
Brush head (BR version)
Electric connection
The terminal strip EXT-X2 is located on top of the
brush head. The M1 and M2 brush motors are
connected at this location.
Terminal strip EXT-X2, electrical connection for the
brush motors

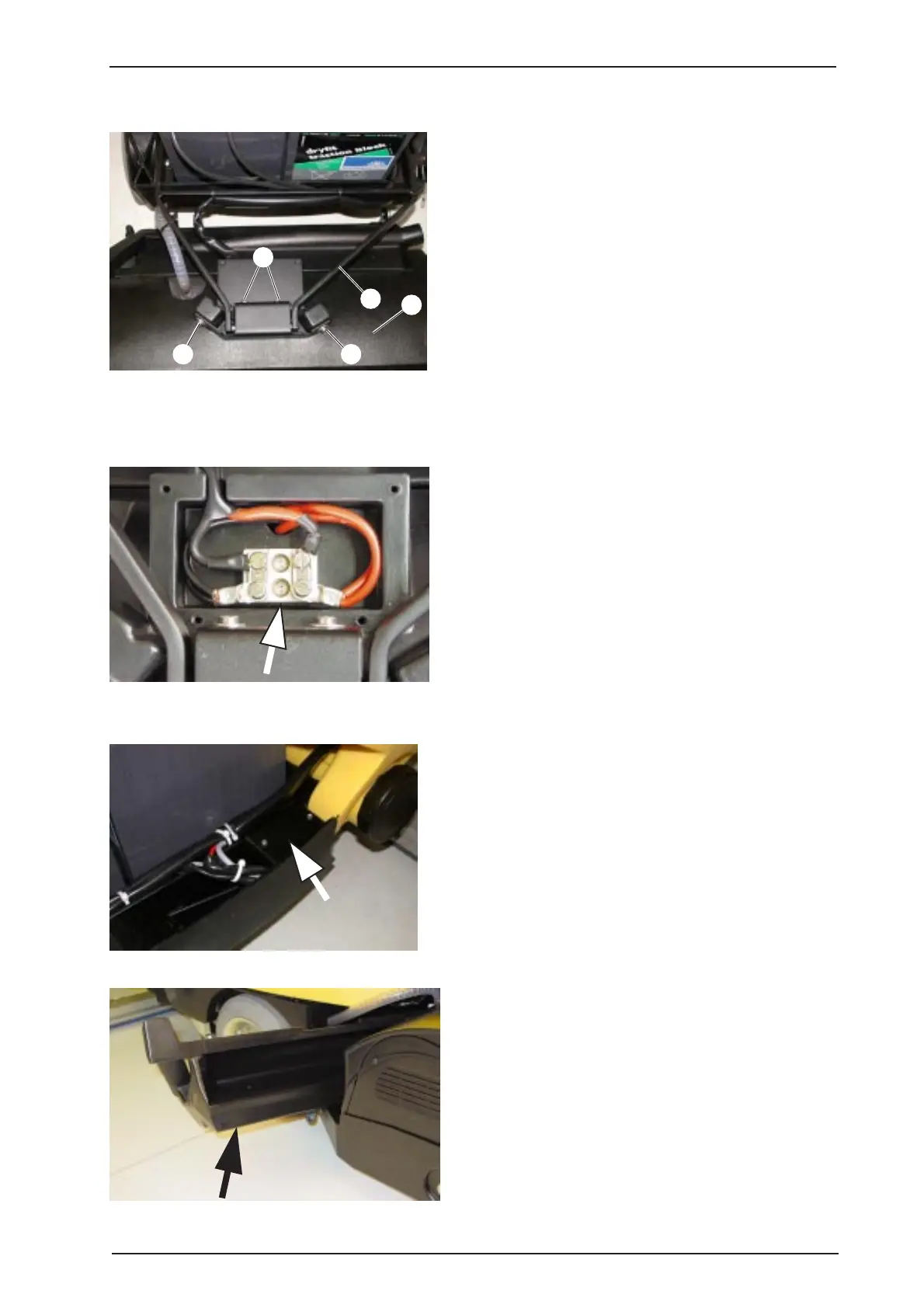

Brush head mounting
1 Brush head (BR version)
2 Supporting frame, brush head
3 Screws (4x), brush head fastening
Coarse dirt container
The coarse dirt container rides loose on the brush
head.
Coarse dirt and impurities are trapped in the
coarse dirt container.
Coarse dirt container
Suspension
The brush head (1) is mounted on the supporting
frame (2) and held in place with four srews (3).
1
2
3
3 3
Terminal strip EXT-X1
The terminal strip EXT-X1 is located next to the
batteries at the left side. It is mounted on a metal
plate and inserted in the chasis. The traction motor
M3, the brush head micro switch S7 and the water
pump M4 (option) are connected there.
