BR/BD 55/60 WP Machine functions
Service Information International 02.2003
Battery

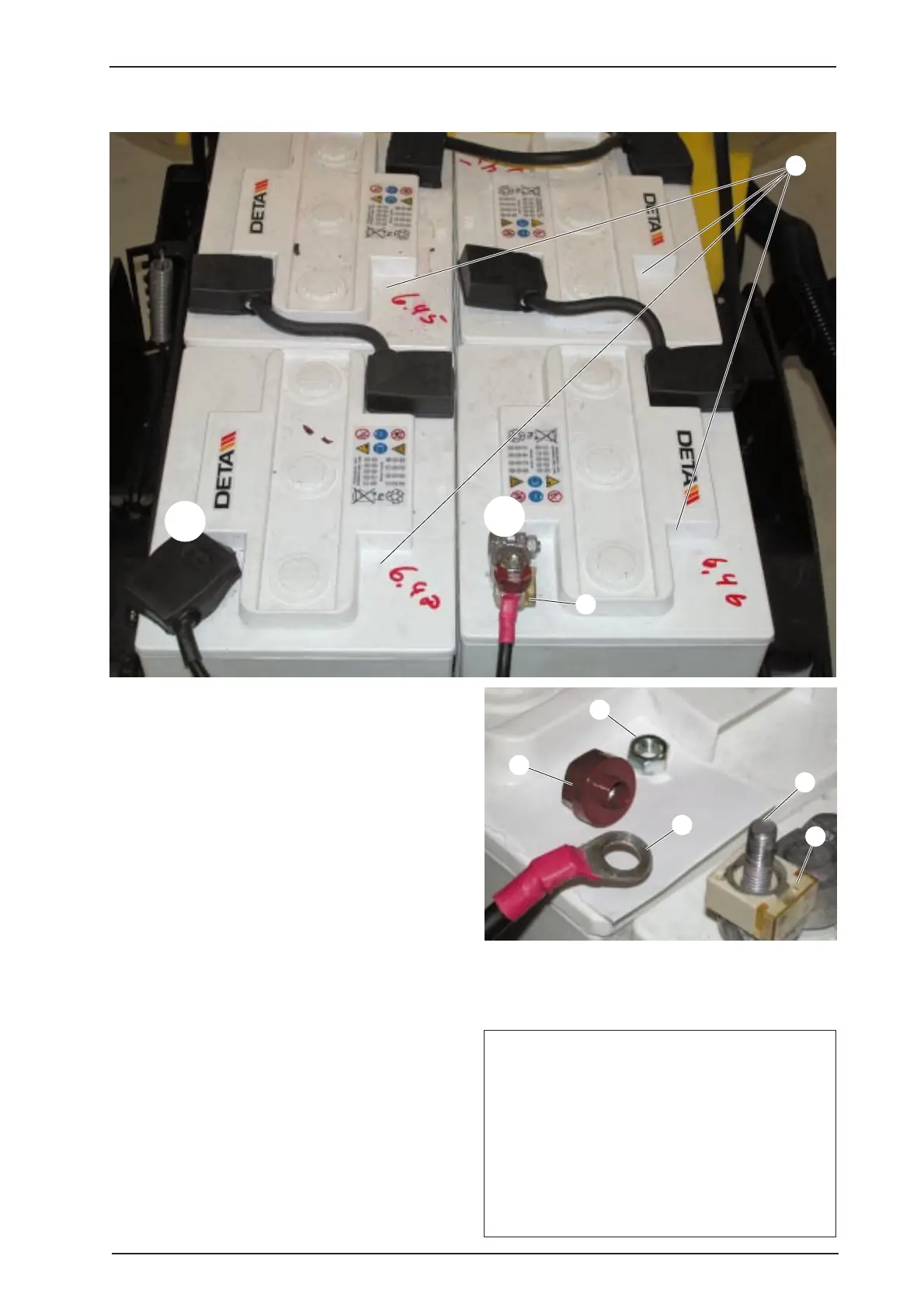

1 Battery G1 (4 x 6 volt = 24 volt)
2 Fuse, battery (F1)
3 Positive battery post
4 Wire connector
5 Insulating nut
6 Lock nut
Note
The insulating nut (5) must be fitted in such
a way that the lower shoulder fits exactly in
the hole of the wire connector (4). If fitted
without sufficient care, this shoulder breaks
off so that the main fuse F1 (2) is bridged
and thus out of use. Tighten the insulating
nut (5) with a wrench hand-tight and then
lock with the lock nut (6).
1
2
–
+
2
3
4
6
5
