• Insert the parking device (G4) on the lower
extension tube until it locks into place in the
aperture (G2) (see Figure 4).

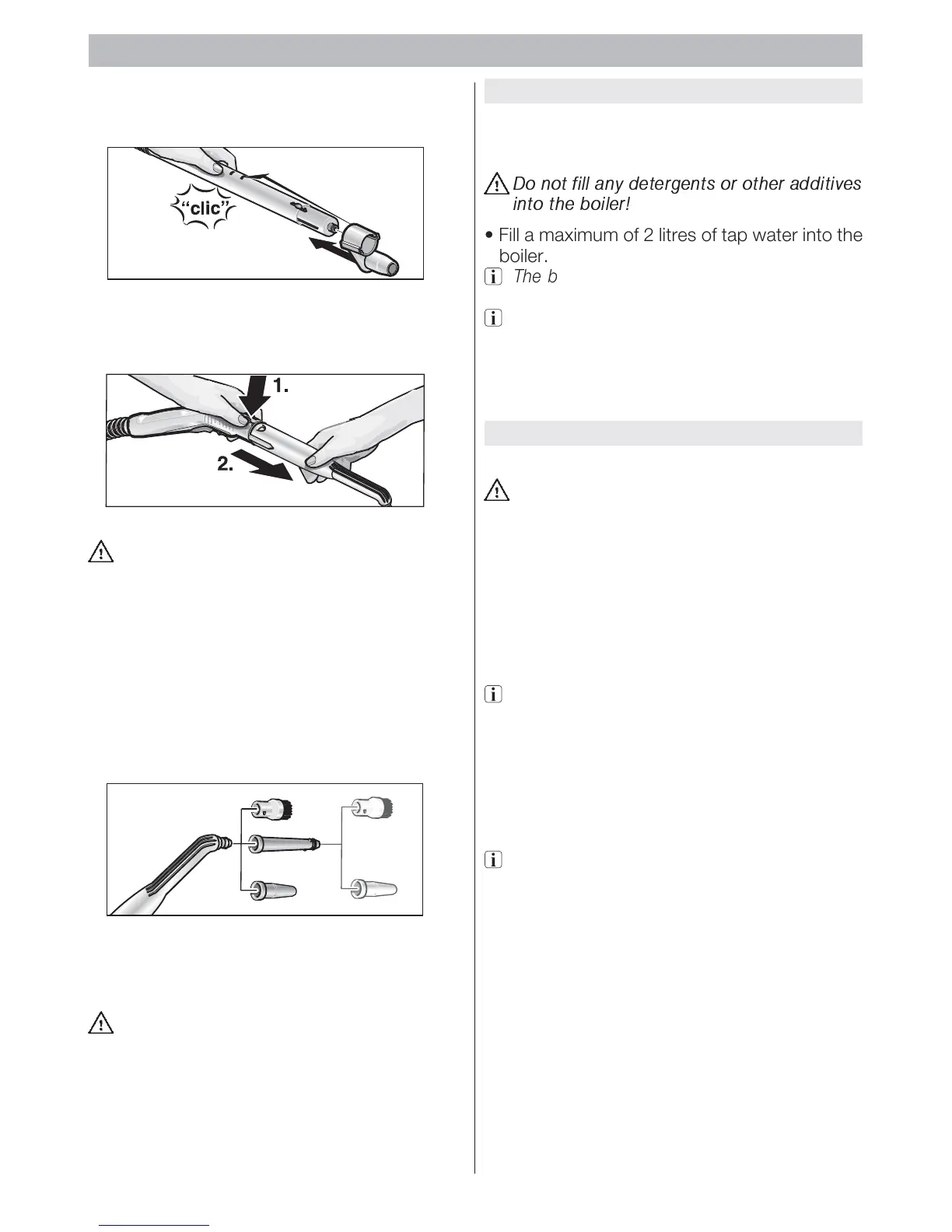

Figure 4: Attaching the parking devices
• To detach the accessory parts, press the
unlocking button (C2 or G3), and pull the items
apart (see Figure 5).
Figure 5: Detaching the accessory parts
Hot water may drip out of the accessory parts while
you are detaching them! Never detach the
accessory parts while steam is being emitted –
dangerof scalds!
• To increase the cleaning performance when
working with the detail nozzle (D1), you may
use it with the extension (D2), the round brush
(D3), or the power nozzle (D4) (see Figure 6).
Line up both grooves of the attachment with
the pins of the detail nozzle. Turn the
attachment clockwise until it locks into place.
Figure 6: Attachments for the detail nozzle
• To detach the attachment from the detail
nozzle, turn it counter-clockwise, and then pull
the components apart.
Hot water may drip out of the accessory parts
while you are detaching them! Never detach the
accessory parts while steam is being emitted –
danger of scalds!
Filling the Boiler with Water
• Unscrew the safety lock (A3) of the appliance.
• Pour any water out of the boiler.
Do not fill any detergents or other additives
into the boiler!
• Fill a maximum of 2 litres of tap water into the
boiler.
The boiler can be filled up to 2 cm below the
edge of the filler neck.
You can cut down the heating-up time by using
warm water.
• Screw the safety lock (A3) back onto the
appliance.
Turning on the Appliance
• Connect the mains plug to a wall socket.
Do not turn on the appliance if there is no water
in the boiler. Otherwise, the appliance may
overheat. For reasons of safety, the appliance
automatically turns off the heating, the red low-
water indicator lamp (B5) lights up. Turn the
appliance off and fill the boiler with water to ensure
it is ready to work again (see “Refilling Water”).
• Turn the appliance on using the switch (A4).
The heating indicator lamp (B3) must light up.
The full heating performance is only available if
the modular accessory plug (C6) is connected to
the appliance during the heating-up period.
• Wait until the indicator lamp (B4) lights up.
Now, the steam cleaner is ready to work.
• Please make sure that the lock (C3) on the
steam gun has been released.
If you push the lock (C3) backwards, the steam
switch (C4) cannot be actuated (child-proof lock).
If you push the lock forwards, the steam switch
can be actuated.
• If you actuate the steam switch (C4), steam is
emitted. Direct the first burst of steam of the
steam gun (C1) at a separate piece of cloth
until the steam is emitted evenly.
• The heating of the steam cleaner is turned on in
regular intervals during the operation of the
appliance in order to maintain the pressure in the
boiler at a constant level. When the heating is turned
on, the yellow indicator lamp (B3) lights up.
3. Operation

Kärcher SC 1502 Specifications

Power

voltage	220 - 240 V
voltage in the handle	24 V
heating output	2300 W

Performance

max operating pressure	4.0 bar
admissible pressure	5.7 bar
max steam quantity	82 g/min

Capacity

max water capacity	2.0 l
boiler capacity	2.4 l
heating-up time for 1 l water	6 min/l

Weight and Dimensions

weight without accessories	7 kg
width	335 mm
length	425 mm
height	380 mm
