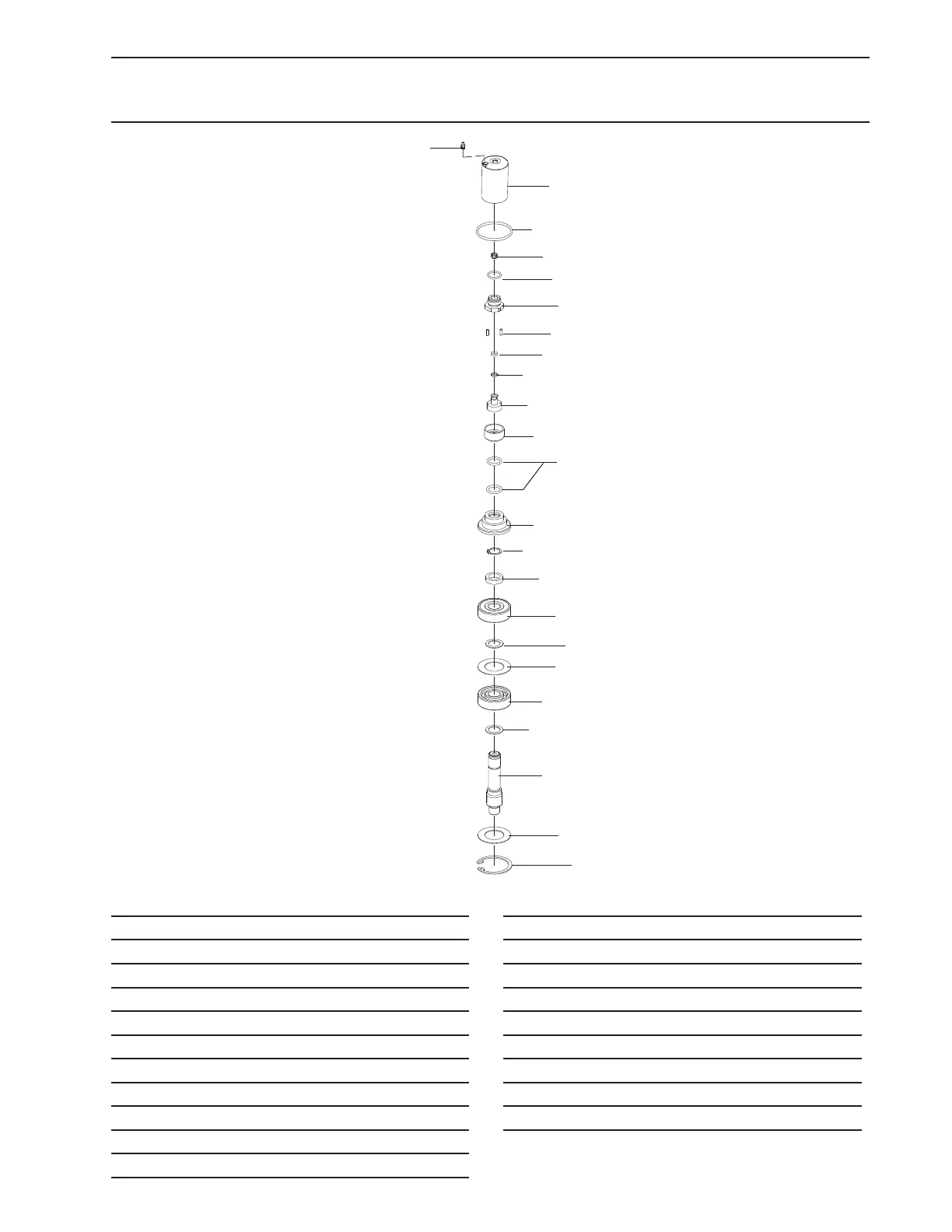

VUE ÉCLATÉE DE L’ASSEMBLAGE DU PIVOT
ET LISTE DES PIÈCES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
17
20
18
21
* Kit, Swivel Seals, A+SC21
8.921-833.0
ART. DESCRIPTION QTÉ
1 GREASE NIPPLE 1
2 SWIVEL HOUSING 1
3 O-RING* 1
4 COMPRESSION SPRING 1
5 O-RING 1
6 BOLT 1
7 PIN 1
8 O-RING* 1
9 BACK UP RING* 1
10 STEM 1
11 BEARING RETAINER, SMALL 1
ART. DESCRIPTION QTÉ
12 O-RING* 1
13 BEARING RETAINER 1
14 SNAP RING 1
15 BEARING BACK-UP RING 1
16 UPPER BEARING 1
17 BEARING SPACER 1
18 WASHER 1
19 LOWER BEARING 1
20 ROTOR SHAFT 1
21 SNAP RING 1
