14
INSTALLATION
CONNECTION POINTS

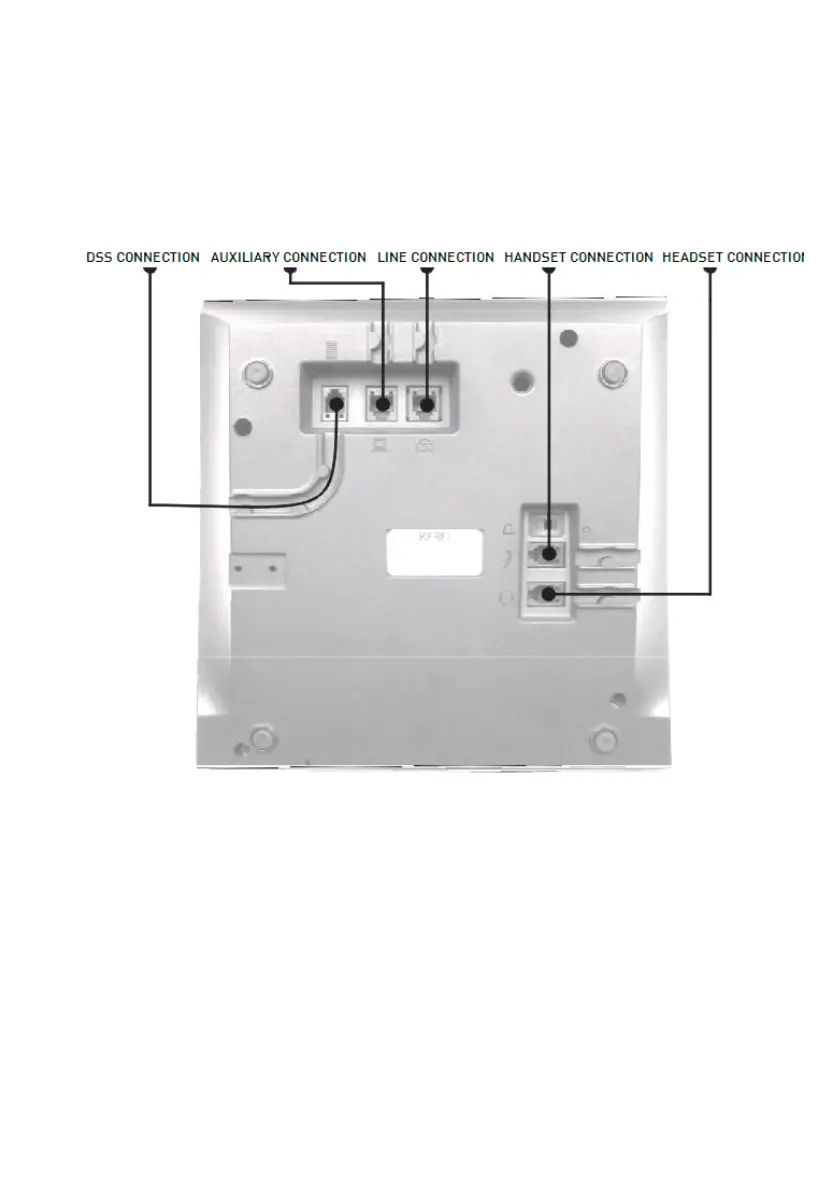

Under ST30, there are five connection points. Connections and their characteristics
have been illustrated below.
DSS CONNECTION: ST30 digital telephone set can be used with DSS25-28 module.
AUXILIARY CONNECTION: The connection point that is required for programming
ST30 over computer.
LINE CONNECTION: Line connection point of ST30.
HANDSET CONNECTION: Handset connection point.
HEADSET CONNECTION: It is employed for connecting headset option to the
telephone. (This connection can not be used, if the bluetooth headset is active.) The
standard headset could be obtained from KAREL.
